複数メタゲノムアセンブリのアセンブリ精度を比較して、種レベルでユニークな配列セットを得る dRep

2019 5/7 インストール追記、6/16 パラメータ追記、6/16  upしたdocker イメージのエラー修正、6/18 link追加

2021 4/29 インストール追記、5/18 インストール追記 (condaによるpplacerの導入)、5/27 タイトル変更、5/29, 6/30 compareコマンド追記

2022/06/14 ツイート追記



 メタゲノム研究により、シーケンシングされ、ドラフト品質ゲノムが解読される微生物ゲノムの数は毎年急速に拡大している。大きなゲノムセットを包括的に比較するための迅速なアルゴリズムが開発されているが、ドラフト品質のゲノムでは正確ではない。ここでは、不正確だがゲノム距離の迅速かつ推定、および、正確だが遅いANIの計算を順番に適用することによってペアワイズゲノム比較の計算時間を短縮するプログラムdRepを提示する。 dRepは、以前に開発されたアルゴリズムに対してベンチマークされた場合、パーフェクトなrecallとprecisionを維持しながら28倍の速度向上を実現する。我々(著者ら)は、timeseriesデータセットからのゲノムリカバリーでdRepを実証する。時系列の各メタゲノムデータセットは別々にアセンブリされ、それらから、dRepを用いて同一のゲノムグループを同定した。この手順による結果は、時系列データのco-­assemblyでリカバリーされたゲノムセットと比べ、はるかにクオリティの高いゲノムリカバリーを達成していた。



drep documentation

https://drep.readthedocs.io/en/latest/overview.html



f:id:kazumaxneo:20180921221120p:plain

マニュアルより転載。



論文のfull textにはアクセスできなかったので分からないが、Prepinrt*1では、よく使われる生後1ヶ月の未熟児の腸内細菌叢 (pubmed)の時系列メタゲノムシーケンシングデータセットSRA link)を用いて、co-aassemblyと、個別アセンブリ+ dRep(によるde-replication)のアセンブリを比較している。Prepirntの実験結果は、個別アセンブリ+ dRepの方がco-assemblyとその後のanvi’o を使ったマニュアルキュレーションより良好な結果を示している(下の図)。

f:id:kazumaxneo:20181028210958j:plain

Prepinrt(*1)のFigure2を転載。



Documentより

Dereplicationとは、ゲノムセットの中から「同じ」ゲノム群を特定し、それぞれのセットから「最適」なゲノムを特定するプロセス。どの程度の類似性があれば「同一」とみなされるか、またどのように「最適」なゲノムを選択するかは、研究に応じて調整することができる。



2022/06/14



インストール

依存

  • python3(drep -> python >=3.6,<3.7.0a0
  • Mash is used to rapidly compare all genomes in a pair-wise manner(紹介
  • MUMmer is used to perform more actuate comparisons between genomes which are shown to be similar with Mash(紹介

Optional

Accessory

  • Centrifuge can be used to perform rough taxonomic assignment of bins(紹介

参考

checkmはpython2.7系のコード(python >= 2.7 and < 3.0)、他はpython3に移行しているので、pyenvでpythonのバージョンを管理しているなら、pyenvで両方をglobalにして使う必要がある。

checkmは、インストール後、データベースをダウンロードしてパスを指定しておく必要がある(checkmの導入)。



#ANIcalculator
wget https://ani.jgi-psf.org/download_files/ANIcalculator_v1.tgz
tar -zxvf ANIcalculator_v1.tgz
cd ANIcalculator_v1
cp ANIcalculator /usr/local/bin/


git clone https://github.com/abadona/qsimscan.git
cd qsimscan/
make -j 8
#パスを通しておく

#centrifuge
git clone https://github.com/infphilo/centrifuge
cd centrifuge
make -j 8
sudo make install prefix=/usr/local

#fastANI(binary)
wget https://github.com/ParBLiSS/FastANI/releases/download/v1.33/fastANI-Linux64-v1.33.zip
unzip
cp fastANI /usr/local/bin/

本体 Github

#Bioconda (link)
conda install -c bioconda drep

#pip
pip install drep

#pip & conda (2021 4/29)
mamba create -n drep -y python=3.7
conda activate drep
pip install drep
pip install checkm-genome

mamba install -c bioconda -y mash
mamba install -c bioconda -y mummer
mamba install -c bioconda -y fastANI
mamba install -c bioconda -y prodigal
mamba install -c bioconda -y pplacer

#インストール確認
dRep bonus output_directory --check_dependencies

dRep bonus output_directory --check_dependencies

Loading work directory

Checking dependencies

mash.................................... all good        (location = /usr/local/bin/mash)

nucmer.................................. all good        (location = /opt/conda/bin/nucmer)

checkm.................................. all good        (location = /usr/local/bin/checkm)

ANIcalculator........................... all good        (location = /gANI/current/ANIcalculator)

prodigal................................ all good        (location = /opt/conda/bin/prodigal)

centrifuge.............................. all good        (location = /usr/local/bin/centrifuge)

(

O.K (*バージョンアップに伴い現在は必要なものが変わってきています)

> dRep

$ dRep



                ...::: dRep v3.2.0 :::...



  Matt Olm. MIT License. Banfield Lab, UC Berkeley. 2017 (last updated 2020)



  See https://drep.readthedocs.io/en/latest/index.html for documentation

  Choose one of the operations below for more detailed help.



  Example: dRep dereplicate -h



  Commands:

    compare            -> Compare and cluster a set of genomes

    dereplicate        -> De-replicate a set of genomes

    check_dependencies -> Check which dependencies are properly installed



> dRep compare -h

$ dRep compare -h





usage: dRep compare [-p PROCESSORS] [-d] [-h] [-g [GENOMES [GENOMES ...]]]

                    [--S_algorithm {ANImf,ANIn,fastANI,goANI,gANI}]

                    [-ms MASH_SKETCH] [--SkipMash] [--SkipSecondary]

                    [--n_PRESET {normal,tight}] [-pa P_ANI] [-sa S_ANI]

                    [-nc COV_THRESH] [-cm {total,larger}]

                    [--clusterAlg {ward,average,complete,median,weighted,centroid,single}]

                    [--multiround_primary_clustering]

                    [--primary_chunksize PRIMARY_CHUNKSIZE]

                    [--greedy_secondary_clustering]

                    [--run_tertiary_clustering] [--warn_dist WARN_DIST]

                    [--warn_sim WARN_SIM] [--warn_aln WARN_ALN]

                    work_directory



positional arguments:

  work_directory        Directory where data and output are stored

                        *** USE THE SAME WORK DIRECTORY FOR ALL DREP OPERATIONS ***



SYSTEM PARAMETERS:

  -p PROCESSORS, --processors PROCESSORS

                        threads (default: 6)

  -d, --debug           make extra debugging output (default: False)

  -h, --help            show this help message and exit



GENOME INPUT:

  -g [GENOMES [GENOMES ...]], --genomes [GENOMES [GENOMES ...]]

                        genomes to filter in .fasta format. Not necessary if

                        Bdb or Wdb already exist. Can also input a text file

                        with paths to genomes, which results in fewer OS

                        issues than wildcard expansion (default: None)



GENOME COMPARISON OPTIONS:

  --S_algorithm {ANImf,ANIn,fastANI,goANI,gANI}

                        Algorithm for secondary clustering comaprisons:

                        fastANI = Kmer-based approach; very fast

                        ANImf   = (DEFAULT) Align whole genomes with nucmer; filter alignment; compare aligned regions

                        ANIn    = Align whole genomes with nucmer; compare aligned regions

                        gANI    = Identify and align ORFs; compare aligned ORFS

                        goANI   = Open source version of gANI; requires nsmimscan

                         (default: ANImf)

  -ms MASH_SKETCH, --MASH_sketch MASH_SKETCH

                        MASH sketch size (default: 1000)

  --SkipMash            Skip MASH clustering, just do secondary clustering on

                        all genomes (default: False)

  --SkipSecondary       Skip secondary clustering, just perform MASH

                        clustering (default: False)

  --n_PRESET {normal,tight}

                        Presets to pass to nucmer

                        tight   = only align highly conserved regions

                        normal  = default ANIn parameters (default: normal)



GENOME CLUSTERING OPTIONS:

  -pa P_ANI, --P_ani P_ANI

                        ANI threshold to form primary (MASH) clusters

                        (default: 0.9)

  -sa S_ANI, --S_ani S_ANI

                        ANI threshold to form secondary clusters (default:

                        0.99)

  -nc COV_THRESH, --cov_thresh COV_THRESH

                        Minmum level of overlap between genomes when doing

                        secondary comparisons (default: 0.1)

  -cm {total,larger}, --coverage_method {total,larger}

                        Method to calculate coverage of an alignment

                        (for ANIn/ANImf only; gANI and fastANI can only do larger method)

                        total   = 2*(aligned length) / (sum of total genome lengths)

                        larger  = max*1

                         (default: larger)

  --clusterAlg {ward,average,complete,median,weighted,centroid,single}

                        Algorithm used to cluster genomes (passed to

                        scipy.cluster.hierarchy.linkage (default: average)



GREEDY CLUSTERING OPTIONS

These decrease RAM use and runtime at the expense of a minor loss in accuracy.

Recommended when clustering 5000+ genomes:

  --multiround_primary_clustering

                        Cluster each primary clunk separately and merge at the

                        end with single linkage. Decreases RAM usage and

                        increases speed, and the cost of a minor loss in

                        precision and the inability to plot

                        primary_clustering_dendrograms. Especially helpful

                        when clustering 5000+ genomes. Will be done with

                        single linkage clustering (default: False)

  --primary_chunksize PRIMARY_CHUNKSIZE

                        Impacts multiround_primary_clustering. If you have

                        more than this many genomes, process them in chunks of

                        this size. (default: 5000)

  --greedy_secondary_clustering

                        Use a heuristic to avoid pair-wise comparisons when

                        doing secondary clustering. Will be done with single

                        linkage clustering. Only works for fastANI S_algorithm

                        option at the moment (default: False)

  --run_tertiary_clustering

                        Run an additional round of clustering on the final

                        genome set. This is especially useful when greedy

                        clustering is performed and/or to handle cases where

                        similar genomes end up in different primary clusters.

                        Only works with dereplicate, not compare. (default:

                        False)



WARNINGS:

  --warn_dist WARN_DIST

                        How far from the threshold to throw cluster warnings

                        (default: 0.25)

  --warn_sim WARN_SIM   Similarity threshold for warnings between dereplicated

                        genomes (default: 0.98)

  --warn_aln WARN_ALN   Minimum aligned fraction for warnings between

                        dereplicated genomes (ANIn) (default: 0.25)



Example: dRep compare output_dir/ -g /path/to/genomes/*.fasta

dRep dereplicate -h



$ dRep dereplicate -h

usage: dRep dereplicate [-p PROCESSORS] [-d] [-h] [-g [GENOMES [GENOMES ...]]]

                        [-l LENGTH] [-comp COMPLETENESS] [-con CONTAMINATION]

                        [--ignoreGenomeQuality] [--genomeInfo GENOMEINFO]

                        [--checkM_method {lineage_wf,taxonomy_wf}]

                        [--set_recursion SET_RECURSION]

                        [--checkm_group_size CHECKM_GROUP_SIZE]

                        [--S_algorithm {goANI,gANI,ANIn,fastANI,ANImf}]

                        [-ms MASH_SKETCH] [--SkipMash] [--SkipSecondary]

                        [--n_PRESET {normal,tight}] [-pa P_ANI] [-sa S_ANI]

                        [-nc COV_THRESH] [-cm {total,larger}]

                        [--clusterAlg {median,centroid,ward,complete,single,average,weighted}]

                        [--multiround_primary_clustering]

                        [--primary_chunksize PRIMARY_CHUNKSIZE]

                        [--greedy_secondary_clustering]

                        [--run_tertiary_clustering]

                        [-comW COMPLETENESS_WEIGHT]

                        [-conW CONTAMINATION_WEIGHT]

                        [-strW STRAIN_HETEROGENEITY_WEIGHT] [-N50W N50_WEIGHT]

                        [-sizeW SIZE_WEIGHT] [-centW CENTRALITY_WEIGHT]

                        [-extraW EXTRA_WEIGHT_TABLE] [--warn_dist WARN_DIST]

                        [--warn_sim WARN_SIM] [--warn_aln WARN_ALN]

                        work_directory



positional arguments:

  work_directory        Directory where data and output are stored

                        *** USE THE SAME WORK DIRECTORY FOR ALL DREP OPERATIONS ***



SYSTEM PARAMETERS:

  -p PROCESSORS, --processors PROCESSORS

                        threads (default: 6)

  -d, --debug           make extra debugging output (default: False)

  -h, --help            show this help message and exit



GENOME INPUT:

  -g [GENOMES [GENOMES ...]], --genomes [GENOMES [GENOMES ...]]

                        genomes to filter in .fasta format. Not necessary if

                        Bdb or Wdb already exist. Can also input a text file

                        with paths to genomes, which results in fewer OS

                        issues than wildcard expansion (default: None)



GENOME FILTERING OPTIONS:

  -l LENGTH, --length LENGTH

                        Minimum genome length (default: 50000)

  -comp COMPLETENESS, --completeness COMPLETENESS

                        Minumum genome completeness (default: 75)

  -con CONTAMINATION, --contamination CONTAMINATION

                        Maximum genome contamination (default: 25)



GENOME QUALITY ASSESSMENT OPTIONS:

  --ignoreGenomeQuality

                        Don't run checkM or do any quality filtering. NOT

                        RECOMMENDED! This is useful for use with

                        bacteriophages or eukaryotes or things where checkM

                        scoring does not work. Will only choose genomes based

                        on length and N50 (default: False)

  --genomeInfo GENOMEINFO

                        location of .csv file containing quality information

                        on the genomes. Must contain: ["genome"(basename of

                        .fasta file of that genome), "completeness"(0-100

                        value for completeness of the genome),

                        "contamination"(0-100 value of the contamination of

                        the genome)] (default: None)

  --checkM_method {lineage_wf,taxonomy_wf}

                        Either lineage_wf (more accurate) or taxonomy_wf

                        (faster) (default: lineage_wf)

  --set_recursion SET_RECURSION

                        Increases the python recursion limit. NOT RECOMMENDED

                        unless checkM is crashing due to recursion issues.

                        Recommended to set to 2000 if needed, but setting this

                        could crash python (default: 0)

  --checkm_group_size CHECKM_GROUP_SIZE

                        The number of genomes passed to checkM at a time.

                        Increasing this increases RAM but makes checkM faster

                        (default: 2000)



GENOME COMPARISON OPTIONS:

  --S_algorithm {goANI,gANI,ANIn,fastANI,ANImf}

                        Algorithm for secondary clustering comaprisons:

                        fastANI = Kmer-based approach; very fast

                        ANImf   = (DEFAULT) Align whole genomes with nucmer; filter alignment; compare aligned regions

                        ANIn    = Align whole genomes with nucmer; compare aligned regions

                        gANI    = Identify and align ORFs; compare aligned ORFS

                        goANI   = Open source version of gANI; requires nsmimscan

                         (default: ANImf)

  -ms MASH_SKETCH, --MASH_sketch MASH_SKETCH

                        MASH sketch size (default: 1000)

  --SkipMash            Skip MASH clustering, just do secondary clustering on

                        all genomes (default: False)

  --SkipSecondary       Skip secondary clustering, just perform MASH

                        clustering (default: False)

  --n_PRESET {normal,tight}

                        Presets to pass to nucmer

                        tight   = only align highly conserved regions

                        normal  = default ANIn parameters (default: normal)



GENOME CLUSTERING OPTIONS:

  -pa P_ANI, --P_ani P_ANI

                        ANI threshold to form primary (MASH) clusters

                        (default: 0.9)

  -sa S_ANI, --S_ani S_ANI

                        ANI threshold to form secondary clusters (default:

                        0.99)

  -nc COV_THRESH, --cov_thresh COV_THRESH

                        Minmum level of overlap between genomes when doing

                        secondary comparisons (default: 0.1)

  -cm {total,larger}, --coverage_method {total,larger}

                        Method to calculate coverage of an alignment

                        (for ANIn/ANImf only; gANI and fastANI can only do larger method)

                        total   = 2*(aligned length) / (sum of total genome lengths)

                        larger  = max*2

                         (default: larger)

  --clusterAlg {median,centroid,ward,complete,single,average,weighted}

                        Algorithm used to cluster genomes (passed to

                        scipy.cluster.hierarchy.linkage (default: average)



GREEDY CLUSTERING OPTIONS

These decrease RAM use and runtime at the expense of a minor loss in accuracy.

Recommended when clustering 5000+ genomes:

  --multiround_primary_clustering

                        Cluster each primary clunk separately and merge at the

                        end with single linkage. Decreases RAM usage and

                        increases speed, and the cost of a minor loss in

                        precision and the inability to plot

                        primary_clustering_dendrograms. Especially helpful

                        when clustering 5000+ genomes. Will be done with

                        single linkage clustering (default: False)

  --primary_chunksize PRIMARY_CHUNKSIZE

                        Impacts multiround_primary_clustering. If you have

                        more than this many genomes, process them in chunks of

                        this size. (default: 5000)

  --greedy_secondary_clustering

                        Use a heuristic to avoid pair-wise comparisons when

                        doing secondary clustering. Will be done with single

                        linkage clustering. Only works for fastANI S_algorithm

                        option at the moment (default: False)

  --run_tertiary_clustering

                        Run an additional round of clustering on the final

                        genome set. This is especially useful when greedy

                        clustering is performed and/or to handle cases where

                        similar genomes end up in different primary clusters.

                        Only works with dereplicate, not compare. (default:

                        False)



SCORING CRITERIA

Based off of the formula:

A*Completeness - B*Contamination + C*(Contamination * (strain_heterogeneity/100)) + D*log(N50) + E*log(size) + F*(centrality - S_ani)



A = completeness_weight; B = contamination_weight; C = strain_heterogeneity_weight; D = N50_weight; E = size_weight; F = cent_weight:

  -comW COMPLETENESS_WEIGHT, --completeness_weight COMPLETENESS_WEIGHT

                        completeness weight (default: 1)

  -conW CONTAMINATION_WEIGHT, --contamination_weight CONTAMINATION_WEIGHT

                        contamination weight (default: 5)

  -strW STRAIN_HETEROGENEITY_WEIGHT, --strain_heterogeneity_weight STRAIN_HETEROGENEITY_WEIGHT

                        strain heterogeneity weight (default: 1)

  -N50W N50_WEIGHT, --N50_weight N50_WEIGHT

                        weight of log(genome N50) (default: 0.5)

  -sizeW SIZE_WEIGHT, --size_weight SIZE_WEIGHT

                        weight of log(genome size) (default: 0)

  -centW CENTRALITY_WEIGHT, --centrality_weight CENTRALITY_WEIGHT

                        Weight of (centrality - S_ani) (default: 1)

  -extraW EXTRA_WEIGHT_TABLE, --extra_weight_table EXTRA_WEIGHT_TABLE

                        Path to a tab-separated file with two-columns, no

                        headers, listing genome and extra score to apply to

                        that genome (default: None)



WARNINGS:

  --warn_dist WARN_DIST

                        How far from the threshold to throw cluster warnings

                        (default: 0.25)

  --warn_sim WARN_SIM   Similarity threshold for warnings between dereplicated

                        genomes (default: 0.98)

  --warn_aln WARN_ALN   Minimum aligned fraction for warnings between

                        dereplicated genomes (ANIn) (default: 0.25)



Example: dRep dereplicate output_dir/ -g /path/to/genomes/*.fasta

dRep compare -h

$ dRep compare -h

usage: dRep compare [-p PROCESSORS] [-d] [-h] [-g [GENOMES [GENOMES ...]]]

                    [--S_algorithm {gANI,fastANI,ANImf,ANIn,goANI}]

                    [-ms MASH_SKETCH] [--SkipMash] [--SkipSecondary]

                    [--n_PRESET {normal,tight}] [-pa P_ANI] [-sa S_ANI]

                    [-nc COV_THRESH] [-cm {total,larger}]

                    [--clusterAlg {ward,median,average,single,weighted,complete,centroid}]

                    [--multiround_primary_clustering]

                    [--primary_chunksize PRIMARY_CHUNKSIZE]

                    [--greedy_secondary_clustering]

                    [--run_tertiary_clustering] [--warn_dist WARN_DIST]

                    [--warn_sim WARN_SIM] [--warn_aln WARN_ALN]

                    work_directory



positional arguments:

  work_directory        Directory where data and output are stored

                        *** USE THE SAME WORK DIRECTORY FOR ALL DREP OPERATIONS ***



SYSTEM PARAMETERS:

  -p PROCESSORS, --processors PROCESSORS

                        threads (default: 6)

  -d, --debug           make extra debugging output (default: False)

  -h, --help            show this help message and exit



GENOME INPUT:

  -g [GENOMES [GENOMES ...]], --genomes [GENOMES [GENOMES ...]]

                        genomes to filter in .fasta format. Not necessary if

                        Bdb or Wdb already exist. Can also input a text file

                        with paths to genomes, which results in fewer OS

                        issues than wildcard expansion (default: None)



GENOME COMPARISON OPTIONS:

  --S_algorithm {gANI,fastANI,ANImf,ANIn,goANI}

                        Algorithm for secondary clustering comaprisons:

                        fastANI = Kmer-based approach; very fast

                        ANImf   = (DEFAULT) Align whole genomes with nucmer; filter alignment; compare aligned regions

                        ANIn    = Align whole genomes with nucmer; compare aligned regions

                        gANI    = Identify and align ORFs; compare aligned ORFS

                        goANI   = Open source version of gANI; requires nsmimscan

                         (default: ANImf)

  -ms MASH_SKETCH, --MASH_sketch MASH_SKETCH

                        MASH sketch size (default: 1000)

  --SkipMash            Skip MASH clustering, just do secondary clustering on

                        all genomes (default: False)

  --SkipSecondary       Skip secondary clustering, just perform MASH

                        clustering (default: False)

  --n_PRESET {normal,tight}

                        Presets to pass to nucmer

                        tight   = only align highly conserved regions

                        normal  = default ANIn parameters (default: normal)



GENOME CLUSTERING OPTIONS:

  -pa P_ANI, --P_ani P_ANI

                        ANI threshold to form primary (MASH) clusters

                        (default: 0.9)

  -sa S_ANI, --S_ani S_ANI

                        ANI threshold to form secondary clusters (default:

                        0.99)

  -nc COV_THRESH, --cov_thresh COV_THRESH

                        Minmum level of overlap between genomes when doing

                        secondary comparisons (default: 0.1)

  -cm {total,larger}, --coverage_method {total,larger}

                        Method to calculate coverage of an alignment

                        (for ANIn/ANImf only; gANI and fastANI can only do larger method)

                        total   = 2*(aligned length) / (sum of total genome lengths)

                        larger  = max*3

                         (default: larger)

  --clusterAlg {ward,median,average,single,weighted,complete,centroid}

                        Algorithm used to cluster genomes (passed to

                        scipy.cluster.hierarchy.linkage (default: average)



GREEDY CLUSTERING OPTIONS

These decrease RAM use and runtime at the expense of a minor loss in accuracy.

Recommended when clustering 5000+ genomes:

  --multiround_primary_clustering

                        Cluster each primary clunk separately and merge at the

                        end with single linkage. Decreases RAM usage and

                        increases speed, and the cost of a minor loss in

                        precision and the inability to plot

                        primary_clustering_dendrograms. Especially helpful

                        when clustering 5000+ genomes. Will be done with

                        single linkage clustering (default: False)

  --primary_chunksize PRIMARY_CHUNKSIZE

                        Impacts multiround_primary_clustering. If you have

                        more than this many genomes, process them in chunks of

                        this size. (default: 5000)

  --greedy_secondary_clustering

                        Use a heuristic to avoid pair-wise comparisons when

                        doing secondary clustering. Will be done with single

                        linkage clustering. Only works for fastANI S_algorithm

                        option at the moment (default: False)

  --run_tertiary_clustering

                        Run an additional round of clustering on the final

                        genome set. This is especially useful when greedy

                        clustering is performed and/or to handle cases where

                        similar genomes end up in different primary clusters.

                        Only works with dereplicate, not compare. (default:

                        False)



WARNINGS:

  --warn_dist WARN_DIST

                        How far from the threshold to throw cluster warnings

                        (default: 0.25)

  --warn_sim WARN_SIM   Similarity threshold for warnings between dereplicated

                        genomes (default: 0.98)

  --warn_aln WARN_ALN   Minimum aligned fraction for warnings between

                        dereplicated genomes (ANIn) (default: 0.25)



Example: dRep compare output_dir/ -g /path/to/genomes/*.fasta

導入に手間取ったので、環境構築した後のイメージをpdocker hubにpushしておきます。pullする場合、別のツールのテストもしていたので、少しイメージが大きくなっています。ご注意下さい(注意;古くなっています)。

追記

checkmのstepでエラーが出たのでBug fixしてpushし直しました。

docker pull kazumax/drep

#カレントパスと/shareを共有して立ち上げる。"--rm"をつけるとexitで廃棄
docker run --rm -itv $PWD:/data/ kazumax/drep

#usage:
source ${HOME}/.bash_profile
#check dependency
dRep bonus output_directory --check_dependencies

#2022/03/06 v3.0
docker pull kazumax/drep:3.0
source ${HOME}/.bashrc
dRep check_dependencies



実行方法

1、ゲノムの比較

dRep compare output_directory -g RefSeq/*.fasta

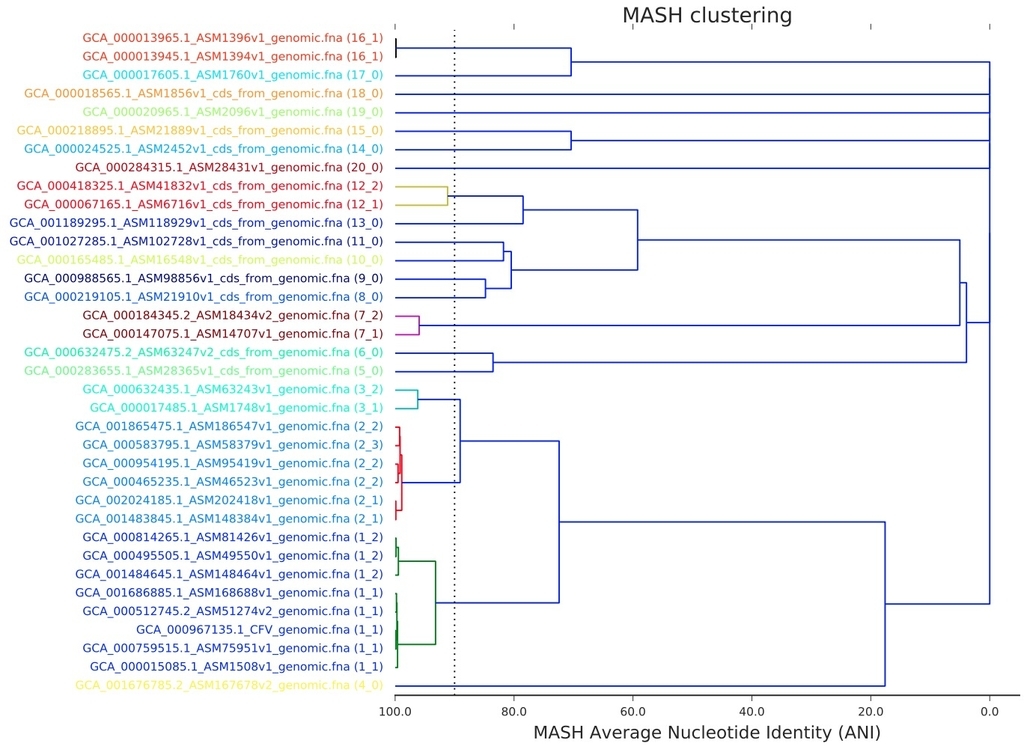

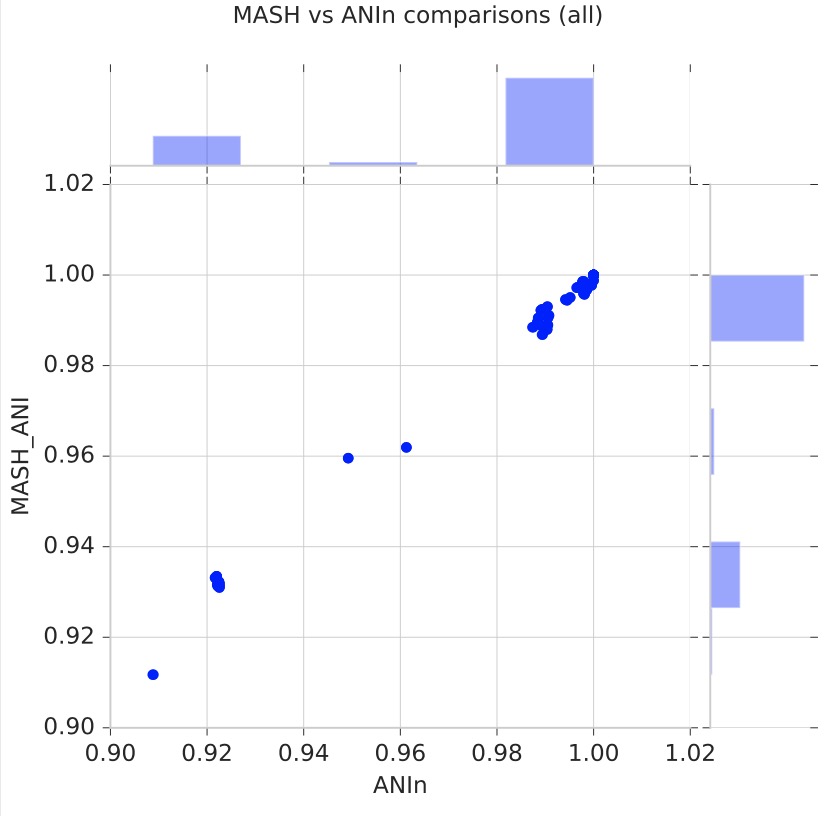

結果は可視化される。



RefSeqのゲノム(ダウンロード)をいくつか選んで比較してみた。

出力ディレクト

f:id:kazumaxneo:20181028150243j:plain

f:id:kazumaxneo:20181028150232j:plain

f:id:kazumaxneo:20181028150247j:plain

f:id:kazumaxneo:20181028150242j:plain

出力の解説リンク





2、de-replication

dRep dereplicate outout_directory -g path/to/genomes/*.fasta \
-p 12 -l 50000
  • -p     threads (default: 6)
  • -l      Minimum genome length (default: 50000)
  • -g     genomes to cluster in .fasta format (default: None)
  • --checkM_method {taxonomy_wf, lineage_wf} Either lineage_wf (more accurate) or taxonomy_wf (faster) (default: lineage_wf)

結果は可視化される。

出力ディレクト

f:id:kazumaxneo:20181028150243j:plain

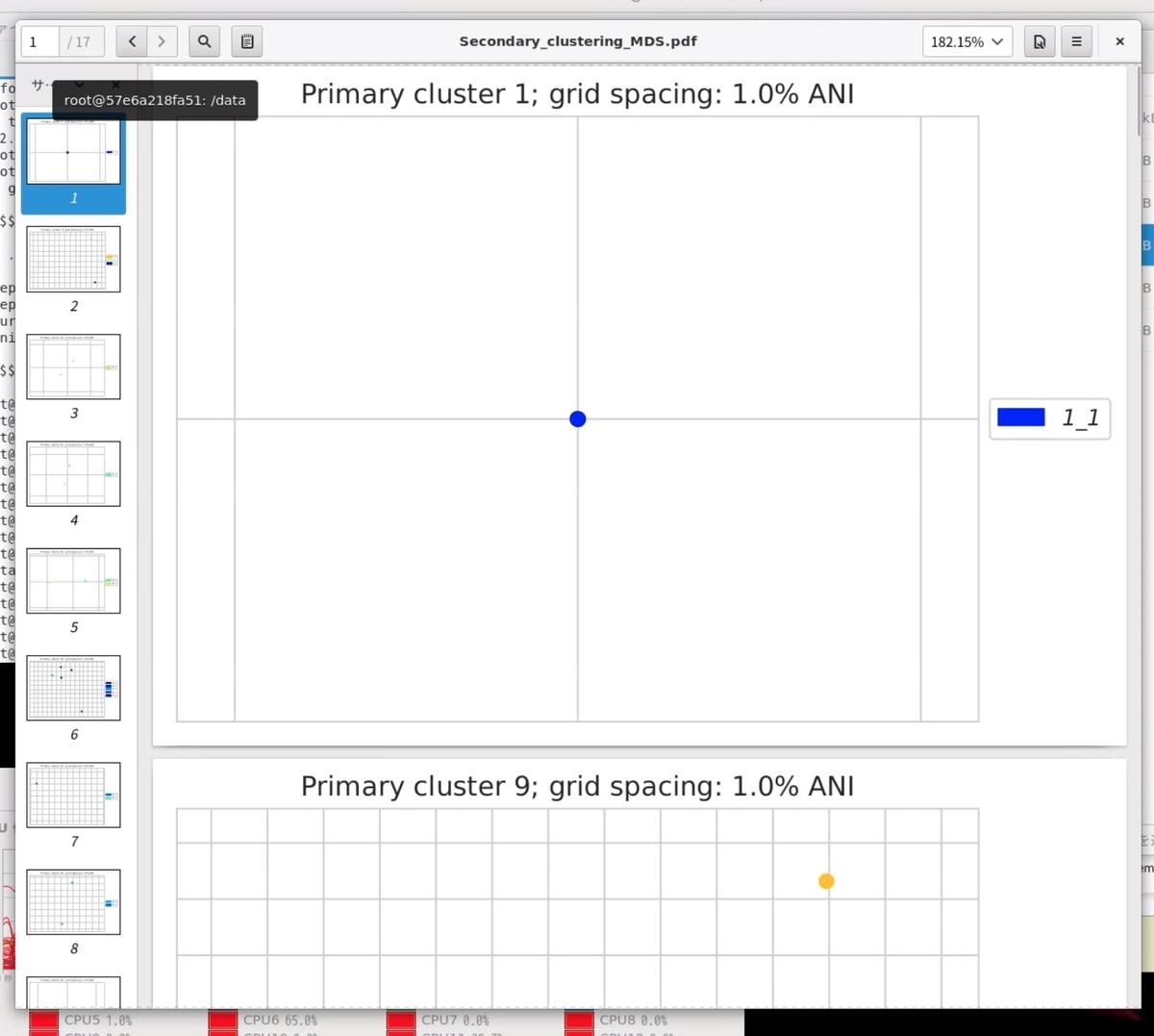

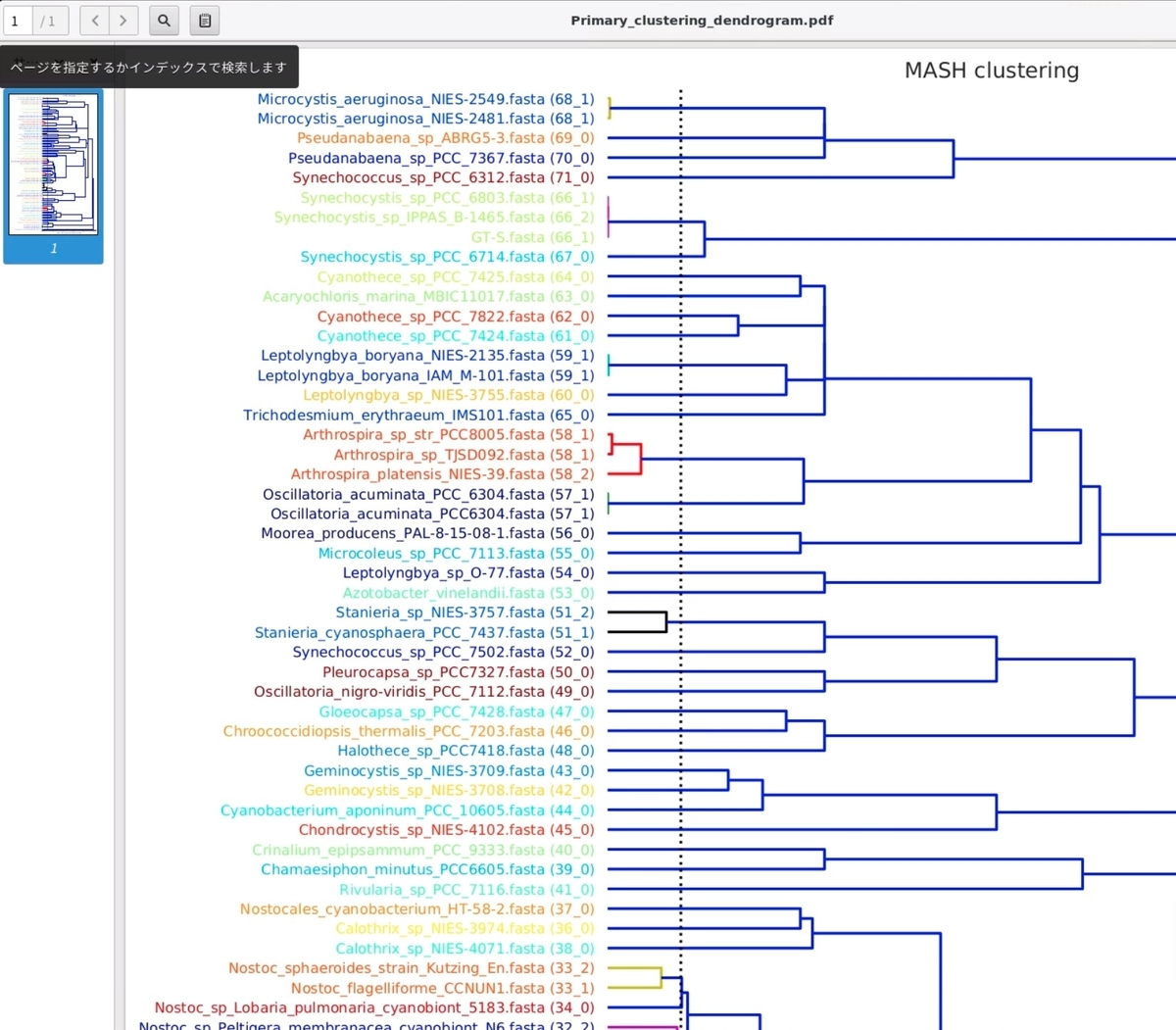

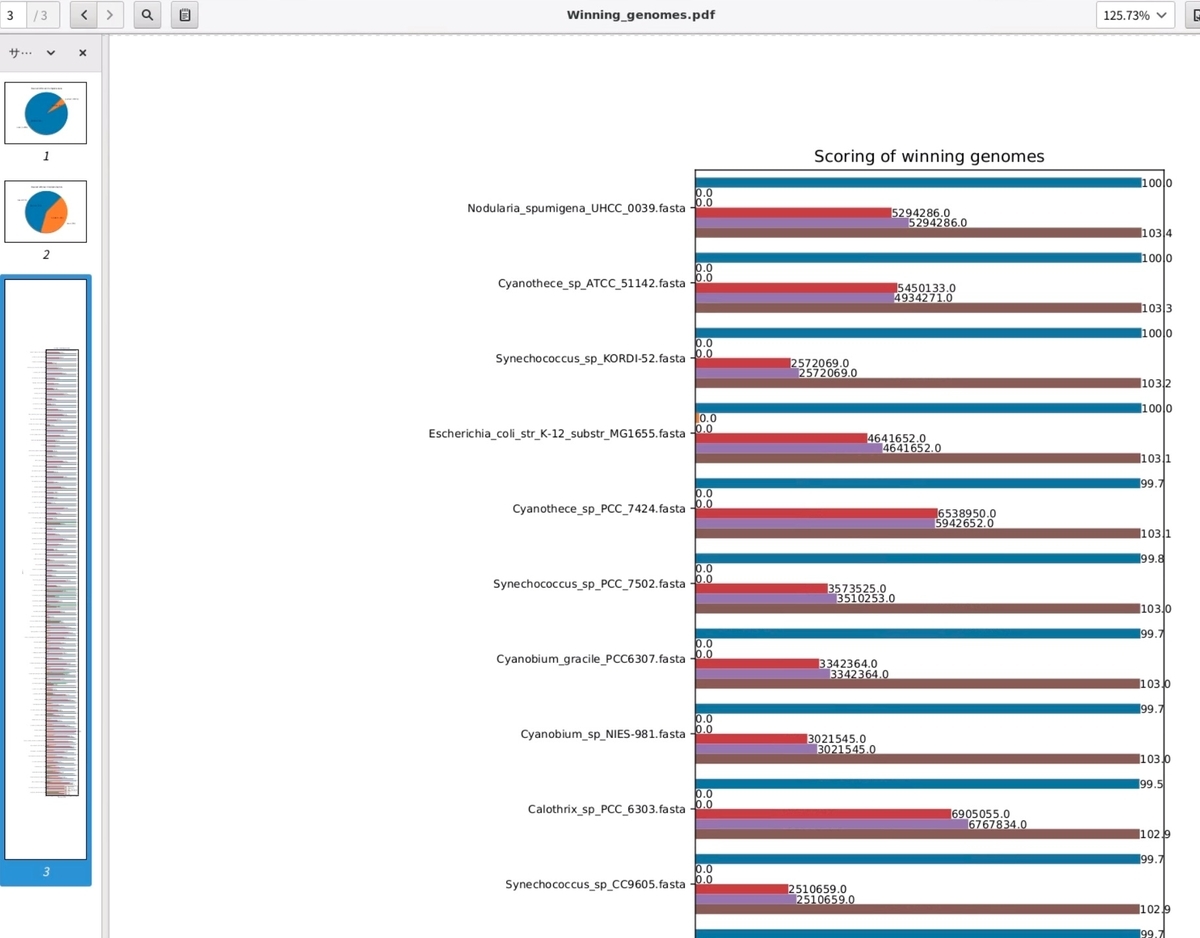

figures

f:id:kazumaxneo:20190617185427j:plain

f:id:kazumaxneo:20190617185452j:plain

f:id:kazumaxneo:20190617185459j:plain

f:id:kazumaxneo:20190617185513j:plain


出力の詳細はmanual参照。

2021 5/18

1次クラスタリングでは90%でラフにクラスタリング(図の黒い破線)、2次クラスタリングではgANIを使って95%閾値でde-replication(mOTUsの取得)。5000bp以上の配列を対象とする。

dRep dereplicate outdir -g maxbin2/*fa \
-p 40 -l 5000 -pa 0.90 -sa 0.95 -comp 75 -con 25 -nc 0.1
  • -pa   ANI threshold to form primary (MASH) clusters  (default: 0.9)
  • -sa    ANI threshold to form secondary clusters (default: 0.99)
  • -nc    Minmum level of overlap between genomes when doing secondary comparisons (default: 0.1)
  • -l     Minimum genome length (default: 50000)
  • -comp   Minumum genome completeness (default: 75)
  • -con   Maximum genome contamination (default: 25)



compareコマンドを使ってbinned.fastaと既知ゲノム配列を比較する。

dRep compare outdir -g genome/*fna



メモ

  • 例えば、AがBに似ていて、BがCに似ていて、AとCが似ていないこのようなケースが存在すると仮定すると、 ANIがしきい値より大きいゲノムペアが異なるクラスタに入ってしまう可能性があるとされる(link)。

   => シングルモード(-clusterAlg single)で実行する

  • バクテリア以外の存在(ファージなど)が予想されて、checkMで評価できない場合、 -ignoreGenomeQualityというフラグを立てて、品質フィルタリングやゲノム選択時の完全性・汚染性の使用をオフにすることができる。
  • Mashは不完全なゲノム間の距離を過小評価し 、同一種のゲノムを複数のゲノムビンに分割してしまうことがあるため、第一段階のall versus all比較ではMashを使い、それから、精度が高い方法で2回目のクラスタリングを行う。



de-replicationは例えば以下の有名な論文で使用されています。パラメータも記載されています。

https://www.nature.com/articles/s41467-018-03317-6



こちらのプレプリントにもパラメータ例があります。

https://www.biorxiv.org/content/10.1101/2021.04.02.438222v1.full.pdf



Paleofecesをターゲットにした

Reconstruction of ancient microbial genomes from the human gut

https://www.nature.com/articles/s41586-021-03532-0

の論文でも使用されています。

引用

dRep: a tool for fast and accurate genomic comparisons that enables improved genome recovery from metagenomes through de-replicatio
Olm MR, Brown CT, Brooks B, Banfield JF

ISME J. 2017 Dec;11(12):2864-2868



*1

Preprint

https://www.biorxiv.org/content/biorxiv/early/2017/02/13/108142.full.pdf



関連ツール

BMScan

Mash

Checkm

Centrifuge

 fastANI





 2022/02/28






*1:aligned length / genome 1), (aligned_length / genome2

*2:aligned length / genome 1), (aligned_length / genome2

*3:aligned length / genome 1), (aligned_length / genome2
