ハプロタイプフェージングを行う whatshap

 2019 3/18 インストールの流れ修正

2019 3/26 誤字修正

2019 11/8 タイトル修正



  ヒトゲノムは二倍体であり、すなわち、その常染色体の各々は2コピーである。これらの親のコピーは、異なる一塩基多型SNPs)の影響を受ける。変異がどちらの染色体由来かアサインすることは進化遺伝学の助けになり、例えばpopulation研究(論文より The 1000 Genomes Project Consortium、2010; Francioli et al、2014)における選択的な圧力と亜集団の特定に関係し、おそらく病気の原因となるSNPsを相互に結びつける(Hartl and Clark、2007)。アサインするプロセスはphasing(以後フェージング)と呼ばれ、結果のSNPsグループはハプロタイプと呼ばれる。国際的に協調した取り組みにより、対応する下流分析に役立つ多様な集団のハプロタイプの参照パネルが作成された(International HapMap Consortium、2007、2010)。
 バリアントのフェージングには2つの主要なアプローチがある。第1のアプローチは、SNPsのアレルのそれらの接合体のステータスつきリストとなる遺伝子型に依存する。ホモ接合の対立遺伝子は相同染色体両コピー上に現れ、明らかに両方のハプロタイプに適用されるが、ヘテロ接合対立遺伝子はコピーのうちの1つにのみ現れ、したがって2つのグループに分けられなければならない。 よってm個のヘテロ接合のSNPsアレルがあると、2のm乗通りのハプロタイプの可能性が生じる。対応する手法は、通常は統計手法になり、既存の参照パネルを統合する。根底にある仮定は、計算されるハプロタイプは、減数分裂中に組換えから生じる基準ハプロタイプブロックのモザイクであるということである。観察された遺伝子型が与えられると、統計的に最も可能性の高いモザイクが出力される。最も一般的なアプローチは、潜在変数モデリング(Howie et al、2009; Li et al、2010; Scheet and Stephens、2006)に基づいている。他のアプローチでは、マルコフ連鎖モンテカルロ法を用いる(Menelaou and Marchini、2013)。

  他のアプローチは、シーケンシングデータを直接読み込む。このようなアプローチは、実質的に同一の染色体コピーからのリードを集め、 haplotype assembly approachesと呼ばれる。原則に従えば、目標は、2つのハプロタイプを計算して、最小限の量の配列エラーを訂正してすべてのリードを割り当てることである。このような処方の中で、最近の注目の大半は最小誤差訂正(MEC)問題が生じている。セクション2で正式に定義するMECの問題は、リードを競合のない2つのハプロタイプに配置するために、配列決定されたヌクレオチドに対して行われる補正の最小数を見つけることにある。 MECの主な利点は、phredスケールのエラー確率に対処するために、重み付きバージョン(wMEC)に容易に適合させることができることである。このようなphredベースのエラースキームは、特に将来の技術によって生成されたロングリードを処理するためには不可欠である。 wMEC問題の最適解は、修正されるべきエラーと比較した最尤シナリオに変換される。
 ますます増大するリード長および減少するシーケンス決定コストのテラスケールシーケンスプロジェクト(例えば、Boomsma et al、2013; The 1000 Genomes Project Consortium、2010)は、明らかにリードデータから直接フェーズを合わせることが望ましい。しかし、(i)大部分のNGSリードは、いわゆるvariant desertsをブリッジするにはまだ短すぎるため、統計的アプローチが依然として選択される。しかし、連続的なリードベースのフェージングには、隣接するヘテロ接合のSNPsアレルが全てカバーされないといけない。 (ii)MECの問題はNP困難であり、他のすべての同様の問題の定式化もそうである。
 MEC(Chen et al、2013; He et al。、2010)の最も進んだ既存のアルゴリズムソリューションは、皮肉なことにvariant desertsから正確に利益を得ていることが多い。しかし、リードベースのアプローチの主な動機は、可能な限り多くのバリアントをカバーするロングリードを処理することで、すべてのバリアントをブリッジすることである。したがって、現在のハプロタイプアセンブリの認識は、それが克服するのが難しい理論上の限界の根底にあることが多い。
 この論文では、カバレッジ、つまりSNPs位置をカバーするフラグメントの数が唯一のパラメータである、wMECに対する固定パラメータの扱いやすい(FPT)アプローチであるWhatsHapを紹介する。よって著者らのアプローチの実行時間は、SNPs数の多項式(実際には線形)である。 wMECのための線形ランタイムソリューションは、将来のシークエンシング技術が数万塩基対(bp)のリードを生成し、それらが高い配列決定エラー率を被る可能性が高いことの両方に対処する。慎重に設計されたアルゴリズムを実装することで、標準的なワークステーション上で最大20時間のオーダーで最大カバレッジの全ゲノムデータセットを処理することができる。カバレッジの高いデータセットでは、合理的な選択肢を選択するテクニックを提供する。 WhatsHapはさまざまな面でさまざまな長さのシミュレートされたリードに基づいて比較され、評価された。これらのすべてが真のゲノムに由来する(Levy et al、2007)。そしてハプロタイプアセンブリでのフェージングのエラー率を低くするには10〜15のカバレッジで十分であることを示す。最先端のハプロタイプアセンブリアプローチと比較して、WhatsHapは、特に10〜15カバレッジのデータセット、すなわち重要なカバレッジレートに優れたランタイムを持つことを実証する。 WhatsHapによって計算されたハプロタイプはわずかな誤差しかないことが証明されている。統計的なフェージングアプローチと比較してもエラー率がかなり有利であることは注目に値するかもしれないが、依然として現実的な最先端技術を構成している。





マニュアル

https://whatshap.readthedocs.io/en/latest/guide.html

イルミナ、Nanopore、pacbioいずれのデータセットでも機能する。



インストール

Bitbucket

https://bitbucket.org/whatshap/whatshap

condaによるインストールと、pipによるインストールがサポートされている。

#Anacondaを使っているなら
conda install -c bioconda -c conda-forge whatshap

>whatshap -h

$ whatshap -h

usage: whatshap [-h] [--version] [--debug]

                {phase,stats,compare,hapcut2vcf,unphase,haplotag,genotype} ...



positional arguments:

  {phase,stats,compare,hapcut2vcf,unphase,haplotag,genotype}

    phase               Phase variants in a VCF with the WhatsHap algorithm

    stats               Print phasing statistics of a single VCF file

    compare             Compare two or more phasings

    hapcut2vcf          Convert hapCUT output format to VCF

    unphase             Remove phasing information from a VCF file

    haplotag            Tag reads by haplotype

    genotype            Genotype variants



optional arguments:

  -h, --help            show this help message and exit

  --version             show program's version number and exit

  --debug               Print debug messages

whatshap phase

$ whatshap phase

usage: whatshap phase [-h] [-o OUTPUT] [--reference FASTA] [--tag {PS,HP}]

                      [--output-read-list FILE]

                      [--algorithm {whatshap,hapchat}] [--merge-reads]

                      [--max-coverage MAXCOV] [--mapping-quality QUAL]

                      [--indels] [--ignore-read-groups] [--sample SAMPLE]

                      [--chromosome CHROMOSOME]

                      [--error-rate READ_MERGING_ERROR_RATE]

                      [--maximum-error-rate READ_MERGING_MAX_ERROR_RATE]

                      [--threshold READ_MERGING_POSITIVE_THRESHOLD]

                      [--negative-threshold READ_MERGING_NEGATIVE_THRESHOLD]

                      [--full-genotyping] [--distrust-genotypes]

                      [--include-homozygous] [--default-gq DEFAULT_GQ]

                      [--gl-regularizer GL_REGULARIZER]

                      [--changed-genotype-list FILE] [--ped PED/FAM]

                      [--recombination-list FILE] [--recombrate RECOMBRATE]

                      [--genmap FILE] [--no-genetic-haplotyping]

                      [--use-ped-samples]

                      VCF [PHASEINPUT [PHASEINPUT ...]]



Phase variants in a VCF with the WhatsHap algorithm



Read a VCF and one or more files with phase information (BAM/CRAM or VCF phased

blocks) and phase the variants. The phased VCF is written to standard output.



positional arguments:

  VCF                   VCF file with variants to be phased (can be gzip-

                        compressed)

  PHASEINPUT            BAM, CRAM or VCF file(s) with phase information,

                        either through sequencing reads (BAM/CRAM) or through

                        phased blocks (VCF)



optional arguments:

  -h, --help            show this help message and exit

  -o OUTPUT, --output OUTPUT

                        Output VCF file. Add .gz to the file name to get

                        compressed output. If omitted, use standard output.

  --reference FASTA, -r FASTA

                        Reference file. Provide this to detect alleles through

                        re-alignment. If no index (.fai) exists, it will be

                        created

  --tag {PS,HP}         Store phasing information with PS tag (standardized)

                        or HP tag (used by GATK ReadBackedPhasing) (default:

                        PS)

  --output-read-list FILE

                        Write reads that have been used for phasing to FILE.

  --algorithm {whatshap,hapchat}

                        Choose an algorithm from whatshap or hapchat (default:

                        whatshap)



Input pre-processing, selection and filtering:

  --merge-reads         Merge reads which are likely to come from the same

                        haplotype (default: do not merge reads)

  --max-coverage MAXCOV, -H MAXCOV

                        Coverage reduction parameter in the core phasing

                        algorithm. Phasing quality may improve slightly if

                        this is increased, but runtime increases

                        exponentially! Do not increase beyond 20. (default:

                        15)

  --mapping-quality QUAL, --mapq QUAL

                        Minimum mapping quality (default: 20)

  --indels              Also phase indels (default: do not phase indels)

  --ignore-read-groups  Ignore read groups in BAM/CRAM header and assume all

                        reads come from the same sample.

  --sample SAMPLE       Name of a sample to phase. If not given, all samples

                        in the input VCF are phased. Can be used multiple

                        times.

  --chromosome CHROMOSOME

                        Name of chromosome to phase. If not given, all

                        chromosomes in the input VCF are phased. Can be used

                        multiple times.



Read merging:

  The options in this section are only active when --merge-reads is used



  --error-rate READ_MERGING_ERROR_RATE

                        The probability that a nucleotide is wrong in read

                        merging model (default: 0.15).

  --maximum-error-rate READ_MERGING_MAX_ERROR_RATE

                        The maximum error rate of any edge of the read merging

                        graph before discarding it (default: 0.25).

  --threshold READ_MERGING_POSITIVE_THRESHOLD

                        The threshold of the ratio between the probabilities

                        that a pair of reads come from the same haplotype and

                        different haplotypes in the read merging model

                        (default: 1000000).

  --negative-threshold READ_MERGING_NEGATIVE_THRESHOLD

                        The threshold of the ratio between the probabilities

                        that a pair of reads come from different haplotypes

                        and the same haplotype in the read merging model

                        (default: 1000).



Genotyping:

  The options in this section require that either --distrust-genotypes or --full-genotyping is used



  --full-genotyping     Completely re-genotype all variants based on read

                        data, ignores all genotype data that might be present

                        in the VCF (EXPERIMENTAL FEATURE).

  --distrust-genotypes  Allow switching variants from hetero- to homozygous in

                        an optimal solution (see documentation).

  --include-homozygous  Also work on homozygous variants, which might be

                        turned to heterozygous

  --default-gq DEFAULT_GQ

                        Default genotype quality used as cost of changing a

                        genotype when no genotype likelihoods are available

                        (default 30)

  --gl-regularizer GL_REGULARIZER

                        Constant (float) to be used to regularize genotype

                        likelihoods read from input VCF (default None).

  --changed-genotype-list FILE

                        Write list of changed genotypes to FILE.



Pedigree phasing:

  --ped PED/FAM         Use pedigree information in PED file to improve

                        phasing (switches to PedMEC algorithm). Columns 2, 3,

                        4 must refer to child, mother, and father sample names

                        as used in the VCF and BAM/CRAM. Other columns are

                        ignored.

  --recombination-list FILE

                        Write putative recombination events to FILE.

  --recombrate RECOMBRATE

                        Recombination rate in cM/Mb (used with --ped). If

                        given, a constant recombination rate is assumed

                        (default: 1.26cM/Mb).

  --genmap FILE         File with genetic map (used with --ped) to be used

                        instead of constant recombination rate, i.e. overrides

                        option --recombrate.

  --no-genetic-haplotyping

                        Do not merge blocks that are not connected by reads

                        (i.e. solely based on genotype status). Default: when

                        in --ped mode, merge all blocks that contain at least

                        one homozygous genotype in at least one individual

                        into one block.

  --use-ped-samples     Only work on samples mentioned in the provided PED

                        file.

whatshap phase: error: the following arguments are required: VCF, PHASEINPUT



ラン

whatshapのphaseコマンドは以下のような処理を行う。

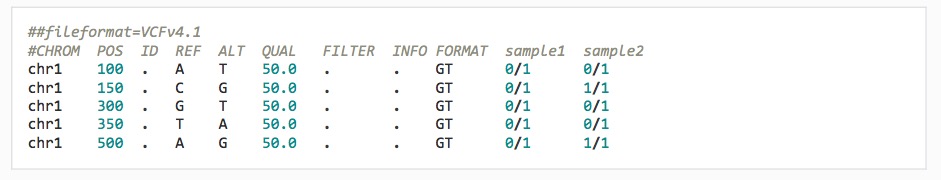

これはSample1とSample2のマージしたvcfファイルだが、samle1だけ、GT(genotype)フィールドが5つのアレルすべてでヘテロ(0/1)になっている。

f:id:kazumaxneo:20180405222348j:plain

公式より転載



phaseコマンドはGTフィールドが0/1のものをフェーズがそろうよう並べ替えて、/ のかわりにパイプ( | )で区切る。Sample1の1つのハプロタイプはA, G, T, T, A、もう片方のハプロタイプはT, C, G, A, Gと推定した(0/1ではヘテロとしかわからない。|で区切ることで、REFかALTか明確にしている)。

f:id:kazumaxneo:20180405222715j:plain

公式より転載



phasingを行うには、バリアントコーラーが出力したVCFと、マッピングしたbamファイルが必要になる。 phaseコマンドを使う。

whatshap phase -o phased.vcf input.vcf mapped.bam



1000genomesのデータを3つ解析してみる。サンプル名は通し番号とする。

シェルスクリプト variant_call.sh

#!/bin/sh

#複数のbamを順に処理する。
#依存ツール
#BBtools - interleave fastqの作成
#sickle - quality trimming
#SAMTools - sam=>bam、ソート、index
#BWA MEM - mapping
#vcftools - VCFのマージ
#samblaster

#パラメータ
thread=20 #スレッド数

#保存場所
#全サンプルのfastq: ~/fastq/ #ペアエンド名はstrain通し番号_pair1/2.fq.gz (e.g., strain1_pair1.fq.gz & strain1_pair2.fq.gz)
#interleave_fastq: ~/interleave_fastq/
#reference.fasta: ~/ref/
#bam: ~/bam/
#VCF: ~/vcf/


#indexを作る。
ref=~/ref/Homo_sapiens.GRCh38.dna.chromosome.fa
bwa index $ref #isはたしか2GBまで
samtools faidx $ref


#3サンプルのループ処理
sample=(1 2 3)
for name in ${sample[@]}; do
echo sample$name
r1=strain${name}_pair1.fq.gz
r2=strain${name}_pair2.fq.gz

  #interleaveのfastq.gz作成#interleaveのfastq.gz作成
reformat.sh in1=$r1 in2=$r2 out=~/interleave_fastq/${name}_interleave.fq.gz

fastq=~/interleave_fastq/${name}_interleave.fq.gzfastq=~/interleave_fastq/${name}_interleave.fq.gz
sleep 1s

#quality trimming
sickle pe -c $fastq -g -t sanger -l 20 -q 20 -m ~/interleave_fastq/${name}_interleave_qc.fq.gz -s single.fq.gz && rm single.fq.gz
qcfastq=~/interleave_fastq/${name}_interleave_qc.fq.gz

#mapping samblasrにパイプしてduplicationは捨てる
bwa mem -R "@RG\tID:1a\tLB:library1\tSM:Sample${name}\tPL:ILLUMINA" -t $thread $ref $qcfastq | samblaster -r -e -d samp.disc.sam -s samp.split.sam |samtools view -@ $thread -bS - > ${name}.bam

samtools sort -@ $thread ${name}.bam > ~/bam/${name}_sorted.bam && rm ${name}.bam #ソート
samtools index ~/bam/${name}_sorted.bam #bamのindex

freebayes -f $ref -C 5 -p 2 ~/bam/${name}_sorted.bam > ~/vcf/${name}_output.vcf && #バリアントのコール
bgzip -c ~/vcf/${name}_output.vcf > ~/vcf/${name}_output.vcf.gz && rm ~/vcf/${name}_output.vcf #vcfの圧縮
tabix -p vcf ~/vcf/${name}_output.vcf.gz #vcfのindex
done

GATKは遅すぎるのでfreebayesを使った。1_sorted.bam、2_sorted.bam、3_sorted.bam、とそのvcfファイルである1_output.vcf.gz、2_output.vcf.gz、3_output.vcf.gzが得られた。



 VCFのマージ。

vcf-merge 1_output.vcf.gz 2_output.vcf.gz 3_output.vcf.gz | bgzip -c > merge.vcf.gz

merge.vcf.gzが出力される。



Sample1のphasingを行う。 WhatsHapのphaseコマンドを使う。ロングリードならリファンレスを与えて精度をあげる必要がある(see manual)。Sample1のchromosome1のみに限定する。

whatshap phase --indels --sample SampleA --chromosome 1 -o phased.vcf merge.vcf.gz 1_sorted.bam
  • --max-coverage     Reduce coverage (default: 15).
  •  --mapping-quality    Minimum mapping quality (default: 20)
  • --indels     Also phase indels (default: do not phase indels)
  • --ignore-read-groups      Ignore read groups in BAM header and assume all reads come from the same sample.
  • --sample     Name of a sample to phase. If not given, all samples in the input VCF are phased. Can be used multiple
  • --chromosome     Name of chromosome to phase. If not given, all chromosomes in the input VCF are phased. Can be used multiple times.

phased.vcfが出力される。



gz圧縮してindexをつける。

bgzip phased.vcf
tabix phased.vcf.gz



フェーズ分析結果をもとにハプロタイプの配列を出力。

bcftools consensus -H 1 -s Sample1 -f Homo_sapiens.GRCh38.dna.chromosome.fa  phased.vcf.gz > haplotype1.fa
bcftools consensus -H 2 -s Sample1 -f Homo_sapiens.GRCh38.dna.chromosome.fa phased.vcf.gz > haplotype2.fa



 フェーズ分析結果をもとにGTFを出力。phasingされた数などのstatisticsも標準出力される。

whatshap stats --sample SampleA --chromosome 1 --indels --gtf=phased.gtf phased.vcf.gz
  • --gtf      Write phased blocks to GTF file.
  • --sample     Name of the sample to process. If not given, use first sample found in VCF.
  • --only-snvs     Only process SNVs and ignore all other variants.
  • --chromosome     Name of chromosome to process. If not given, all chromosomes in the input VCF are considered.



 IGVに読み込む。

igv -g Homo_sapiens.GRCh38.dna.chromosome.fa phased.vcf.gz,phased.gtf,1_sorted.bam

 f:id:kazumaxneo:20180406080539j:plain





他にも2つ以上のphasing解析結果を比較するcompareなどのコマンドがある。



引用

WhatsHap: Weighted Haplotype Assembly for Future-Generation Sequencing Reads.

Patterson M, Marschall T, Pisanti N, van Iersel L, Stougie L, Klau GW, Schönhuth A

J Comput Biol. 2015 Jun;22(6):498-509.
