真菌を中心とした真核生物ゲノムのアノテーションパイプライン funannotate

2021/11/17 dockerについて追記

2023/08/08 引用修正



 Funannotateはゲノム予測、アノテーション、比較のためのソフトウェアパッケージである。元々は真菌ゲノム(真核生物の中では小さいもので30 Mb程度のゲノム)のアノテーション用に書かれていたが、より大きなゲノムにも対応できるように進化してきた。このソフトウェアパッケージは、NCBI GenBankにsubmitするためのゲノムのアノテーションを正確かつ簡単に行うことができるようにするために開発された。既存のツール(Makerなど)では、GenBankへの投稿ルールに準拠するために、かなりの手作業での編集が必要となるが、funannotateはゲノム投稿プロセスを簡素化することを目的としている。

 また、Funannotateは軽量な比較ゲノムプラットフォームでもある。funannotate annotateコマンドで機能的アノテーションを追加したゲノムは、funannotate compareスクリプトでhtmlベースの全ゲノム比較を実行することができる。このソフトウェアは、オーソロガスクラスタリングの実行、全ゲノム系統図の構築、Gene Ontologyエンリッチメント解析の実行、正の選択下でのオーソロガスクラスタのdN/dS比の計算を行うことができる。



Documentation

Installation — Funannotate 1.7.0 documentation



インストール

GIthub

#bioconda (link)
mamba create -n funannotate python=3.7 -y
conda activate funannotate
mamba install -c bioconda -y funannotate

funannotate

$ funannotate



Usage:       funannotate <command> <arguments>

version:     1.8.1



Description: Funannotate is a genome prediction, annotation, and comparison pipeline.



Commands:

  clean       Find/remove small repetitive contigs

  sort        Sort by size and rename contig headers

  mask        Repeatmask genome assembly



  train       RNA-seq mediated training of Augustus/GeneMark

  predict     Run gene prediction pipeline

  fix         Fix annotation errors (generate new GenBank file)

  update      RNA-seq/PASA mediated gene model refinement

  remote      Partial functional annotation using remote servers

  iprscan     InterProScan5 search (Docker or local)

  annotate    Assign functional annotation to gene predictions

  compare     Compare funannotated genomes



  util        Format conversion and misc utilities

  setup       Setup/Install databases

  test        Download/Run funannotate installation tests

  check       Check Python, Perl, and External dependencies [--show-versions]

  species     list pre-trained Augustus species

  database    Manage databases

  outgroups   Manage outgroups for funannotate compare



Written by Jon Palmer (2016-2019) nextgenusfs@gmail.com

funannotate predict

$ funannotate predict



Usage:       funannotate predict <arguments>

version:     1.8.1



Description: Script takes genome multi-fasta file and a variety of inputs to do a comprehensive whole

             genome gene prediction.  Uses AUGUSTUS, GeneMark, Snap, GlimmerHMM, BUSCO, EVidence Modeler,

             tbl2asn, tRNAScan-SE, Exonerate, minimap2.

Required:

  -i, --input              Genome multi-FASTA file (softmasked repeats)

  -o, --out                Output folder name

  -s, --species            Species name, use quotes for binomial, e.g. "Aspergillus fumigatus"



Optional:

  -p, --parameters         Ab intio parameters JSON file to use for gene predictors

  --isolate                Isolate name, e.g. Af293

  --strain                 Strain name, e.g. FGSCA4

  --name                   Locus tag name (assigned by NCBI?). Default: FUN_

  --numbering              Specify where gene numbering starts. Default: 1

  --maker_gff              MAKER2 GFF file. Parse results directly to EVM.

  --pasa_gff               PASA generated gene models. filename:weight

  --other_gff              Annotation pass-through to EVM. filename:weight

  --rna_bam                RNA-seq mapped to genome to train Augustus/GeneMark-ET

  --stringtie              StringTie GTF result

  -w, --weights            Ab-initio predictor and EVM weight. Example: augustus:2 or pasa:10

  --augustus_species       Augustus species config. Default: uses species name

  --min_training_models    Minimum number of models to train Augustus. Default: 200

  --genemark_mode          GeneMark mode. Default: ES [ES,ET]

  --genemark_mod           GeneMark ini mod file

  --busco_seed_species     Augustus pre-trained species to start BUSCO. Default: anidulans

  --optimize_augustus      Run 'optimze_augustus.pl' to refine training (long runtime)

  --busco_db               BUSCO models. Default: dikarya. `funannotate outgroups --show_buscos`

  --organism               Fungal-specific options. Default: fungus. [fungus,other]

  --ploidy                 Ploidy of assembly. Default: 1

  -t, --tbl2asn            Assembly parameters for tbl2asn. Default: "-l paired-ends"

  -d, --database           Path to funannotate database. Default: $FUNANNOTATE_DB



  --protein_evidence       Proteins to map to genome (prot1.fa prot2.fa uniprot.fa). Default: uniprot.fa

  --protein_alignments     Pre-computed protein alignments in GFF3 format

  --p2g_pident             Exonerate percent identity. Default: 80

  --p2g_diamond_db         Premade diamond genome database for protein2genome mapping

  --transcript_evidence    mRNA/ESTs to align to genome (trans1.fa ests.fa trinity.fa). Default: none

  --transcript_alignments  Pre-computed transcript alignments in GFF3 format

  --augustus_gff           Pre-computed AUGUSTUS GFF3 results (must use --stopCodonExcludedFromCDS=False)

  --genemark_gtf           Pre-computed GeneMark GTF results



  --min_intronlen          Minimum intron length. Default: 10

  --max_intronlen          Maximum intron length. Default: 3000

  --soft_mask              Softmasked length threshold for GeneMark. Default: 2000

  --min_protlen            Minimum protein length. Default: 50

  --repeats2evm            Use repeats in EVM consensus model building

  --repeat_filter          Repetitive gene model filtering. Default: overlap blast [overlap,blast,none]

  --keep_no_stops          Keep gene models without valid stops

  --keep_evm               Keep existing EVM results (for rerunning pipeline)

  --SeqCenter              Sequencing facilty for NCBI tbl file. Default: CFMR

  --SeqAccession           Sequence accession number for NCBI tbl file. Default: 12345

  --force                  Annotated unmasked genome

  --cpus                   Number of CPUs to use. Default: 2



ENV Vars:  If not specified at runtime, will be loaded from your $PATH

  --EVM_HOME

  --AUGUSTUS_CONFIG_PATH

  --GENEMARK_PATH

  --BAMTOOLS_PATH



データベースの準備

funannotate setup -i all -d funannotate_database

# $FUNANNOTATE_DBを設定
export FUNANNOTATE_DB=/<your>/<funannotate>/<download>/<dir>



実行方法

funannotate predict - 遺伝子予測

ゲノムと推定transcritsのFASTAファイルを指定する。genome.fastaのヘッダー名が長いとエラーを起こすので注意する。

funannotate predict -i inputgenome.fasta --species "Genome awesomenous" --isolate T12345 \
--transcript_evidence trinity.fasta --rna_bam alignments.bam -o outdir --cpus 20

以下のステップで実行される。

  1. Align Transcript Evidence to genome using minimap2
  2. Align Protein Evidence to genome using Diamond/Exonerate.
  3. Parse BAM alignments generating hints file
  4. Parse PASA gene models and use to train/run Augustus, snap, GlimmerHMM
  5. Extract high-quality Augustus predictions (HiQ)
  6. Run Stringtie on BAM alignments, use results to run CodingQuarry
  7. Pass all data to Evidence Modeler and run
  8. Filter gene models (length filtering, spanning gaps, and transposable elements)
  9. Predict tRNA genes using tRNAscan-SE
  10. Generate an NCBI annotation table (.tbl format)
  11. Convert to GenBank format using tbl2asn
  12. Parse NCBI error reports and alert user to invalid gene models

出力

f:id:kazumaxneo:20201004133105p:plain

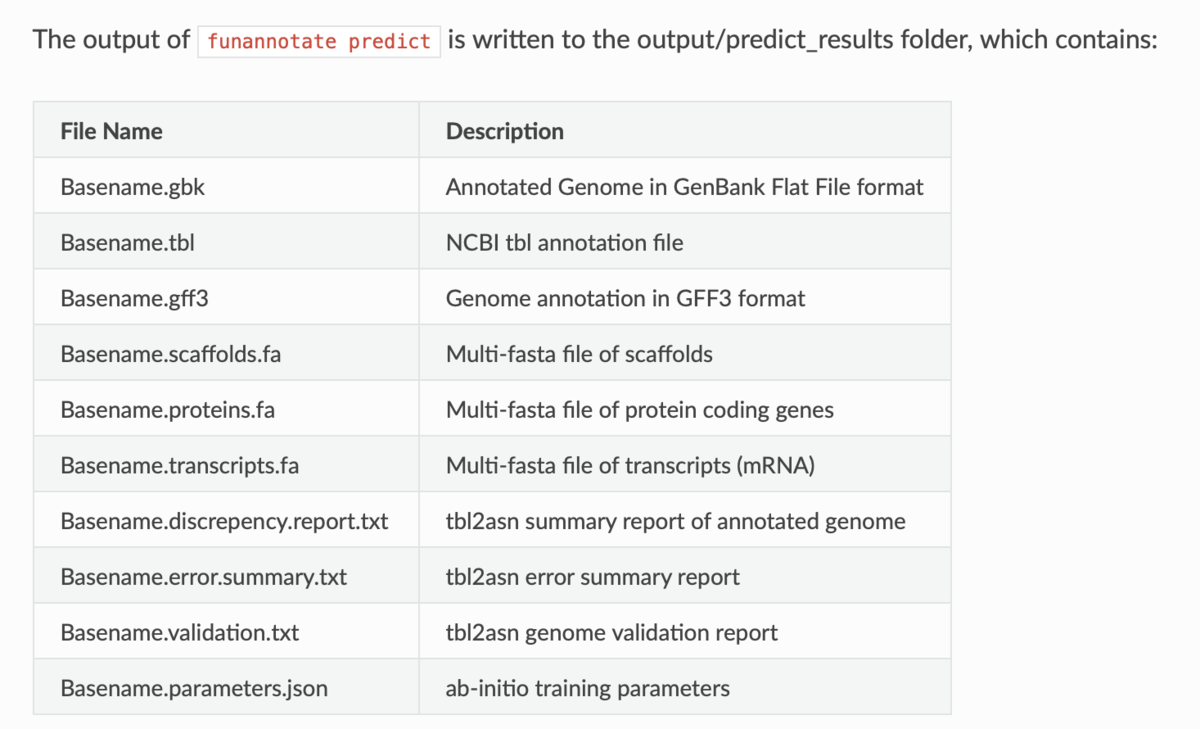

 出力ファイル(Githubより)

f:id:kazumaxneo:20201003234753p:plain



PASAで得たGFF3ファイルも指定する(--pasa_gff)。

funannotate predict -i inputgenome.fasta --species "Genome awesomenous" --isolate T12345 \
--transcript_evidence trinity.fasta --rna_bam alignments.bam --pasa_gff pasa.gff3 -o outdir --cpus 20



pre-trainされたAugustusのトレーニングファイル(hint file)を使用することもできる(ランタイムが大きく短縮される)。まず利用できるセットを確認する。

funannotate species

f:id:kazumaxneo:20201003233952p:plain

(以下省略)
 実行する(bam指定は不要)。

funannotate predict -i inputgenome.fasta -o outdir -s "Aspergillus nidulans" --augustus_species anidulans --cpus 20



Augustus or GeneMarkのアノテーションファイルを持っている場合、--augustus_gffと--genemark_gtfで指定する。

funannotate predict -i inputgenome.fasta -o outdir -s "Aspergillus nidulans" --augustus_gff augustus.gff --genemark_gtf genemark.gtf --cpus 20



 Evidence Modelerはエビデンスの各セットにウエイトをつける。デフォルトではab initioの遺伝子予測と転写産物/タンパク質のアラインメントの入力は1に設定されている。PASAの高品質遺伝子モデルを--pasa_gffで渡した場合、デフォルトでは6の重みが設定される。 一方、別のGFFファイルからのエビデンスを--other_gffで渡した場合、それらのモデルはデフォルトでは1に設定される。入力にコロンを使用することで、PASAのエビデンスと他のエビデンスの両方の重みを制御することができる。また、-w, -weightsオプションを利用してab-initioツールの重みを制御することができる。

funannotate predict -i inputgenome.fasta -o outdir -s "Aspergillus nidulans" --pasa_gff mypasamodels.gff3:8 --other_gff prediction.gff3:5

#multiple GFF files can be passed to --other_gff funannotate predict -i inputgenome.fasta -o outdir -s "Aspergillus nidulans" --pasa_gff mypasamodels.gff3:8 --other_gff prediction1.gff3:5 prediction2.gff3:1

#controlling the weights directly funannotate predict -i inputgenome.fasta -o outdir -s "Aspergillus nidulans" --weights augustus:2 pasa:8 snap:1





docker

dockerを使ってfunannotateを実行することもできる(GeneMarkがdockerイメージに含まれていない点に注意)

docker pull nextgenusfs/funannotate
wget -O funannotate-docker https://raw.githubusercontent.com/nextgenusfs/funannotate/master/funannotate-docker
chmod +x /path/to/funannotate-docker
#test run
./funannotate-docker test -t predict --cpus 12

f:id:kazumaxneo:20211116192455p:plain



f:id:kazumaxneo:20211116193633p:plain





sudo docker run -itv $PWD:/data -w /data --rm nextgenusfs/funannotate:latest funannotate predict -i softmasked.fa -o outdir --cpus 40 --species "Genome awesomenous" --isolate T12345



引用

Palmer J. 2016. Funannotate: pipeline for genome annotation.

https://zenodo.org/record/2604804#.ZNIMJC_3Ia8

参考#310
