核酸のナノポアシーケンシングは、開発に30年近くを要し、現在では合成法によるシーケンシングの代替手段として確固たる地位を確立している(Deamer, Akeson, & Branton, 2016)。オックスフォード・ナノポア・テクノロジーズ(ONT)は、2014年にDNAシーケンシング用の最初の商業的なナノポアデバイスをリリースし、その後も継続的に技術を改良してきた(Jain, Olsen, Paten, & Akeson, 2016)。読み取り精度は90%程度に過ぎないが、ONT技術は非常に長い分子をシーケンスすることができ、リアルタイムでデータを生成することができる。また、RNAを直接シーケンスすることができ、修飾された塩基を検出することができる(Garalde et al).
ナノポアのアレイによって取得された電気信号は、HDF5形式で保存され、シーケンスされた分子ごとに1つのファイル(FAST5と呼ばれる)を持つ。次いで、信号は、ベースコールソフトウェアを使用して、核酸配列に変換される。いくつかの選択肢があるが、読み取り精度のための最良のパフォーマーは、ONTによって開発され、維持されているAlbacoreまたはGuppyである(Wick, Judd, & Holt, 2018)。どちらもFASTQファイル、ベースコール情報とテキストサマリーファイルを含むFAST5ファイルを生成することができる。ONTは最近、シーケンシングランの品質管理分析のためのベストプラクティスガイドラインを発表したが(Oxford Nanopore Technologies, 2019)、シーケンシングデータの品質を深く探求するためのターンキーソリューションを提供していなかった。
ここでは、ベースコールされたナノポアリードまたはAlbacoreとGuppyによって生成されたサマリーファイルからインタラクティブな品質管理メトリクスとプロットを生成するための新しいツールであるpycoQCを紹介する。Nanoplot(De Coster, D'Hert, Schultz, Cruts, & Van Broeckhoven, 2018)、MinionQC(Lanfear, Schalamun, Kainer, Wang, & Schwessinger, 2018)、 toulligQC(Laffay, Ferrato-Berberian, Jour-dren, Lemoine, & Le Crom, 2018)など、他のオープンソースの代替ツールもあるが、pycoQCにはいくつかの斬新な機能がある。
Documentation
https://a-slide.github.io/pycoQC/
jupyter notebook上で使う
インストール
macOS10.14でpipを使って導入した。
依存
- numpy>=1.13
- scipy>=1.1
- pandas>=0.23
- plotly>=3.4
- jinja2>=2.10
- h5py>=2.8.0
- tqdm>=4.23'
#pipで導入可能。
pip install pycoQC
#condaの仮想環境に入れるなら
conda install pip
pip install pycoQC
#bioconda (link) 未テスト
conda create -n pycoQC python=3.6 -y
conda activate pycoQC
conda install -c bioconda -y pycoqc
#development version (unstable)
pip install --index-url https://test.pypi.org/simple/ pycoQC -U
> pycoQC
$ pycoQC
ERROR: `--summary_file` is a required argument
usage: pycoQC [-h] [--version]
[--summary_file [SUMMARY_FILE [SUMMARY_FILE ...]]]
[--barcode_file [BARCODE_FILE [BARCODE_FILE ...]]]
[--bam_file [BAM_FILE [BAM_FILE ...]]]
[--html_outfile HTML_OUTFILE] [--json_outfile JSON_OUTFILE]
[--min_pass_qual MIN_PASS_QUAL] [--min_pass_len MIN_PASS_LEN]
[--filter_calibration] [--filter_duplicated]
[--min_barcode_percent MIN_BARCODE_PERCENT]
[--report_title REPORT_TITLE] [--template_file TEMPLATE_FILE]
[--config_file CONFIG_FILE] [--sample SAMPLE] [--default_config]
[-v | -q]
pycoQC computes metrics and generates interactive QC plots from the sequencing summary
report generated by Oxford Nanopore technologies basecallers
* Minimal usage
pycoQC -f sequencing_summary.txt -o pycoQC_output.html
* Including Guppy barcoding file + html output + json output
pycoQC -f sequencing_summary.txt -b barcoding_sequencing.txt -o pycoQC_output.html -j pycoQC_output.json
* Including Bam file + html output
pycoQC -f sequencing_summary.txt -a alignment.bam -o pycoQC_output.html
optional arguments:
-h, --help show this help message and exit
--version show program's version number and exit
-v, --verbose Increase verbosity
-q, --quiet Reduce verbosity
Input/output options:
--summary_file [SUMMARY_FILE [SUMMARY_FILE ...]], -f [SUMMARY_FILE [SUMMARY_FILE ...]]
Path to a sequencing_summary generated by Albacore
1.0.0 + (read_fast5_basecaller.py) / Guppy 2.1.3+
(guppy_basecaller). One can also pass multiple space
separated file paths or a UNIX style regex matching
multiple files (Required)
--barcode_file [BARCODE_FILE [BARCODE_FILE ...]], -b [BARCODE_FILE [BARCODE_FILE ...]]
Path to the barcode_file generated by Guppy 2.1.3+
(guppy_barcoder) or Deepbinner 0.2.0+. This is not a
required file. One can also pass multiple space
separated file paths or a UNIX style regex matching
multiple files (optional)
--bam_file [BAM_FILE [BAM_FILE ...]], -a [BAM_FILE [BAM_FILE ...]]
Path to a Bam file corresponding to reads in the
summary_file. Preferably aligned with Minimap2 One can
also pass multiple space separated file paths or a
UNIX style regex matching multiple files (optional)
--html_outfile HTML_OUTFILE, -o HTML_OUTFILE
Path to an output html file report (required if
json_outfile not given)
--json_outfile JSON_OUTFILE, -j JSON_OUTFILE
Path to an output json file report (required if
html_outfile not given)
Filtering options:
--min_pass_qual MIN_PASS_QUAL
Minimum quality to consider a read as 'pass' (default:
7)
--min_pass_len MIN_PASS_LEN
Minimum read length to consider a read as 'pass'
(default: 0)
--filter_calibration If given, reads flagged as calibration strand by the
basecaller are removed (default: False)
--filter_duplicated If given, duplicated read_ids are removed but the
first occurence is kept (Guppy sometimes outputs the
same read multiple times) (default: False)
--min_barcode_percent MIN_BARCODE_PERCENT
Minimal percent of total reads to retain barcode
label. If below, the barcode value is set as
`unclassified` (default: 0.1)
HTML report options:
--report_title REPORT_TITLE
Title to use in the html report (default: PycoQC
report)
--template_file TEMPLATE_FILE
Jinja2 html template for the html report (default: )
--config_file CONFIG_FILE
Path to a JSON configuration file for the html report.
If not provided, looks for it in ~/.pycoQC and
~/.config/pycoQC/config. If it's still not found,
falls back to default parameters. The first level keys
are the names of the plots to be included. The second
level keys are the parameters to pass to each plotting
function (default: )")
Other options:
--sample SAMPLE If not None a n number of reads will be randomly
selected instead of the entire dataset for ploting
function (deterministic sampling) (default: 100000)
--default_config, -d Print default configuration file. Can be used to
generate a template JSON file (default: False)
実行方法
AlbacoreやGuppyが出力するsequencing_summary.txtを指定する。
pycoQC \
-f Guppy-2.1.3_basecall-1D-RNA_sequencing_summary.txt.gz \
-o Guppy-2.1.3_basecall-1D_RNA.html \
-j Guppy-2.1.3_basecall-1D_RNA.json \
--min_pass_qual 6 \
--min_pass_len 100 \
--filter_calibration \
--min_barcode_percent 10 \
--quiet

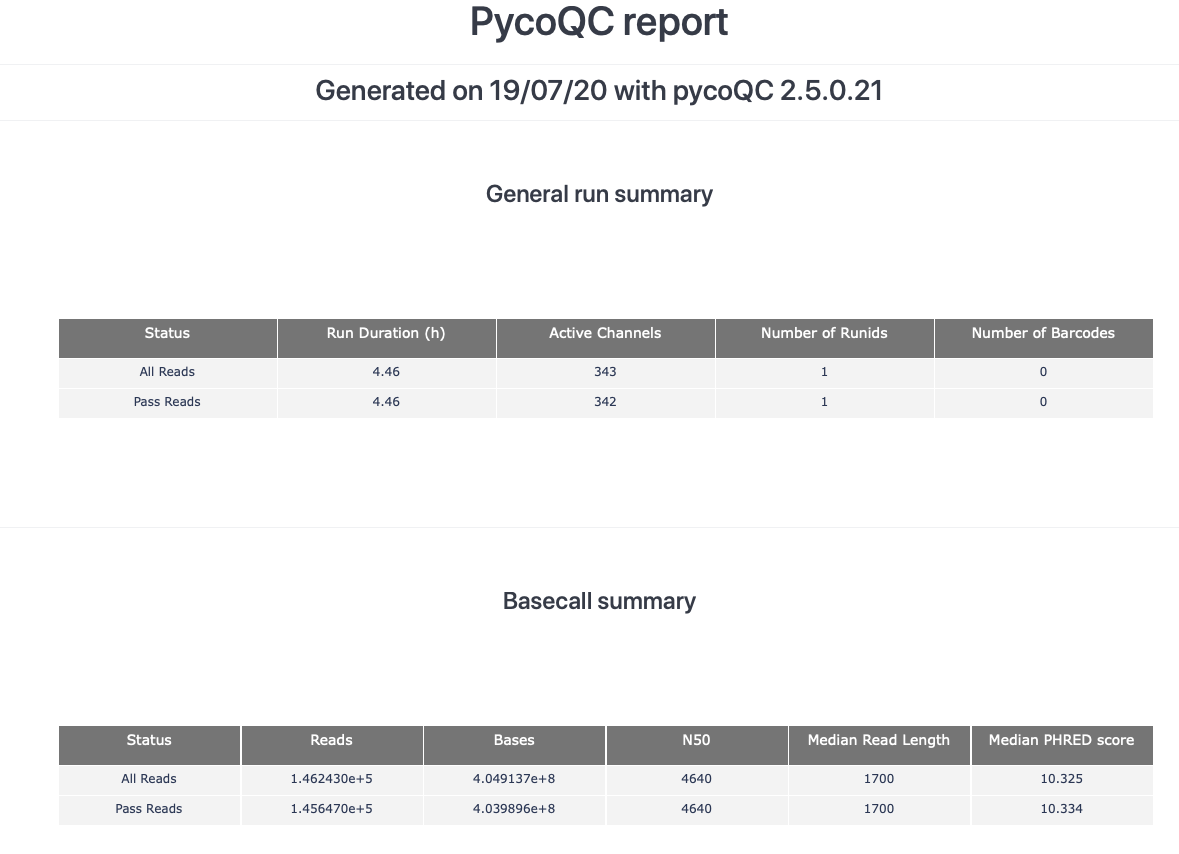

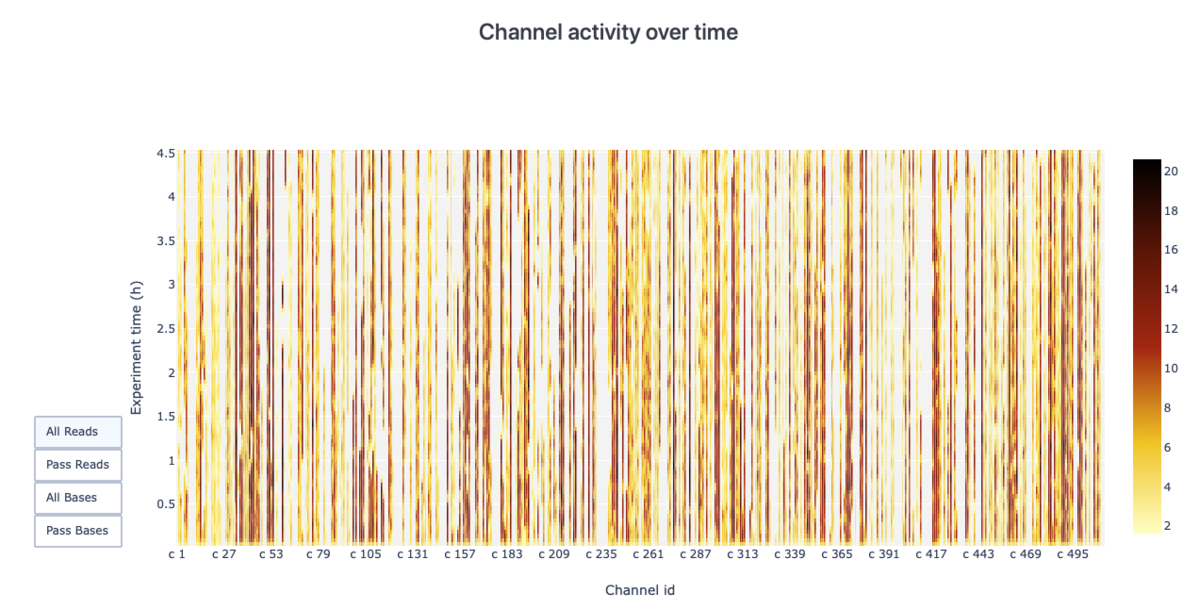

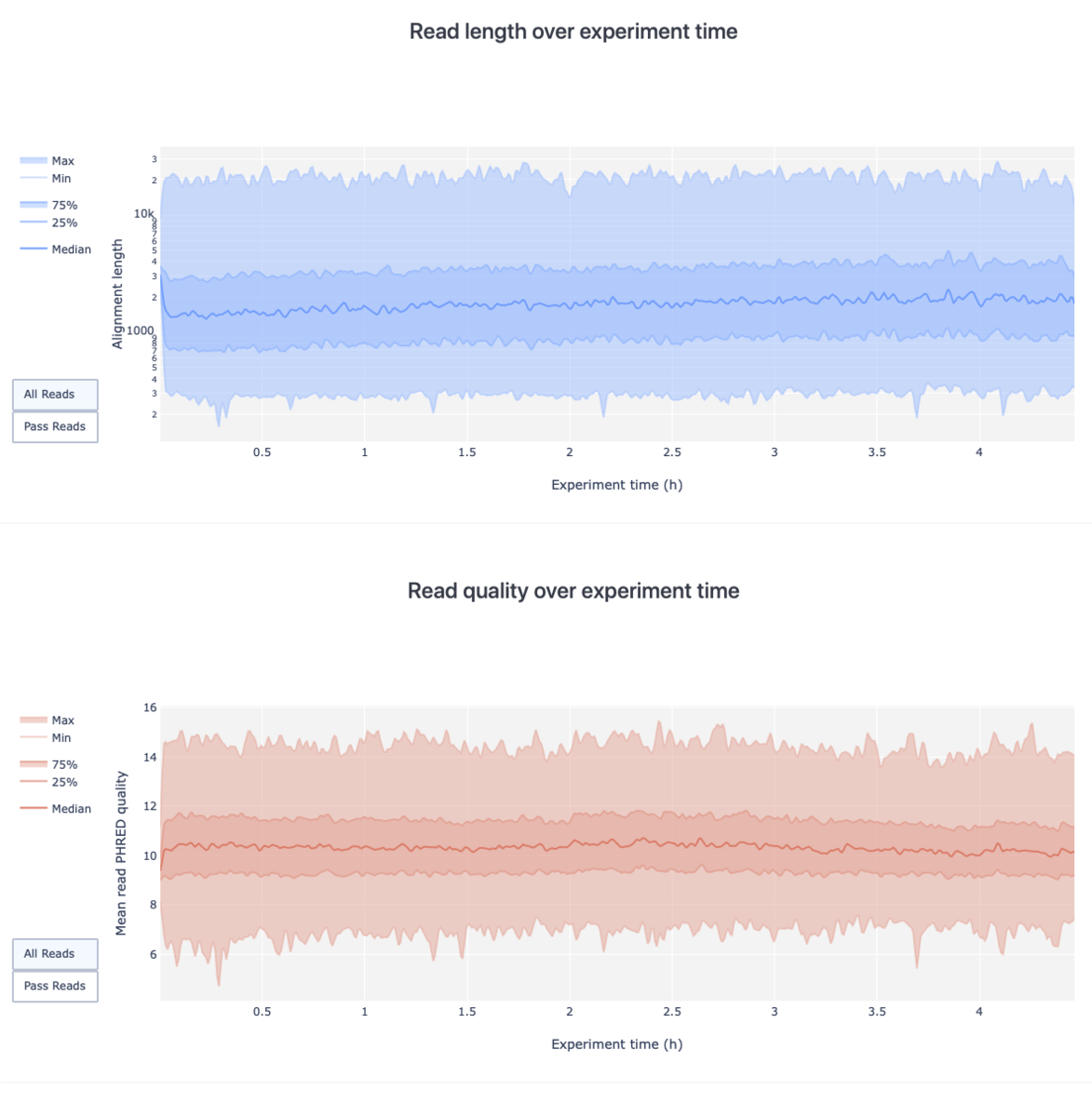

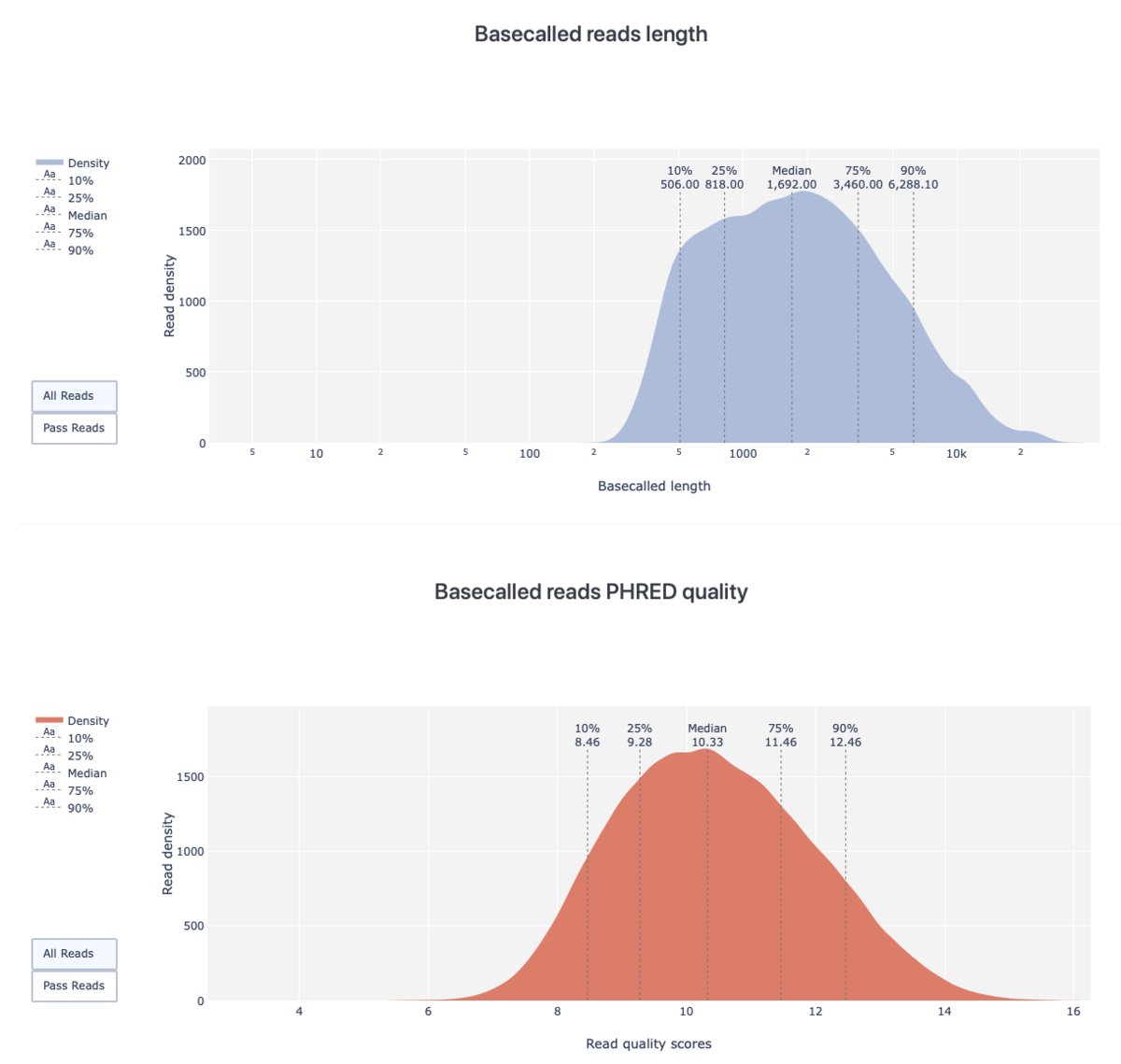

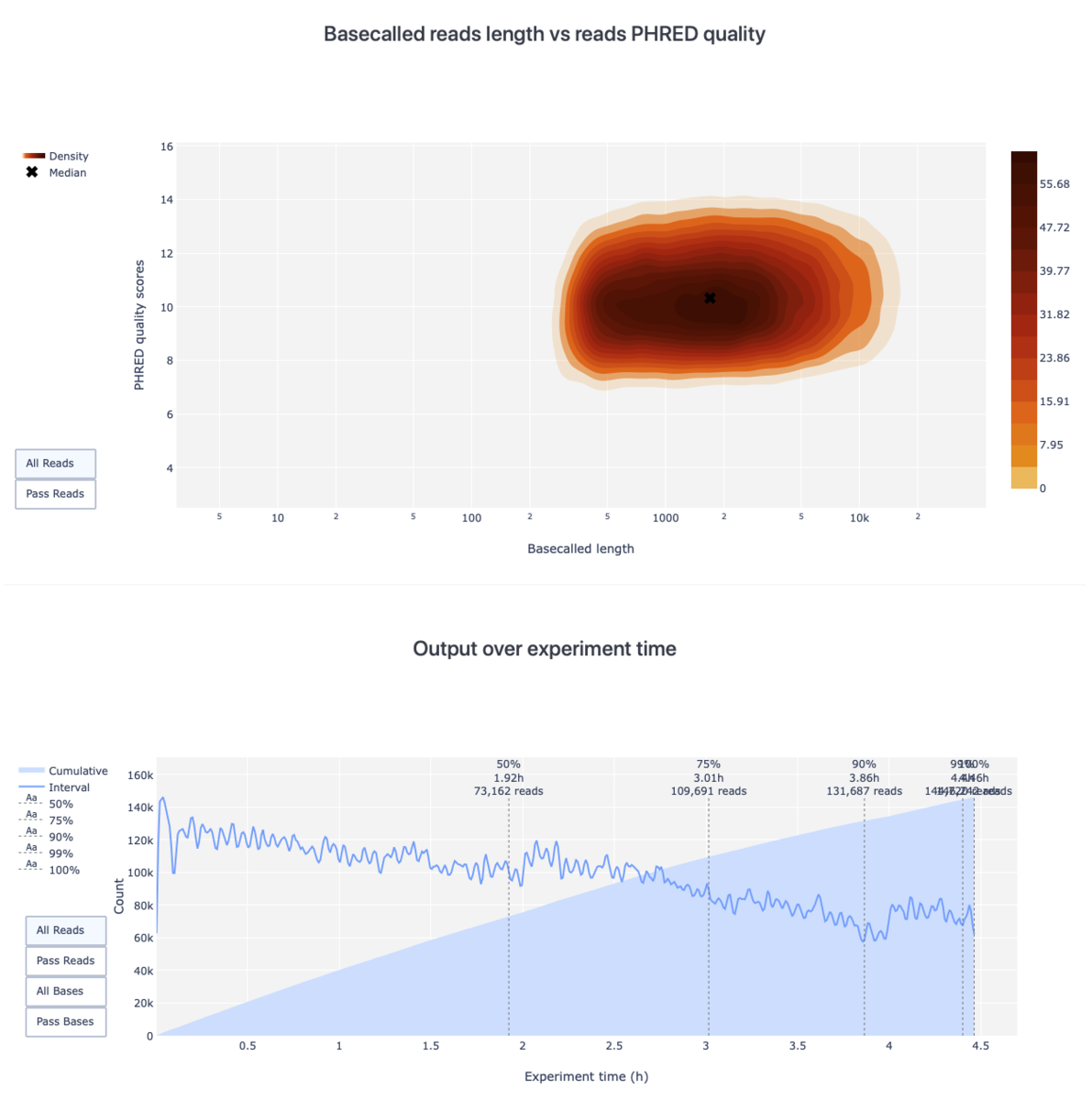

出力
Guppy-2.1.3_basecall-1D_RNA.html
引用
pycoQC, interactive quality control for Oxford Nanopore Sequencing
Adrien Leger, Tommaso Leonardi
JOSS, Published: 28 February 2019
