2024/02/28 コマンド修正
インテグロンは柔軟な遺伝子交換プラットフォームであり、アクセサリー遺伝子をコードする複数のカセットを含み、その順序は特定のインテグラーゼによってシャッフルされる。移動性遺伝要素に組み込まれたインテグロンには、しばしば複数の抗生物質耐性遺伝子が含まれており、院内感染病原体の間で拡散し、現在の抗生物質耐性の危機の一因となっている。しかしほとんどのインテグロンはおそらく定常的であり、はるかに多様な機能をコードしている。IntegronFinderは、細菌ゲノム中の新規インテグロンを同定するために広く使われているソフトウェアであるが、古くなり、ドラフトゲノムやメタゲノムなどの非常に大きなデータセットを扱うための便利な機能を欠いている。ここでは、IntegronFinderバージョン2を紹介する。コードを更新し、効率と使いやすさを向上させ、不完全なゲノムデータにも対応できるようにした。これらの変更点を説明し、20,000以上の完全な塩基配列が決定されたゲノムのインテグロン分布を解析することで、このプログラムの妥当性を示す。また、この新しい機能を最大限に利用して、4000近いKlebsiella pneumoniaeゲノムを解析し、その中にインテグロンと抗生物質耐性遺伝子が存在するかどうかを調べた。その結果、K. pneumoniaeには多様なインテグロンが存在し、プラスミドのデータベースの中で最大の可動性インテグロンが存在することがわかった。これらのインテグロンのパンゲノムには合計165の異なる遺伝子ファミリーが含まれ、最も大きなファミリーのほとんどは多くの種類の抗生物質に対する耐性に関連している。
インテグロンは、インテグラーゼ(IntI)と、組換え結合部位(att)に挟まれた遺伝子カセットを含む、いくつかの遺伝的要素の集合体である(論文図1A)。インテグラーゼは、典型的なチロシンリコンビナーゼから進化して、折り畳まれた基質によってssDNAの組換えを仲介するようになった[ref.7]。チロシンリコンビナーゼとしては珍しいこの活性は、タンパク質のC末端に近い部分に余分なドメインがあることと関連しており[ref.7]、これによってIntIは他のインテグラーゼと容易に区別することができる[ref.8]。IntIは組換え部位(付着部位)と相互作用し、遺伝子カセットの切除や統合を引き起こす。
インストール
公開されているdocker imageを使ってテストした。
依存
- Python >=3.10
- Pandas >=2
- Numpy >=1.26
- Biopython >=1.82
- Matplotlib >=3.8
- colorlog
- HMMER >=3.1b2,<=3.3.2
- INFERNAL >=1.1.2,<=1.1.4
- Prodigal >=2.6.2,<=V2.6.3
#docker(hub)
docker pull gempasteur/integron_finder:2.0.3
pip(PyPI:環境を作って導入することが推奨されている)
python -m venv Integron_Finder
./Integron_Finder/bin/activate
pip install --user integron_finder==2.0.3
> integron_finder
usage: integron_finder [-h] [--local-max] [--func-annot] [--cpu CPU]
[-dt DISTANCE_THRESHOLD] [--outdir OUTDIR]
[--union-integrases] [--cmsearch CMSEARCH]
[--hmmsearch HMMSEARCH] [--prodigal PRODIGAL]
[--path-func-annot PATH_FUNC_ANNOT] [--gembase]
[--gembase-path GEMBASE_PATH]
[--annot-parser ANNOT_PARSER] [--prot-file PROT_FILE]
[--attc-model ATTC_MODEL] [--evalue-attc EVALUE_ATTC]
[--calin-threshold CALIN_THRESHOLD]
[--keep-palindromes] [--no-proteins] [--promoter-attI]
[--max-attc-size MAX_ATTC_SIZE]
[--min-attc-size MIN_ATTC_SIZE] [--eagle-eyes] [--pdf]
[--gbk] [--keep-tmp] [--split-results]
[--circ | --linear] [--topology-file TOPOLOGY_FILE]
[--version] [--mute] [-v] [-q]
replicon
positional arguments:
replicon Path to the replicon file (in fasta format), eg :
path/to/file.fst or file.fst
options:
-h, --help show this help message and exit
--local-max Allows thorough local detection (slower but more
sensitive and do not increase false positive rate).
--func-annot Functional annotation of CDS associated with integrons
HMM files are needed in Func_annot folder.
--cpu CPU Number of CPUs used by INFERNAL and HMMER. Increasing
too much (usually above 4) may decrease performance.
-dt DISTANCE_THRESHOLD, --distance-thresh DISTANCE_THRESHOLD
Two elements are aggregated if they are distant of
DISTANCE_THRESH [4000]bp or less
--outdir OUTDIR Set the output directory (default: current)
--union-integrases Instead of taking intersection of hits from Phage_int
profile (Tyr recombinases) and integron_integrase
profile, use the union of the hits
--cmsearch CMSEARCH Complete path to cmsearch if not in PATH. eg:
/usr/local/bin/cmsearch
--hmmsearch HMMSEARCH
Complete path to hmmsearch if not in PATH. eg:
/usr/local/bin/hmmsearch
--prodigal PRODIGAL Complete path to prodigal if not in PATH. eg:
/usr/local/bin/prodigal
--path-func-annot PATH_FUNC_ANNOT
Path to file containing all hmm bank paths (one per
line)
--gembase Use gembase formatted protein file instead of
Prodigal. Folder structure must be preserved
--gembase-path GEMBASE_PATH
path to the gembase root directory (needed only if the
replicon file is not locatedin gembase-path)
--annot-parser ANNOT_PARSER
the path to the parser to use to get information from
protein file.
--prot-file PROT_FILE
The path to the proteins file used for annotations
--attc-model ATTC_MODEL
Path or file to the attc model (Covariance Matrix).
--evalue-attc EVALUE_ATTC
Set evalue threshold to filter out hits above it
(default: 1)
--calin-threshold CALIN_THRESHOLD
keep 'CALIN' only if attC sites number >= calin-
threshold (default: 2)
--keep-palindromes For a given hit, if the palindromic version is found,
don't remove the one with highest evalue.
--no-proteins Don't annotate CDS and don't find integrase, just look
for attC sites.
--promoter-attI Search also for promoter and attI sites. (default
False)
--max-attc-size MAX_ATTC_SIZE
Set maximum value fot the attC size (default: 200bp)
--min-attc-size MIN_ATTC_SIZE
set minimum value fot the attC size (default: 40bp)
--eagle-eyes Synonym of --local-max. Like a soaring eagle in the
sky, catching rabbits (or attC sites) by surprise.
--circ Set the default topology for replicons to 'circular'
--linear Set the default topology for replicons to 'linear'
--topology-file TOPOLOGY_FILE
The path to a file where the topology for each
replicon is specified.
--version show program's version number and exit
--mute mute the log on stdout.(continue to log on
integron_finder.out)
Output options:
--pdf For each complete integron, a simple graphic of the
region is depicted (in pdf format)
--gbk generate a GenBank file with the sequence annotated
with the same annotations than .integrons file.
--keep-tmp keep intermediate results. This results are stored in
directory named tmp_<replicon id>
--split-results Instead of merging integron results from all replicon
in one file, keep them in separated files.
-v, --verbose Increase verbosity of output (can be cumulative : -vv)
-q, --quiet Decrease verbosity of output (can be cumulative : -qq)
実行方法
ゲノムのfastaファイルを指定する。環状ゲノム(--circ)か線状(ドラフト含む)ゲノムか(--linear)を指定する。イメージのv2.0.3を使用。
docker run -v $PWD:/home/IF -u $(id -u ${USER}):$(id -g ${USER}) gempasteur/integron_finder:2.0.3 --local-max --circ --keep-tmp --pdf NZ_CP016323.fna
- --local-max Allows thorough local detection (slower but more sensitive and do not increase false positive rate).
- --circ Set the default topology for replicons to 'circular'
- --linear Set the default topology for replicons to 'linear'
- --cpu Number of CPUs used by INFERNAL and HMMER. Increasing too much (usually above 4) may decrease performance.
- --pdf For each complete integron, a simple graphic of the region is depicted (in pdf format)
- --gbk generate a GenBank file with the sequence annotated with the same annotations than .integrons file.
- --keep-tmp keep intermediate results. This results are stored in directory named tmp_<replicon id>
出力例

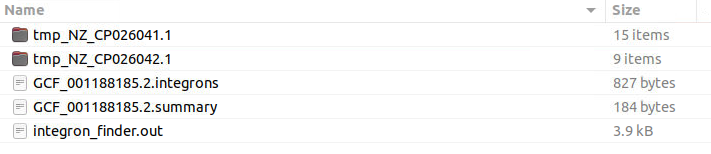

contigごとにサブディレクトリが出来る。
<genome-name>.summary: 配列ごとのインテグロン数と種類が示されている。
CALINsは"clusters of attCs lacking an associated integron-integrase"のこと。
<genome-name>.integrons : 入力ファイル中の全配列から検出された全てのインテグロンとそのエレメントが示されている。
その他(論文より)
- このプログラムは、HMMerを用いて隠れマルコフモデルのタンパク質プロファイルを用いてインテグラーゼを検索し、Infernalを用いて共分散モデルを用いてattC部位を検索する。これらと他の遺伝的構成要素、例えばプロモーターがDNA配列中に共局在していれば、それらがクラスタ化される。
- IntegronFinder version1は完全長ゲノムを解析するように設計されていて、またPython 2(現在は非推奨)で書かれ、メンテナンスを容易にする最新のツールがないという点で老朽化が進んでいた。さらにくつかのアノテーションデータベースはもはや更新されていない。そこでIntegronFinder2は、不完全なゲノムデータの解析に適応し、時間の経過(およびソフトウェアメンテナンスのための資金不足)に耐える新しいバージョンとして、プログラムのリファクタリング、出力の変更、柔軟性の追加、参照データベースの更新を行った(主な変更点は論文図1E)。
- --gbkを付けてランすると、見つかったすべてのアノテーションを含むGenbankファイルも作成される。
- ローカルマシンにインストールせずにGalaxyのパスツールインスタンスでも使用できる。https://galaxy.pasteur.fr/root?tool_id=toolshed.pasteur.fr%2Frepos%2Fkhillion%2Fintegron_finder%2Fintegron_finder%2F2.0.1
引用
IntegronFinder 2.0: Identification and Analysis of Integrons across Bacteria, with a Focus on Antibiotic Resistance in Klebsiella
Bertrand Néron, Eloi Littner, Matthieu Haudiquet, Amandine Perrin, Jean Cury and Eduardo P. C. Rocha
Microorganisms. 2022 Mar 24;10(4):700
Identification and analysis of integrons and cassette arrays in bacterial genomes
Jean Cury 1, Thomas Jové 2, Marie Touchon 3, Bertrand Néron 4, Eduardo Pc Rocha
Nucleic Acids Res. 2016 Jun 2;44(10):4539-50
