周期的に繰り返されるDNAやタンパク質要素は、ゲノムの進化、遺伝子制御、タンパク質複合体の形成、免疫を含む様々な重要な生物学的事象に関与している。特筆すべきは、現在使用されているZFNs、TALENs、CRISPRsなどのゲノム編集ツールも、すべて天然の生物の周期的に繰り返される生体分子と関連していることである。周期的に繰り返される配列の生物学的重要性と、そのような周期的な繰り返しから新たなゲノム編集モジュールの発見が期待されているにもかかわらず、大規模なゲノム資源中のこのような構造要素をハイスループットかつ教師なしでグローバルに検出するソフトウェアはこれまで開発されていなかった。我々(著者ら)は、k-mer周期性評価に基づいて大規模ゲノムデータから周期的なDNAやタンパク質の繰り返しを網羅的に探索する新しいソフトウェアSPADE(Search for Patterned DNA Elements)を開発した。SPADEは、ゲノム編集に関連する配列やテトラトリコペプチド、アンキリン、WD40リピートなどの繰り返しドメインを含むタンパク質ファミリーを、配列の周期性というシンプルな制約のもとに、他の限られた繰り返し生体分子配列を対象とした他のソフトウェアに比べて優れた性能で捕捉することができ、新しい生物学的事象や新しいゲノム編集モジュールの発見に貢献できる可能性が高いことを示唆している。
SPADE is out in NAR! Congratulations Hideto! Great work and I really like the simple software concept :) We think lots of biologically important things are still hidden in periodically repeating genomic sequences. Lots to come soon. #CRISPR #genomeediting https://t.co/6fVLkjVBnm
— Nozomu Yachie (@nzmyachie) 2018年10月11日
テストラン
ubuntu18.04LTSのpython2.7環境でテストした(docker使用、ホストmacos10.1.4)。
依存
- Blast+
- mafft
pip install matplotlib==2.2.3 #(*1)
pip install seaborn==0.8.1
pip install weblogo==3.6.0
pip install biopython
本体 Github
https://github.com/yachielab/SPADE
#python2.7の仮想環境で使う
conda create -n python27 python=2.7
conda activate python27
git clone https://github.com/yachielab/SPADE
cd SPADE/
chmod u+x *.py
> python2 SPADE.py -h
# python2 SPADE.py -h
SYNOPSIS
SPADE [-h] [--help] [-in input_file] [-f input_file_format] [-t sequence_type]
[-Nk kmer_size] [-Nw window_size] [-Ns kmer_score_threshold] [-Ng gap_size]
[-Nm region_margin] [-Np period_threshold] [-Nq gap_frequency_threshold]
[-Nu motif_letter_consistency] [-Nr non_consensus_length_threshold]
[-Pk kmer_size] [-Pw window_size] [-Ps kmer_score_threshold] [-Pg gap_size]
[-Pm region_margin] [-Pp period_threshold] [-Pq gap_frequency_threshold]
[-Pu motif_letter_consistency] [-Pr non_consensus_length_threshold]
[--mafft string] [--blast string] [-n num_threads] [-v string] [-d] [--delete]
[-V] [--version]
DESCRIPTION
SPADE 1.0.0
OPTIONAL ARGUMENTS
-h, --help
Print USAGE, DESCRIPTION and ARGUMENTS; ignore all other parameters
-V, --version
Print software version; ignore all other parameters
*** Input query options
-in <File_In>
Input file name
-f <String, Permissible values: ‘genbank’ ‘fasta’ ‘auto’>
Input file type
Default = ‘auto’
-t <String, Permissible values: ‘nucl’ ‘prot’ ‘auto’>
Sequence type, nucleotide (nucl) or protein (prot)
Default = ‘auto’
*** General screening options for nucleotide periodic repeats
-Nk <Integer>
k-mer size
Default = 10
-Nw <Integer>
Size of sliding window to calculate cumulative k-mer distribution
Default = 1000
-Ns <Integer>
Threshold for peak height of each cumulative k-mer count area
Default = 20
-Ng <Integer>
Threshold for gap size between significant k-mer count areas
Default = 200
-Nm <Integer>
Size of margin to be evaluated with each detected highly repetitive region
Default = 1000
-Np <Real>
Periodicity score threshold for each detected highly repetitive region
Default = 0.5
-Nq <Real>
Gap frequency threshold for each position of a repeat motif to be removed
Default = 0.5
-Nu <Real>
Threshold for letter consistency score at each position of a repeat motif
Default = 0.8
-Nr <Integer>
Threshold for length of non-consensus region to be removed from a repeat motif
Default = 5
*** General screening options for protein periodic repeats
-Pk <Integer>
k-mer size
Default = 3
-Pw <Integer>
Size of sliding window to calculate cumulative k-mer distribution
Default = 300
-Ps <Integer>
Threshold for peak height of each cumulative k-mer count area
Default = 6
-Pg <Integer>
Threshold for gap size between significant k-mer count areas
Default = 50
-Pm <Integer>
Size of margin to be evaluated with each detected highly repetitive region
Default = 300
-Pp <Real>
Periodicity score threshold for each detected highly repetitive region
Default = 0.3
-Pq <Real>
Gap frequency threshold for each position of a repeat motif to be removed
Default = 0.5
-Pu <Real>
Threshold for letter consistency score at each position of a repeat motif
Default = 0.8
-Pr <Integer>
Threshold for length of non-consensus region to be removed from a repeat motif
Default = 5
*** MAFFT and BLAST+ options
--mafft <'String'>
Optional arguments for MAFFT can be defined with single quotations
Default = '--auto'
For MAFFT optional arguments, see
https://mafft.cbrc.jp/alignment/software/manual/manual.html
--blastn <'String'>
Optional arguments for BLAST+ can be defined with single quotations
Default = '-strand plus -task blastn-short -penalty -2 –outfmt "6 qseqid qseq sseqid sseq pident qlen length mismatch gapopen qstart qend sstart send gaps evalue bitscore"'
--blastp <'String'>
Optional arguments for BLAST+ can be defined with single quotations
Default = '-task blastp-short –outfmt "6 qseqid qseq sseqid sseq pident qlen length mismatch gapopen qstart qend sstart send gaps evalue bitscore"'
For BLAST+ optional arguments, see
https://www.ncbi.nlm.nih.gov/books/NBK279684/
*** Other options
-n <Integer>
Number of CPU threads. If this is set to more than 1, SPADE runs multiple
processes for multiple sequence entries in parallel.
Default = 1
-v <String, Permissible values: 'Y' 'N'>
Generate pdf files to visualize results for each detected repeat region
Default = Y
-d, --delete
This option deletes descendant output folders of highly repetitive regions
that are detected not to contain periodic repeats
テストラン
genbankファイルを指定する。
SPADE.py -in GCF_000014485.1_ASM1448v1_genomic.gbff
出力

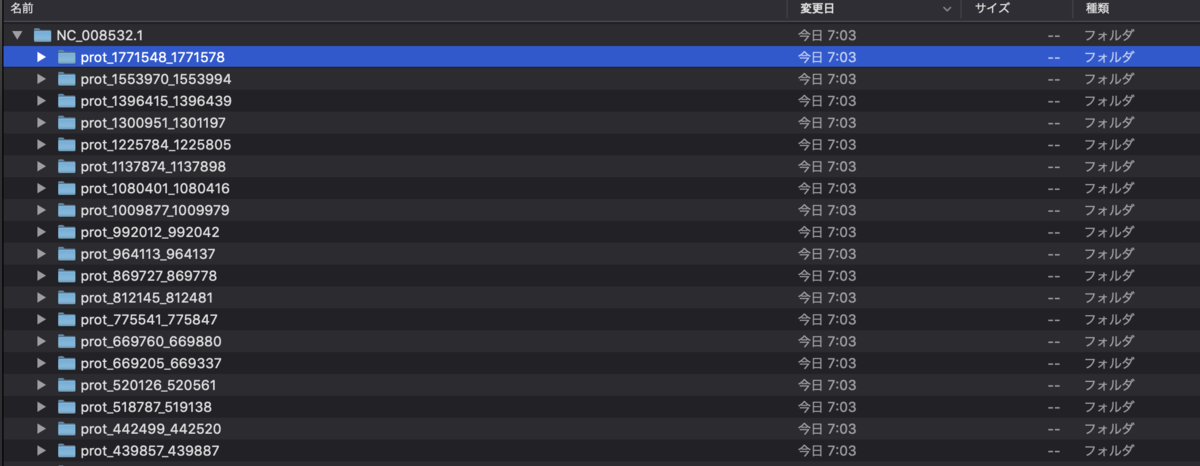

テストファイルには3つのシーケンス(chr + 2plasmids)が含まれている。シーケンスごとにディレクトリが出力されるため、3つのディレクトリが生成される。
それぞれのディレクトリでは、リピートごとにサブフォルダができる。

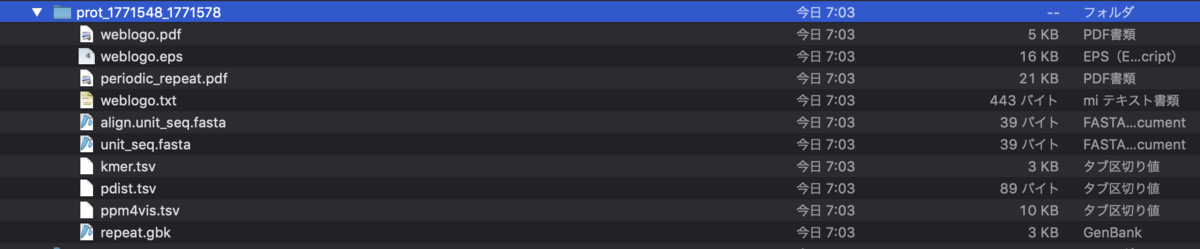

サブフォルダ

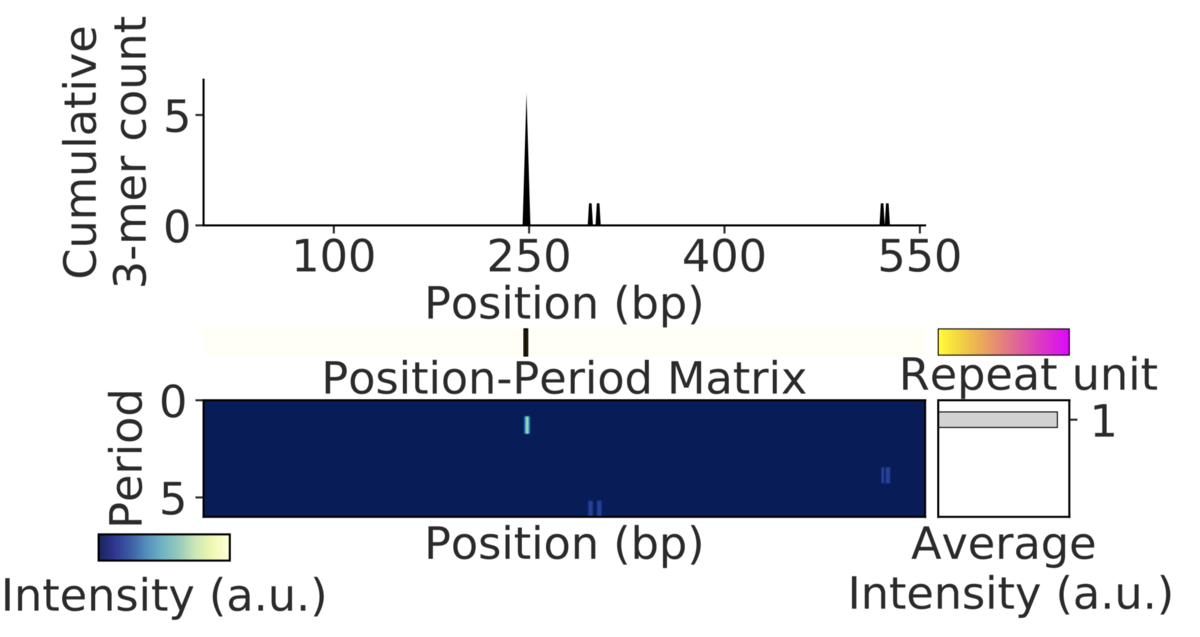

periodic_repeat.pdf
出力についてはGithubで説明されています。確認して下さい。
引用
Fast and global detection of periodic sequence repeats in large genomic resources
Hideto Mori, Daniel Evans-Yamamoto, Soh Ishiguro, Masaru Tomita, Nozomu Yachie
Nucleic Acids Research, Volume 47, Issue 2, 25 January 2019, Page e8
*1
Ghostscriptがないとのエラーが出たので、https://www.ghostscript.com/download/gsdnld.htmlからバイナリをダウンロードしてgsにリネームして/usr/local/binに置いた。
https://stackoverflow.com/questions/53091128/ghostscript-ps2pdf-not-working-correctly-from-matlab
