HiFiロングリードを使ってhaplotype-resolved assemblyを行う Hifiasm

2022/03/26 Hi-Cと組み合わせた論文引用、ツイート追記

2023/02ツイート追記



 Haplotype-resolved de novo assemblyは、ゲノム配列のバリエーションを研究するための究極のソリューションである。しかし、既存のアルゴリズムでは、ヘテロ接合型の対立遺伝子を1つのコンセンサスコピーにresolveするか、ハプロタイプをきれいに分離して高品質の段階的アセンブリを行うことができない。ここでは、 long high-fidelity sequence readsを利用してハプロタイプ情報を忠実に表現する新しいde novoアセンブラであるhifiasmについて述べる。1つのハプロタイプの連続性の維持のみを目的とする他のグラフベースのアセンブラとは異なり、hifiasmはすべてのハプロタイプの連続性を維持することを目指している。この機能により、標準的なトリオビニングよりも大幅に進化したグラフトリオビニングアルゴリズムの開発が可能になった。ヒトとヒト以外の5つのデータセット(約30ギガベースの六倍体ゲノムを持つカリフォルニアレッドウッドを含む)を用いて、hifiasmが既存のツールよりも優れたアセンブリを提供し、haplotype-resolved assemblyにおいて他のツールよりも一貫して優れていることを示した。



レポジトリより

  • Hifiasmは高品質なアセンブリを提供する。Hifiasmは他のアセンブラよりも長いコンティグを生成し、より多くのセグメント重複を解決する傾向がある。

  • 親のシーケンスリードも与えられた場合、hifiasmはこれまでのところ、全体的に最高のhaplotype-resolved assemblyを生成することができる。Human Pangenome Projectがバッチサンプルを対象に選択した最初のアセンブラになった。

  • Hifiasmは、purge_dupsのようなサードパーティ製ツールに頼らずに、ハプロタイプ間の重複をパージすることができる。Hifiasm は pilon や racon のようなポリッシングツールも必要ない。これにより、アセンブリパイプラインが簡素化され、実行時間が短縮される。

  • Hifiasmは高速である。ヒトゲノムを半日でアセンブルし、~30Gbのレッドウッドゲノムを3日でアセンブルすることができる。Hifiasmには大きすぎるゲノムはない。

  • Hifiasmはインストールが簡単で使いやすい。python、R、C++11コンパイラを必要とせず、1つの実行ファイルにコンパイルすることができる。デフォルト設定で様々なゲノムに対応する。





インストール

ubuntu18.04LTSでテストした。レポジトリではmambaによる導入が推奨されているが、ここではcondaコマンドでcondaの仮想環境に導入した。

本体 Github

#from source
git clone https://github.com/chhylp123/hifiasm
cd hifiasm && make

#bioconda (link)
conda install -c bioconda hifiasm -y

hifiasm -h

$ hifiasm -h

Usage: hifiasm [options] <in_1.fq> <in_2.fq> <...>

Options:

  Input/Output:

    -o STR      prefix of output files [hifiasm.asm]

    -i          ignore saved read correction and overlaps

    -t INT      number of threads [1]

    -z INT      length of adapters that should be removed [0]

    --version   show version number

  Overlap/Error correction:

    -k INT      k-mer length (must be <64) [51]

    -w INT      minimizer window size [51]

    -f INT      number of bits for bloom filter; 0 to disable [37]

    -D FLOAT    drop k-mers occurring >FLOAT*coverage times [5.0]

    -N INT      consider up to max(-D*coverage,-N) overlaps for each oriented read [100]

    -r INT      round of correction [3]

  Assembly:

    -a INT      round of assembly cleaning [4]

    -m INT      pop bubbles of <INT in size in contig graphs [10000000]

    -p INT      pop bubbles of <INT in size in unitig graphs [100000]

    -n INT      remove tip unitigs composed of <=INT reads [3]

    -x FLOAT    max overlap drop ratio [0.8]

    -y FLOAT    min overlap drop ratio [0.2]

    -u          disable post join contigs step which may improve N50

    --pb-range  INT

                output contig regions with >=INT% inconsistency in BED format; 0 to disable [0]

  Trio-partition:

    -1 FILE     hap1/paternal k-mer dump generated by "yak count"

    -2 FILE     hap2/maternal k-mer dump generated by "yak count"

    -c INT      lower bound of the binned k-mer's frequency [2]

    -d INT      upper bound of the binned k-mer's frequency [5]

    -3 FILE     list of hap1/paternal read names

    -4 FILE     list of hap2/maternal read names

  Purge-dups:

    -l INT      purge level. 0: no purging; 1: light; 2: aggressive [0 for trio; 2 for unzip]

    -s FLOAT    similarity threshold for duplicate haplotigs [0.75]

    -O INT      min number of overlapped reads for duplicate haplotigs [1]

    --purge-cov INT

                coverage upper bound of Purge-dups [auto]

    --high-het  enable this mode for high heterozygosity sample [experimental, not stable]

Example: ./hifiasm -o NA12878.asm -t 32 NA12878.fq.gz

See `man ./hifiasm.1' for detailed description of these command-line options.



実行方法

HiFiロングリードを指定する。

hifiasm -o outprefix -t 32 input.fq.gz
  • -t <INT>   number of threads [1]
  • -o <STR>  prefix of output files [hifiasm.asm]
  • -i   ignore saved read correction and overlaps

初の実行時、hifiasm は修正されたリードとオーバーラップを outprefix.*.bin としてディスクに保存する。次回以降、保存された結果を利用して時間のかかるall versus allのオーバーラップ計算を回避する。事前に計算されたオーバーラップを無視し、raw readsからオーバーラップをやり直すには "-i" を指定する。



テストラン

wget https://github.com/chhylp123/hifiasm/releases/download/v0.7/chr11-2M.fa.gz
#use -f0 for small datasets
hifiasm -o test -t 12 -f 0 chr11-2M.fa.gz 2> test.log
# get primary contigs in FASTA
awk '/^S/{print ">"$2;print $3}' test.p_ctg.gfa > test.p_ctg.fa
  • -f <INT>   number of bits for bloom filter; 0 to disable [37]

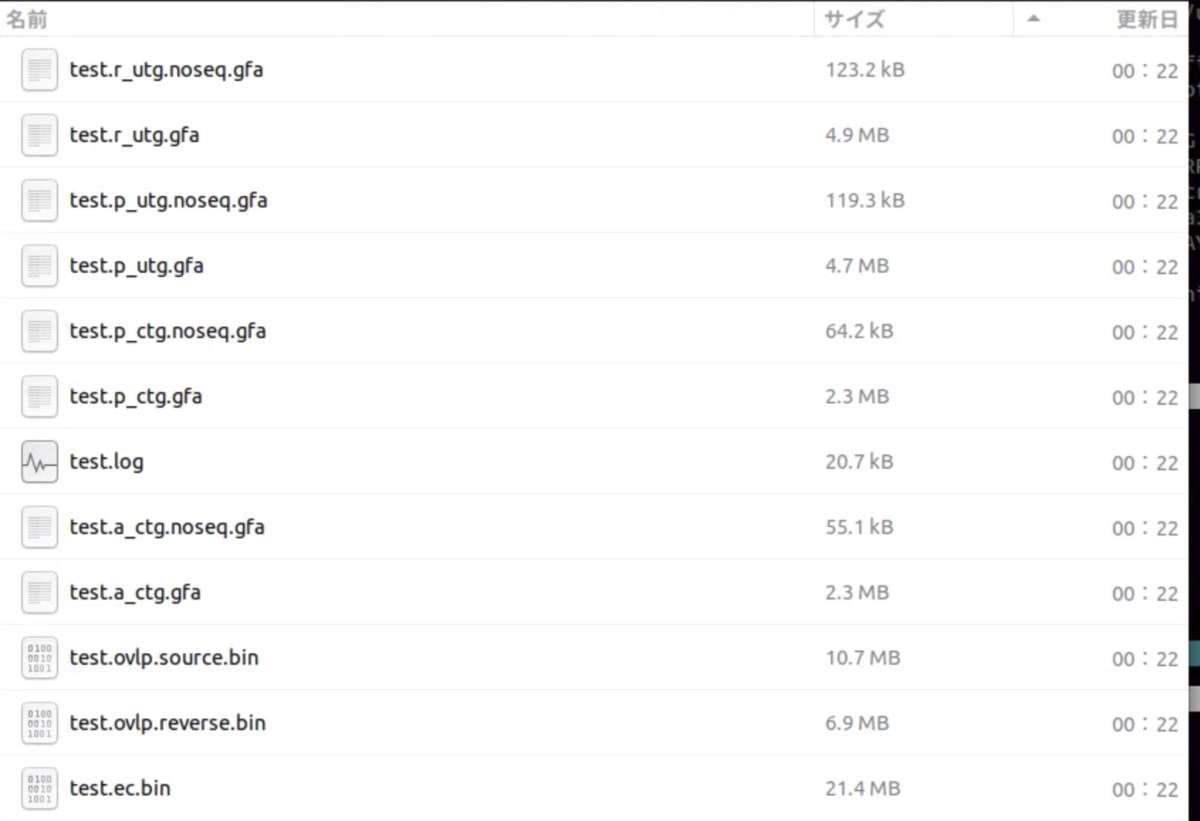

出力

f:id:kazumaxneo:20210106003155p:plain





レポジトリに記載されている実行例

# Assemble inbred/homozygous genomes (-l0 disables duplication purging)
hifiasm -o CHM13.asm -t 32 -l 0 CHM13-HiFi.fa.gz 2> CHM13.asm.log
# Assemble heterozygous with built-in duplication purging
hifiasm -o HG002.asm -t 32 HG002-file1.fq.gz HG002-file2.fq.gz
  • -l <INT>    purge level. 0: no purging; 1: light; 2: aggressive [0 for trio; 2 for unzip]
  • -z <INT>   length of adapters that should be removed [0]
  • -f <INT>    number of bits for bloom filter; 0 to disable [37]

Hifiasmはデフォルトでハプロティグ重複をパージする。Inbredやホモ接合体ゲノムの場合は、"-l 0"オプションでパージを無効にすることができる。古いHiFiリードには、リードの末端に短いアダプター配列が含まれている場合がある。"-z 20" を指定すると、リードの両端を 20bp トリムすることができる。小規模なゲノムの場合は、-f 0を使用して、最初に16GBのメモリを消費するブルームフィルタを無効にする。ヒトよりも大きなゲノムの場合は、"-f 38"や"-f 39"を指定すると、k-merカウントのメモリを節約できる。



Trio binning assembly

# Trio binning assembly (requiring https://github.com/lh3/yak)
yak count -b 37 -t 16 -o pat.yak <(cat pat_1.fq.gz pat_2.fq.gz) <(cat pat_1.fq.gz pat_2.fq.gz)
yak count -b 37 -t 16 -o mat.yak <(cat mat_1.fq.gz mat_2.fq.gz) <(cat mat_1.fq.gz mat_2.fq.gz)
hifiasm -o HG002.asm -t 32 -1 pat.yak -2 mat.yak HG002-HiFi.fa.gz

親のショートリードが利用可能な場合、hifiasmはトリオビニングを用いてhaplotype-resolved assemblyを生成することができる。このようなアセンブリを行うには、まずyak(github)でk-merをカウントしてからアセンブリを行う必要がある。



追記

エラーコレクションされたリードを出力する(hifievalより)。

hifiasm -o outprefix --primary -t 10 --write-ec reads.fastq 2> hifiasm.log

outprefix.ec.faが出力される。





引用

Haplotype-resolved de novo assembly with phased assembly graphs

Haoyu Cheng, Gregory T Concepcion, Xiaowen Feng, Haowen Zhang, Heng Li

arXiv, Submitted on 3 Aug 2020


Haplotype-resolved de novo assembly using phased assembly graphs with hifiasm

Haoyu Cheng, Gregory T. Concepcion, Xiaowen Feng, Haowen Zhang & Heng Li
Nature Methods (2021), Published: 01 February 2021



2022/03/26

Haplotype-resolved assembly of diploid genomes without parental data

Haoyu Cheng, Erich D. Jarvis, Olivier Fedrigo, Klaus-Peter Koepfli, Lara Urban, Neil J. Gemmell & Heng Li
Nature Biotechnology (2022)
