bamを操作する包括的なツールキット BamDeal



BamDeal は bam ファイルの包括的な解析を行うためのフル機能ツールキットである。C/C++ 言語で実装されており、LinuxMac OS X オペレーティングシステムで利用可能である。



インストール

依存

Pre-installations of 4 libraries or softs are required before installing BamDeal

  1. htslib: samtools-1.9/htslib-1.9 1.5 <= htslib <= 1.9
  2. g++ : g++ with --std=c++11 > 4.8+ is recommended
  3. zlib : zlib > 1.2.3 is recommended
  4. R : R with ggplot is recommended

GIthub

リリースからstable releaseをダウンロードできる。

#実行権をつけてリネームする
chmod 755 ./bin/BamDeal_Linux
mv BamDeal_Linux BamDeal

> ./BamDeal_Linux

# ./BamDeal_Linux

Program: BamDeal

Version: 0.24 hewm2008@gmail.com Sep 16 2020



Usage:



convert        convert tools

modify         modify tools

statistics     statistics analysis tools

visualize      visualize tools for bam



Help           Show help in detail



パスの通ったディレクトリにコピーする。

詳細なヘルプ

BamDeal convert

# BamDeal convert



soap2bam        soap    -->  bam/sam Format

bam2soap        bam/sam -->  soap    Format

bam2fq          bam/sam -->  Fastq   Format

bam2fa          bam/sam -->  Fasta   Format



Help            Show this help

BamDeal modify

# BamDeal modify



bamFilter       filter low quality read in bam

bamSplit        split single/muti-Bam by chr

bamAssign       split single/muti-Bam by assign chr

bamCat          Merge/Cat muti (diff header) bam to one bam

bamRand         random out partly of bam read

bamSubChr       extract or remove chr(s) from SAM/BAM

bamShiftQ       modify seq Phred quality in bam

bamLimit        Limit big bam to muti subbam by fix line



Help            Show this help

BamDeal statistics

# BamDeal statistics



Coverage            Calculate Genome Coverage/Depth/GC Dis based Bam

BasesCount          Calculate Genome every Site's four base Depth

DeteCNV             Detect CNV/Deletion Region by merge Depth info based Bam

DeteSV              Detect SV by Pair End Read insert size in Bam

LowDepth            GiveOut bed file of low Depth Region(may BigDeletion)



Help                Show this help

BamDeal visualize

# BamDeal visualize



StatQC              generate plots for quality control

DepthCov            Show Fig of Depth Dis & Depth~Coverage

DepthGC             Show Fig of Depth~RefGC

DepthSlide          Show Manhattan Fig of Depth sliding Windows along genome



Help                Show this help





実行方法

大半のコマンドは、-iでbamファイルの指定、-lで複数bamのリスト指定となっている。bamをリスト指定する場合は、カレントにbamがある場合は

./A.bam

./B.bam

./C.bam

...

という感じで、1行に1つのbamファイルのパスを記載したリストを使う。



BamDeal convert

bam2soap - bam/sam => SOAP bam

BamDeal convert bam2soap -InFile in.bam -OutPut out_SOAP.bam

soap2bam -  SOAP bam => bam/sam

BamDeal convert soap2bam -InSoap in_SOAP.bam -OutBam out.bam -Dict Ref.fa

bam2fq - bam/sam => fastq

BamDeal convert bam2fq -i in.bam -o out.fq
=> out.fq.gzが出力される

bam2fa - bam/sam => fasta

BamDeal convert bam2fa -i in.bam -o out.fa
=> out.fa.gzが出力される



BamDeal modify

bamFilter -低クオリティなリードをフィルタリング

#Q15以下のリード、30bp以下のリード、duplicateリードをフィルタリング
BamDeal modify bamFilter -i in.bam -o out.bam -q 15 -l 30 -d
  • -q   the quality to filter reads, default [15]
  • -l    the length to filter reads, default [30]
  • -s   the beginning of interval containing the 1-based leftmost mapping position of first matching base, default [0]
  • -e   the end of interval containing the 1-based leftmost mapping position of first matching base, default [1e9]
  • -c   specify the chromosome to output, default [all chromosomes]
  • -d   remove the duplicate read

bamSplit -  クロモソームごとにbamを分離

mkdir output_dir
BamDeal modify bamSplit -i in.bam -o output_dir
  • -i    input SAM/BAM files, delimited by space
  • -l    input list of SAM/BAM files
  • -o   output directory, default [PWD]
  • -s   to set the output files in SAM format, default output is in BAM format.
  • -q   reads with quality lower than this would be classified to unmap.bam, default [10]
  • -r   reset output files headers by remove the chromosomes not in the output files

bamAssign - ユーザー指定の組み合わせでbamを分離(詳細はBamDeal modify bamAssign -h参照)

mkdir out_dir
BamDeal modify bamAssign -l list -o output_dir
  • -i    input SAM/BAM files, delimited by space

  • -l    input list of SAM/BAM/CRAM files

  • -a   list indicating how to assign chromosomes to outputs

  • -o   output directory, default [PWD]

  • -q   reads with quality lower than this would be classified to unmap.bam, default [10]

  • -r   reset output files headers by remove the chromosomes not in the output files

bamCat -  bamをマージ

bamCat -i A.bam B.bam -o merged.bam -s
  • -s   output sort bam file when all inputs were sorted

bamRand -  bamをランダムサンプリング

#10 percent
BamDeal modify bamRand -i in.bam -p 0.1 -o out.bam
  • -p   probability with which each read would be outputed, default [0.1]
  • -s   random seed, default [time]

bamSubChr -  bamからリストで指定したchrを削除、または追加

#リストのchrを除去
bamSubChr -i in.bam -d delete.list -o out.bam -r

#リストのchrを追加
bamSubChr -i in.bam -k keep.list -o out.bam -r

#unmapのリードを除去
bamSubChr -i in.bam> -o AAA -u
  • -k   list of chromosomes to be kept
  • -d   list of chromosomes to be deleted
  • -u   remove unmapped reads
  • -r    reset output headers by remove the chr(s) not in the out files

bamShiftQ -  Phred qualityのタイプを修正

#リードのPhred qualityをASCII33に修正して出力
bamShiftQ -i in.bam -o out.bam -p 1

#リードのPhred qualityをASCII64に修正して出力
bamShiftQ -i in.bam -o out.bam -p 2
  • -p   phred quality in output BAM, [1]: ASCII+33 or [2]: ASCII+64, default [1]
  • -q   the quality to filter reads, default [10]
  • -l     the length to filter reads, default [30]

bamLimit -  大きなbamを分割

#最大1000000リードずつ分割
mkdir out_dir
BamDeal modify bamLimit -i in.bam -o out_dir/ -n 1000000
  • -n    max read number for each bam[1000000000]



BamDeal statistics

Coverage - Coverage/Depth/GC分布を調べる

BamDeal statistics Coverage -i in.bam -r  ref.fasta -o outprefix
  • -i   input SAM/BAM files, delimited by space

  • -l   input list of SAM/BAM files

  • -o  prefix of output file

  • -r   input reference FASTA to get Depth-GC wig

  • -w  windows size for Depth-GC wig, default [10000]

  • -b   list of the regions of which the coverage and mean of depth would be given

  • -q   the quality to filter reads, default [10]

  • -d   Filter the duplicated read

BasesCount - 全ポジションのATGC全てのデプスカウント

#3つのbamを調べる。q10以上
BamDeal statistics BasesCount -i A.bam B.bam C.bam -o outprefix -q 10

DeteCNV - CNV/Deletionを検出

BamDeal statistics DeteCNV -i A.bam B.bam -r ref.fasta -m 1000 -o outprefix
  • -f <float> depthRatio to judge breakpoint of merge adjacent[0.45]

  • -c   for each chromosome, use its own mean of depth into calculation default would use the mean of depth of the whole genome
  • -m <int>  set the minimum length of CNV, default [1800]

  • -p <float>  p-value of CNV depth bias, default [0.02]

DeteSV - ペアエンドのインサートサイズ情報を使ってSVを検出

BamDeal statistics DeteSV -i in.bam -r ref.fasta -o outprefix -m 1800

LowDepth - low depthの領域を検出

BamDeal statistics LowDepth -i in.bam -o out.bed -q 10 -s 1000
  • -o    output bed region file
  • -x    set the minimum value of low depth,default[2]
  • -s     the length to filter short region, default [1000]
  • -q    ignore too low mapQ read, default [10]

BamDeal visualize

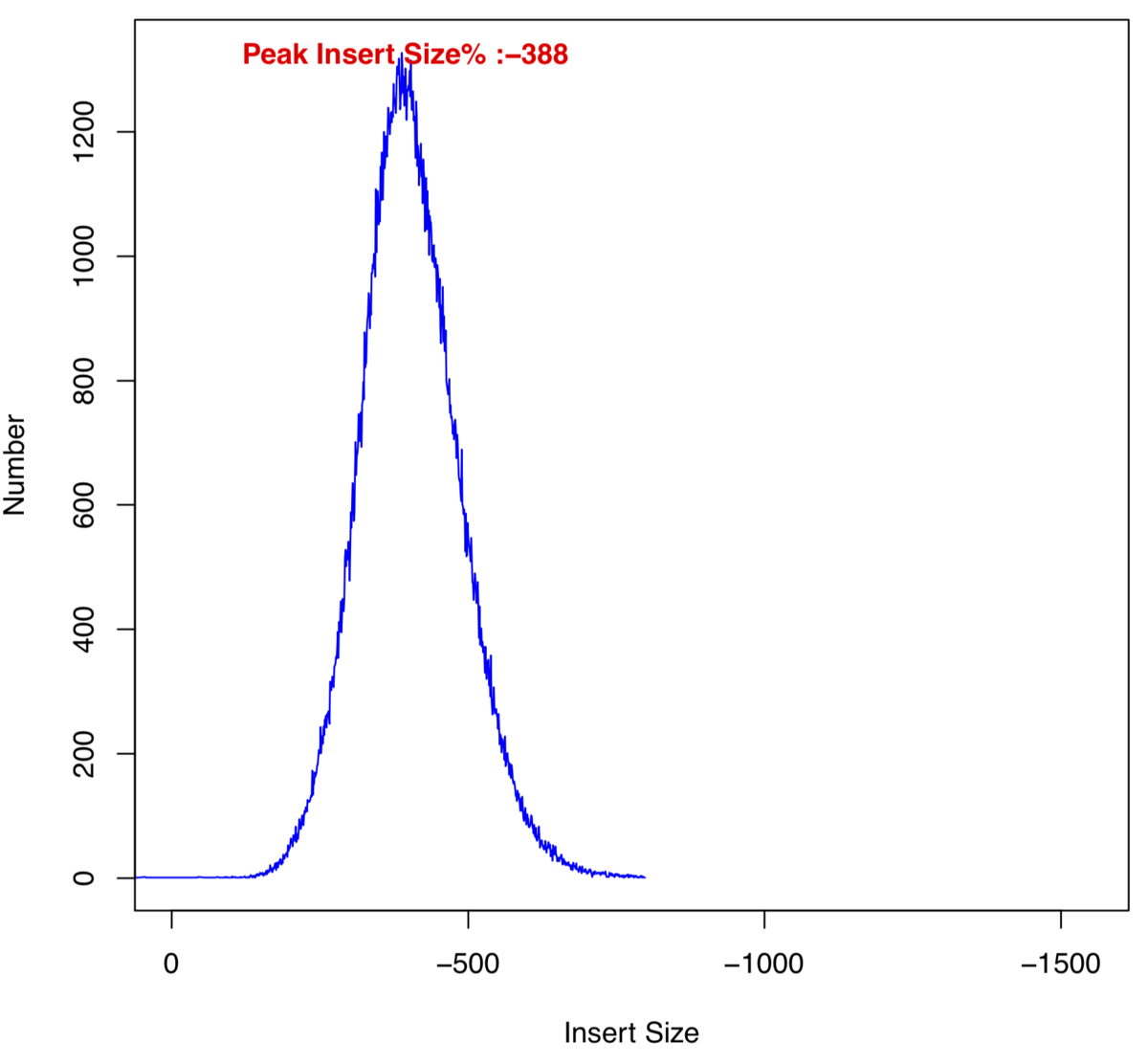

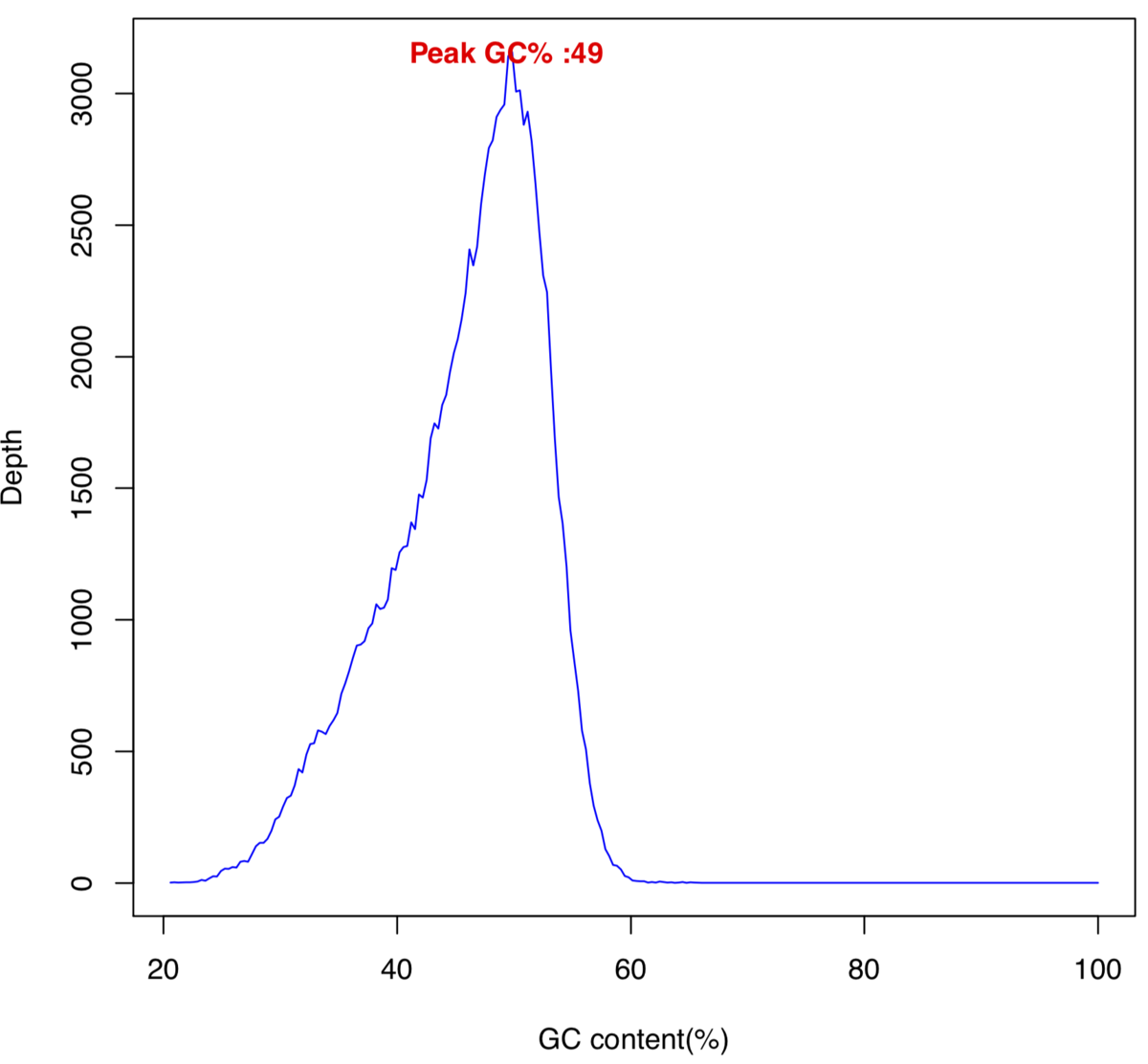

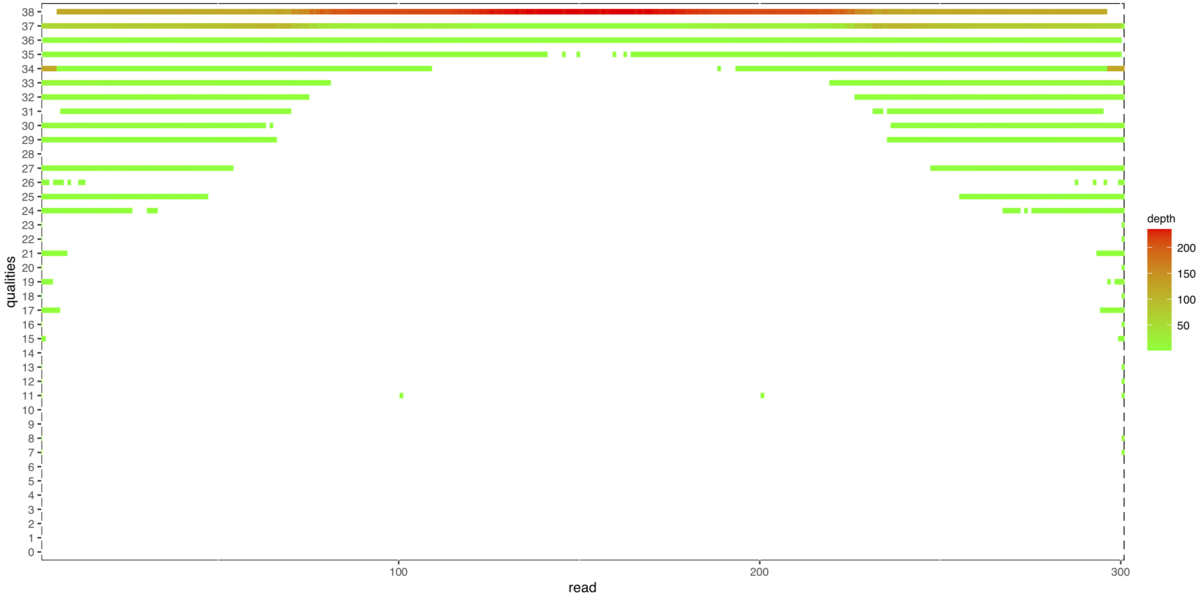

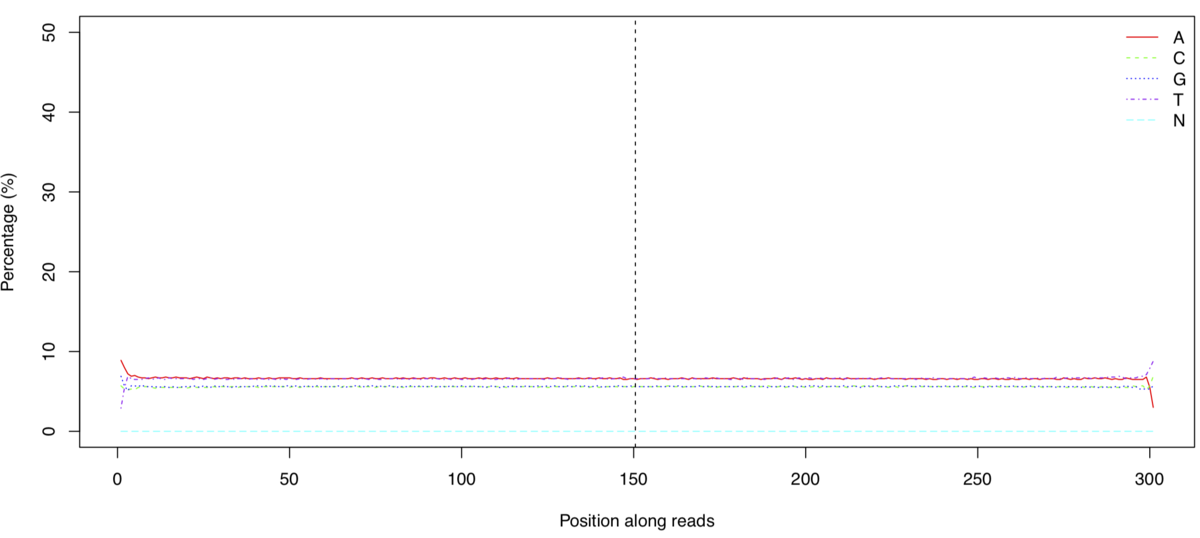

StatQC - クオリティレポート出力(Rのggplot2とreshapeパッケージが必要*1)

BamDeal visualize StatQC -i in.bam -o outdir

#複数bamをlist指定
BamDeal visualize StatQC -i in.bam -o outdir

分析結果のテキストとPDFが出力される。

f:id:kazumaxneo:20200926115012p:plain

f:id:kazumaxneo:20200926115014p:plain

f:id:kazumaxneo:20200926115010p:plain
f:id:kazumaxneo:20200926115007p:plain

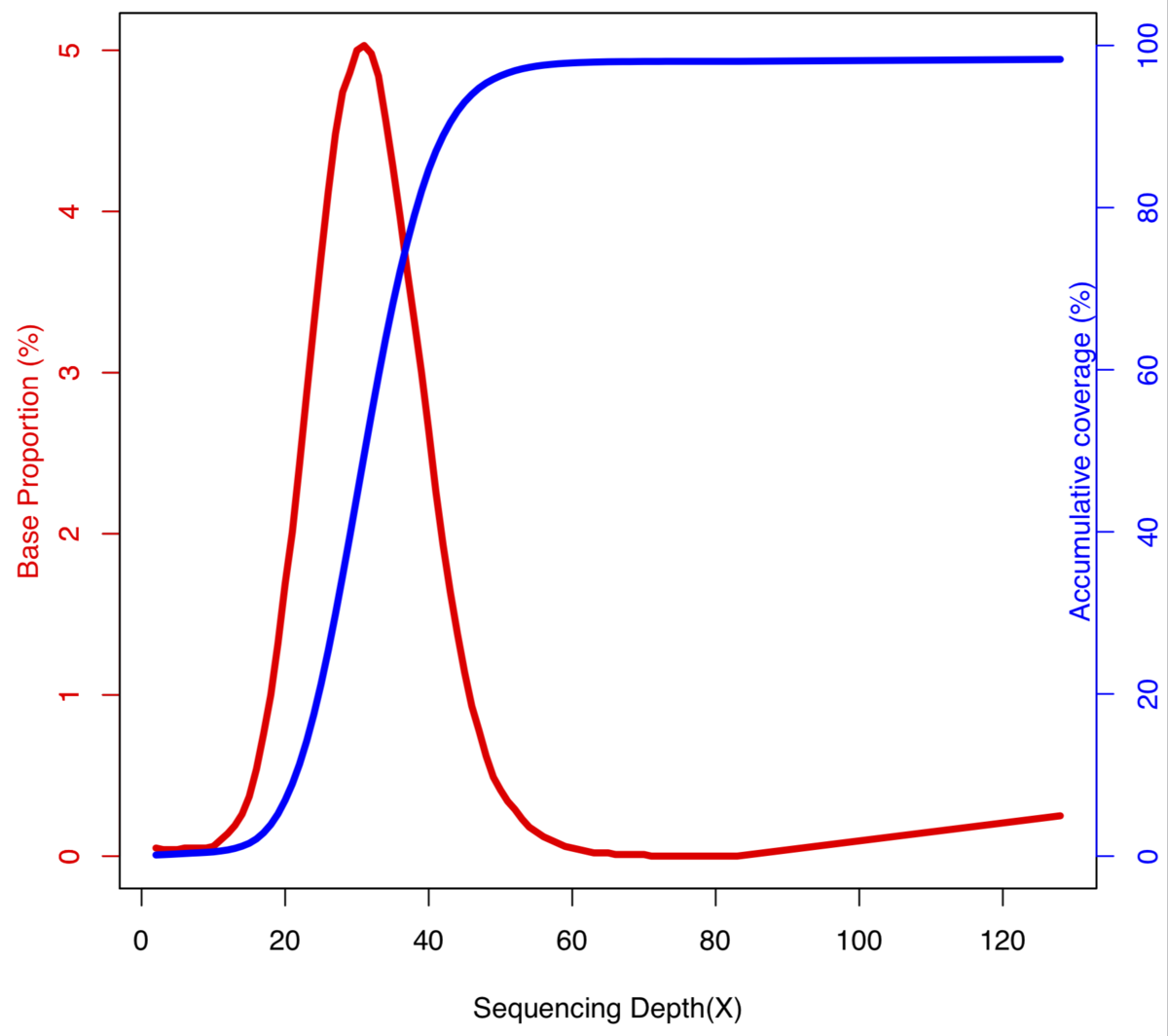

DepthCov - リードデプス出力

BamDeal visualize DepthCov -i in.bam -o out
  • -d    depth along site in reference FASTA
  • -m   x-axis of the plot, default [4*meanDepth]
  • -q    the quality to filter reads, default [10]
  • -k    output the Rscript used to generate plots

f:id:kazumaxneo:20200926115806p:plain

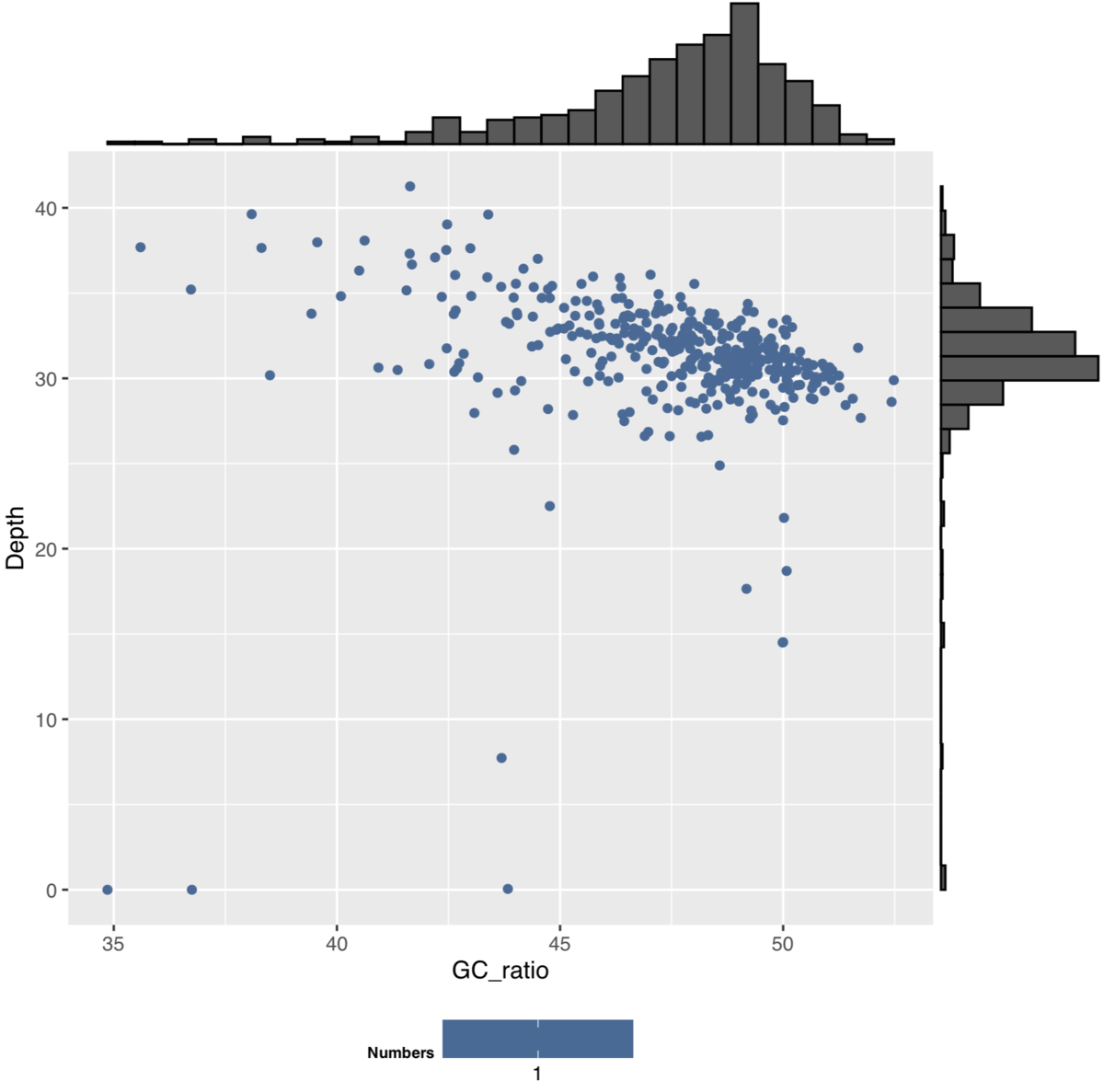

DepthCov - リードデプス-GCプロット出力

BamDeal visualize DepthCov -i in.bam -r ref.fasta -o outprefix -k -q 10
  • -r   input reference FASTA
  • -f   file containing depth and GC content in each window. This file is one of the output files of Bamdeal statistics Coverage.
  • -w  window size to calculate base frequency, default [10000]
  • -q   reads with quality lower than this will be filtered, default [10]
  • -y   maximum of y axis of the plot, default [3*mean of depth]
  • -k   output the Rscript used to generate plots

f:id:kazumaxneo:20200926120648p:plain

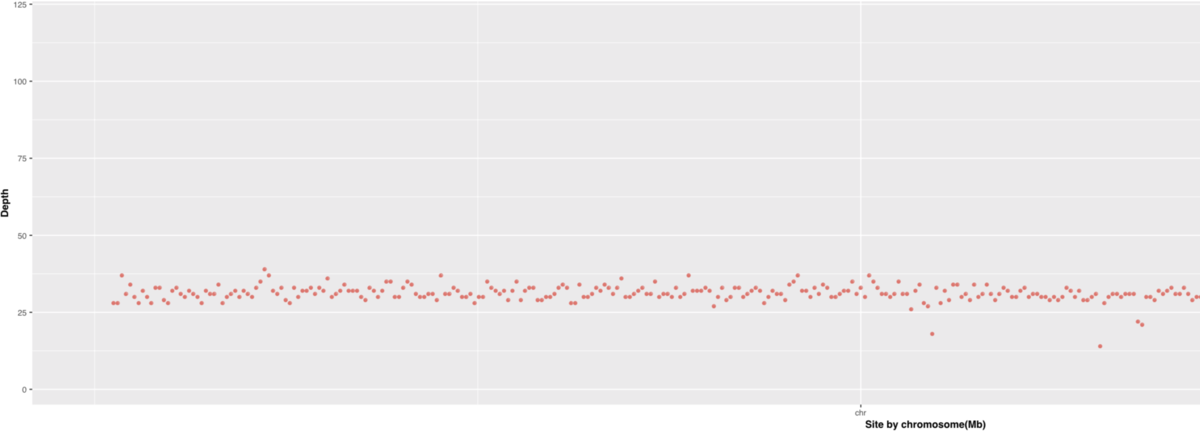

DepthSlide - ゲノムのchr、ポジション順のマンハッタンプロット出力

BamDeal visualize DepthSlide -i in.bam -r ref.fasta -o outprefix
  • -w <int>  window size to calculate base frequency, default [10000]
  • -s <float>  windows sliding ratio (0,1], default [1]
  • -q <int>  reads with quality lower than this will be filtered, default [10]
  • -c <str>  chromosome(s) to draw, delimited by comma. default [all chromosomes]
  • -y <int>  maximum of y axis of the plot, default [4*mean of depth]
  • -k   output the Rscript used to generate plots

f:id:kazumaxneo:20200926120823p:plain

引用

https://github.com/BGI-shenzhen/BamDeal



*1

Rのコンソールで

> install.packages("ggplot2")

> install.packages("reshape")

> install.packages("ggExtra")



このツールは内藤先生のツイートで知りました。ありがとうございました。
