RNA seqのクオリティチェックツール QoRTs

2020 12/9 condaインストール追記、help更新



RNA-Seqは特定のバイアス、エラー、アーチファクトを受けやすく、堅牢で包括的なクオリティコントロールが必要である。QoRTsは幅広いクオリティ分析マトリクスを出力する多機能ソフトウェアパッケージ。様々な角度からRNA seqデータの分析を行い、1つの図で出力する。



Quick manual

https://hartleys.github.io/QoRTs/



インストール

依存

java 1.8

Github リリースよりQoRTs.jarをダウンロードする。PDFマニュアルもある。

https://github.com/hartleys/QoRTs/releases/tag/1.3.0



ランは以下のように行う。"QoRT"だけでランするならエイリアスbash_profile(bash_rc)に書き込んでおく。

#bioconda (link)
mamba create -n qort -y
conda activate qort
mamba install -c bioconda qorts -y
#miniconda/envs/qort/share/に.jarがある。

java -Xmx4G -jar QoRTs.jar QC
#binに移動しておく。
mv QoRTs.jar /usr/local/bin
#エイリアスQoRTsを指定しソースしとく。ここではメモリは
16にした
echo alias QoRTs=\'java -jar -Xmx16G /usr/local/bin/QoRTs.jar \' >> ~/.bash_profile && source ~/.bash_profile

> qorts

$ QoRTs

Starting QoRTs v1.3.6 (Compiled Tue Sep 25 11:21:46 EDT 2018)

Starting time: (Wed Dec 09 17:01:20 JST 2020)

No command given!

GENERAL HELP:

QoRTs: Quality Of Rna-seq Tool Set

version: 1.3.6



DESCRIPTION:

    This jar-file contains the data processing module of the

    software package QoRTs, which is intended for use with

    Paired-End or Single-End High-Throughput RNA-Seq data.

    This tool can perform a number of different functions to assist

    in assessing the data quality, detecting errors or biases,

    performing analyses, data cleaning, data visualization, and data

    formatting.

    NOTE: if you run into OutOfMemoryExceptions,

    try adding the java options: "-Xmx18000M -Xms5000M"



GENERAL SYNTAX:

    java [_java_options_] -jar QoRTs.jar _COMMAND_ [_options_]



COMMANDS:

    QC:                            Runs a battery of QC tools

        This utility runs a large battery of QC / data processing

        tools on a single given sam or bam file. This is the primary

        function of the QoRTs utility. All analyses are run via a

        single pass through the sam/bam file.

        For more info, use:

        java -jar QoRTs.jar --man QC

    mergeCounts:

        This utility merges count, wiggle, and similar data from

        multiple QoRTs QC runs. This is intended for use in merging

        the data from multiple technical replicates of the same

        sample/library.This tool will then merge all count data

        (including gene-level, exon-level, and known/novel

        splice-junction) counts, as well as wiggle files, assuming

        all files use the standard naming conventions (for example,

        the fwd-strand wiggle files must be named:

        "QC.wiggle.fwd.wig.gz", etc).If any files are missing, they

        will be skipped.

        For more info, use:

        java -jar QoRTs.jar --man mergeCounts

    mergeAllCounts:

        This tool uses a replicate decoder to merge count/wiggle

        data of all techical replicates in a dataset, producing

        sample-wise counts. You must supply a replicate decoder

        which indicates which replicates are technical replicates of

        which samples. This tool will then merges each sample's

        technical replicates using the "mergeCounts" function.

        For more info, use:

        java -jar QoRTs.jar --man mergeAllCounts

    bamToWiggle:

        Generates '.wig' wiggle files, suitable for use with the

        UCSC genome browser or similar tools. Wiggle files contain

        depth-of-coverage counts for all equally-sized windows

        across the entire genome. These depth-of-coverage counts can

        be either be by read (the default) or by read-pair.

        For more info, use:

        java -jar QoRTs.jar --man bamToWiggle

    makeJunctionTrack:

        This utility takes the splice junction count files created

        by the QoRTs QC utility across multiple samples and creates

        a single merged splice junction 'bed' file that lists each

        splice junction along with the mean read-pair coverage

        counts (optionally, the mean normalized counts).This splice

        junction bed file can be used to visualize splice junction

        counts using the UCSC genome browser and other similar

        utilities. Note: Either the '--filenames' or the

        '--sampleList' option must be set! The sampleList option is

        generally used with the --infilePrefix and --infileSuffix

        options. Also note: This command only compiles the named

        splice junctions. For other unnamed splice junctions such as

        novel splice junctions with low coverage, or novel splice

        junctions that bridge multiple genes, use the

        makeAltJunctionTrack command instead.

        For more info, use:

        java -jar QoRTs.jar --man makeJunctionTrack

    makeOrphanJunctionTrack:

        This utility takes the 'orphan' splice junction count files

        created by the QoRTs QC utility (optionally across multiple

        samples) and creates a single merged splice junction 'bed'

        file that lists each splice junction along with the

        read-pair coverage counts. It can optionally calculate the

        mean counts, and/or normalize the counts using the supplied

        normalization size factors.The output splice junction bed

        file can be used to visualize splice junction counts using

        the UCSC genome browser, IGV, or other similar

        utilities.Note: Either the '--filenames' or the

        '--sampleList' option MUST be set! The sampleList option is

        generally used with the --infilePrefix and --infileSuffix

        options to determine the input filenames.

        For more info, use:

        java -jar QoRTs.jar --man makeOrphanJunctionTrack

    mergeNovelSplices:

        This utility takes the QC output from the standard QC

        utility run on a series of samples and performs two

        functions: first, it compiles all splice junctions across

        all samples and filters low-coverage novel splice junctions

        by mean coverage across all samples (optionally normalized

        with user-supplied size factors). It then assigns unique

        identifiers to each novel splice junction that passed this

        filter, and outputs a special flat gff file listing all

        exons, annotated splice junctions and passed-filter novel

        splice junctions with assigned unique identifiers for all

        features. Next, it uses these unique identifiers to create a

        new set of JunctionSeq-formatted count files, one for each

        input sample. This new count file will include counts for

        the passed-filter novel splice junctions in addition to the

        usual counts for annotated splice junctions, exons, and

        aggregated-genes, all listed by the assigned unique

        identifiers.

        For more info, use:

        java -jar QoRTs.jar --man mergeNovelSplices

    mergeWig:

        This utility merges multiple '.wig' wiggle files into a

        single summary '.wig' wiggle file. Optionally it can be used

        to display the mean read-pair coverage of each window across

        all input wiggle files rather than the sum. Also optionally,

        the mean/sum can be weighted by a set of user-supplied

        normalization factors.

        Note: Either the '--filenames' or the '--sampleList' option

        must be set! The sampleList option is generally used with

        the --infilePrefix and --infileSuffix options.

        For more info, use:

        java -jar QoRTs.jar --man mergeWig

    makeFlatGff:

        When running the QC command, QoRT first generates a set of

        non-overlapping exonic fragments out of all the exons in the

        genome annotation gtf file. It then assigns each exonic

        fragment a unique identifier. Similarly, it assigns every

        splice junction its own unique identifier. This command can

        be used to write that data to file.

        It can also be used to produce a flattened gff file that

        adheres to the specifications used by DEXSeq.

        For more info, use:

        java -jar QoRTs.jar --man makeFlatGff

    generateSamplePlots:

        This simple function invokes R and generates a simple,

        single-replicate plots (or a similar pdf report) given a

        single replicate's QoRTs QC output.

        For more info, use:

        java -jar QoRTs.jar --man generateSamplePlots

    longReadClassifier:

        This function Classifies long reads (such as those from

        pacbio or oxford nanopore sequencers) It determines which

        reads are matches to the known isoforms supplied in the gene

        annotation.Note that many of the options listed below are

        currently nonfunctional. They are placeholders for future

        improvements and/or holdovers from the QC function, upon

        which this function is built.WARNING! THIS FUNCTION IS BETA!

        For more info, use:

        java -jar QoRTs.jar --man longReadClassifier

    makeSimpleJunctionTrack:

        This utility converts QoRTs splice junction count files into

        bed format. Unlike makeJunctionTrack and

        makeOrphanJunctionTrack, this utility is not designed to

        compile multiple samples or replicates together. It is a

        simple converter from a QoRTs junction count file to a bed

        file. The count files come in 3 types: known, novel, and

        orphan.

        For more info, use:

        java -jar QoRTs.jar --man makeSimpleJunctionTrack

AUTHORS:

    Stephen W. Hartley, Ph.D. stephen.hartley (at nih dot gov)

LEGAL:

    This software is "United States Government Work" under the terms

    of the United States Copyright Act. It was written as part of

    the authors' official duties for the United States Government

    and thus cannot be copyrighted. This software is freely

    available to the public for use without a copyright notice.

    Restrictions cannot be placed on its present or future use.

    Although all reasonable efforts have been taken to ensure the

    accuracy and reliability of the software and data, the National

    Human Genome Research Institute (NHGRI) and the U.S. Government

    does not and cannot warrant the performance or results that may

    be obtained by using this software or data. NHGRI and the U.S.

    Government disclaims all warranties as to performance,

    merchantability  or fitness for any particular purpose.

    In any work or product derived from this material, proper

    attribution of the authors as the source of the software or data

    should be made, using "NHGRI Genome Technology Branch" as the

    citation.

    NOTE: This package includes (internally) the sam-1.113.jar

    library from picard tools. That package uses the MIT license,

    which can be accessed using the command:

     java -jar thisjarfile.jar help samjdkinfo



Done. (Wed Dec 09 17:01:20 JST 2020)

>QoRTs QC man

$ QoRTs QC man

Starting QoRTs v1.3.6 (Compiled Tue Sep 25 11:21:46 EDT 2018)

Starting time: (Wed Dec 09 17:02:21 JST 2020)

NAME

QC

   Version: 1.3.6 (Updated Tue Sep 25 11:21:46 EDT 2018)



USAGE

    java [Java Options] -jar QoRTs.jar QC [options] infile

        gtffile.gtf qcDataDir



DESCRIPTION:

    This utility runs a large battery of QC / data processing tools

    on a single given sam or bam file. This is the primary function

    of the QoRTs utility. All analyses are run via a single pass

    through the sam/bam file.



REQUIRED ARGUMENTS:

    infile

        The input .bam or .sam file of aligned sequencing reads. Or

        '-' to read from stdin.

        (String)

    gtffile.gtf

        The gtf annotation file. This tool was designed to use the

        standard gtf annotations provided by Ensembl, but other

        annotations can be used as well.

        If the filename ends with ".gz" or ".zip", the file will be

        parsed using the appropriate decompression method.

        (String)

    qcDataDir

        The output directory.

        (String)



OPTIONS:

    --singleEnded

        Flag to indicate that reads are single end.

        (flag)



    --stranded

        Flag to indicate that data is stranded.

        (flag)



    --stranded_fr_secondstrand

        Flag to indicate that reads are from a fr_secondstrand type

        of stranded library (equivalent to the "stranded = yes"

        option in HTSeq or the "fr_secondStrand" library-type option

        in TopHat/CuffLinks). If your data is stranded, you must

        know the library type in order to analyze it properly. This

        utility uses the same definitions as cufflinks to define

        strandedness type. By default, the fr_firststrand library

        type is assumed for all stranded data (equivalent to the

        "stranded = reverse" option in HTSeq).

        (flag)



    --maxReadLength len

        Sets the maximum read length. For unclipped datasets this

        option is not necessary since the read length can be

        determined from the data. By default, QoRTs will attempt to

        determine the max read length by examining the first 1000

        reads. If your data is hard-clipped prior to alignment, then

        it is strongly recommended that this option be included, or

        else an error may occur. Note that hard-clipping data prior

        to alignment is generally not recommended, because this

        makes it difficult (or impossible) to determine the

        sequencer read-cycle of each nucleotide base. This may

        obfuscate cycle-specific artifacts, trends, or errors, the

        detection of which is one of the primary purposes of QoRTs!

        In addition, hard clipping (whether before or after

        alignment) removes quality score data, and thus quality

        score metrics may be misleadingly optimistic. A MUCH

        preferable method of removing undesired sequence is to

        replace such sequence with N's, which preserves the quality

        score and the sequencer cycle information while still

        removing undesired sequence.

        (Int)



    --minMAPQ num

        Filter out reads with less than the given MAPQ. Most RNA-Seq

        aligners use the MAPQ field to differentiate uniquely-mapped

        and multi-mapped reads. However, different aligners use a

        different MAPQ conventions. By default, all reads with a

        MAPQ of less than 255 will be excluded, as this is the MAPQ

        associated with uniquely-aligned reads generated by the

        RNA-STAR aligner. For use with TopHat2 you should set this

        to 50. The MAPQ behavior for GSNAP is not well documented,

        but it appears that a filtering threshold of 30 should be

        adequate. Set this to 0 to turn off mapq filtering.

        (Int)



    --generatePlots

        Generate all single-replicate QC plots. Equivalent to the

        combination of: --generateMultiPlot --generateSeparatePlots

        and --generatePdfReport. This option will cause QoRTs to

        make an Rscript system call, loading the R package QoRTs.

        (Note: this requires that R be installed and in the PATH,

        and that QoRTs be installed on that R installation)

        (flag)



    --testRun

        Flag to indicate that only the first 100k reads should be

        read in. Used for testing.

        (flag)



    --keepMultiMapped

        Flag to indicate that the tool should NOT filter out

        multi-mapped reads. Note that even with this flag raised

        this utility will still only use the 'primary' alignment

        location for each read. By default any reads that are marked

        as multi-mapped will be ignored entirely. Most aligners use

        the MAPQ value to mark multi-mapped reads. Any read with

        MAPQ < 255 is assumed to be non-uniquely mapped (this is the

        standard used by RNA-STAR and TopHat/TopHat2). This option

        is equivalent to "--minMAPQ 0".

        (flag)



    --noGzipOutput

        Flag to indicate that output files should NOT be compressed

        into the gzip format. By default almost all output files are

        compressed to save space.

        (flag)



    --readGroup readGroupName

        If this option is set, all analyses will be restricted to

        ONLY reads that are tagged with the given readGroupName

        (using an RG tag). This can be used if multiple read-groups

        have already been combined into a single bam file, but you

        want to summarize each read-group separately.

        (String)



    --dropChrom dropChromosomes

        A comma-delimited list of chromosomes to ignore and exclude

        from all analyses. Important: no whitespace!

        (CommaDelimitedListOfStrings)



    --skipFunctions func1,func2,...

        A list of functions to skip (comma-delimited, no

        whitespace). See the sub-functions list, below. The

        default-on functions are: NVC, GCDistribution, GeneCalcs,

        readLengthDistro, QualityScoreDistribution,

        writeJunctionSeqCounts, writeKnownSplices,

        writeNovelSplices, writeClippedNVC, CigarOpDistribution,

        overlapMatch, cigarLocusCounts, InsertSize, chromCounts,

        writeSpliceExon, writeGenewiseGeneBody, JunctionCalcs,

        writeGeneCounts, writeBiotypeCounts, writeDESeq,

        writeDEXSeq, writeGeneBody, StrandCheck

        (CommaDelimitedListOfStrings)



    --addFunctions func1,func2,...

        A list of functions to add (comma-delimited, no whitespace).

        This can be used to add functions that are off by default.

        Followed by a comma delimited list, with no internal

        whitespace. See the sub-functions list, below. The

        default-off functions are: mismatchEngine,

        annotatedSpliceExonCounts, calcOnTarget, FPKM, cigarMatch,

        testDataDump, writeGeneBodyIv, fastqUtils, referenceMatch,

        writeDocs, makeJunctionBed, makeWiggles,

        makeAllBrowserTracks, calcDetailedGeneCounts

        (CommaDelimitedListOfStrings)



    --runFunctions func1,func2,...

        The complete list of functions to run (comma-delimited, no

        whitespace). Setting this option runs ONLY for the functions

        explicitly requested here (along with any functions upon

        which the assigned functions are dependent). See the

        sub-functions list, below. Allowed options are: NVC,

        mismatchEngine, annotatedSpliceExonCounts, GCDistribution,

        calcOnTarget, GeneCalcs, FPKM, readLengthDistro, cigarMatch,

        QualityScoreDistribution, testDataDump,

        writeJunctionSeqCounts, writeKnownSplices,

        writeNovelSplices, writeClippedNVC, CigarOpDistribution,

        overlapMatch, cigarLocusCounts, InsertSize, chromCounts,

        writeGeneBodyIv, fastqUtils, writeSpliceExon,

        referenceMatch, writeGenewiseGeneBody, JunctionCalcs,

        writeGeneCounts, writeDocs, makeJunctionBed,

        writeBiotypeCounts, writeDESeq, writeDEXSeq, makeWiggles,

        writeGeneBody, StrandCheck, makeAllBrowserTracks,

        calcDetailedGeneCounts

        (CommaDelimitedListOfStrings)



    --seqReadCt val

        (Optional) The total number of reads (or read-pairs, for

        paired-end data) generated by the sequencer for this sample,

        prior to alignment. This will be passed on into the

        QC.summary.txt file and used to calculate mapping rate.

        (Int)



    --rawfastq myfastq.1.fq.gz,myfastq.2.fq.gz

        (Optional) The raw fastq, prior to alignment. In normal

        operation, this is used ONLY to calculate the number of

        pre-alignment reads (or read-pairs) simply by counting the

        number of lines and dividing by 4. Alternatively, the number

        of pre-alignment read-pairs can be included explicitly via

        the --seqReadCt option, or added in the plotting /

        cross-comparison step by including the input.read.pair.count

        column in the replicate decoder.In general, the --seqReadCt

        option is recommended when available.

        Certain optional QC functions are also available that

        utilize the raw Fastq file in other ways. If the filename

        ends with ".gz" or ".zip", the file will be parsed using the

        appropriate decompression method.

        (CommaDelimitedListOfStrings)



    --chromSizes chrom.sizes.txt

        A chrom.sizes file. The first (tab-delimited) column must

        contain all chromosomes found in the dataset. The second

        column must contain chromosome sizes (in base-pairs). If a

        standard genome is being used, it is strongly recommended

        that this be generated by the UCSC utility

        'fetchChromSizes'.

        This file is ONLY needed to produce wiggle files. If this is

        provided, then by default QoRTs will produce 100-bp-window

        wiggle files (and junction '.bed' files) for the supplied

        data.In order to produce wiggle files, this parameter is

        REQUIRED.

        (String)



    --title myTitle

        The title of the replicate. Used for the track name in the

        track definition line of any browser tracks ('.wig' or

        '.bed' files) generated by this utility. Also may be used in

        the figure text, if figures are being generated.Note that no

        browser tracks will be created by default, unless the

        '--chromSizes' option is set. Bed files can also be

        generated using the option '--addFunction makeJunctionBed'

        (String)



    --flatgff flattenedGffFile.gff.gz

        A "flattened" gff file that matches the standard gtf file.

        Optional. The "flattened" gff file assigns unique

        identifiers for all exons, splice junctions, and

        aggregate-genes. This is used for the junction counts and

        exon counts (for DEXSeq). The flattened gtf file can be

        generated using the "makeFlatGff" command. Flattened GFF

        files containing novel splice junctions can be generated

        using the "mergeNovelSplices" function. Note that (for most

        purposes) the command should be run with the same

        strandedness code as found in the dataset. Running a

        flattened gff that was generated using a different

        strandedness mode may be useful for certain purposes, but is

        generally not supported and is for advanced users only.See

        the documentation for makeFlatGff for more information.

        If the filename ends with ".gz" or ".zip", the file will be

        parsed using the appropriate decompression method.

        (String)



    --generateMultiPlot

        Generate a multi-frame figure, containing a visual summary

        of all QC stats. (Note: this requires that R be installed

        and in the PATH, and that QoRTs be installed on that R

        installation)

        (flag)



    --generateSeparatePlots

        Generate seperate plots for each QC stat, rather than only

        one big multiplot. (Note: this requires that R be installed

        and in the PATH, and that QoRTs be installed on that R

        installation)

        (flag)



    --generatePdfReport

        Generate a pdf report. (Note: this requires that R be

        installed and in the PATH, and that QoRTs be installed on

        that R installation)

        (flag)



    --prefilterImproperPairs

        If this parameter is used, QoRTs will ignore all reads that

        lack the 0x2 flag, which indicates that the read is properly

        paired. It will not attempt to match such reads into pairs.

        This option may be necessary with certain aligners

        (including BWA). Note that if this filter is used, QoRTs

        will not tally improperly paired reads.

        (flag)



    --adjustPhredScore val

        QoRTs expects input files to conform to the SAM format

        specification, which requires all Phred scores to be in

        Phred+33 encoding. However some older tools produce SAM

        files with nonstandard encodings. To read such data, you can

        set this parameter to subtract from the apparent (phred+33)

        phred score. Thus, to read Phred+64 data (produced by

        Illumina v1.3-1.7), set this parameter to 31. Note: QoRTs

        does not support negative Phred scores. NOTE: THIS OPTION IS

        EXPERIMENTAL!

        (Int)



    --maxPhredScore val

        According to the standard FASTQ and SAM format

        specification, Phred quality scores are supposed to range

        from 0 to 41. However, certain sequencing machines such as

        the HiSeq4000 supposedly produce occasional quality scores

        as high as 45. If your dataset contains quality scores in

        excess of 41, then you must use this option to set the

        maximum legal quality score. Otherwise, QoRTs will throw an

        error.

        (Int)



    --summaryFileSuffix .summary.txt

        The suffix of the 'summary' file. This is useful to set if

        you want to run multiple QC runs in parallel to reduce

        runtime, without overwriting one another's summary files.In

        particular, the NVC metrics often take a long time to run,

        so splitting those off using the --runFunctions parameter

        might speed things up considerably. Note that 'QC' will be

        appended in the actual filename. THIS OPTION IS BETA!

        (String)



    --extractReadsByMetric metric=value

        THIS OPTIONAL PARAMETER IS STILL UNDER BETA TESTING. This

        parameter allows the user to extract anomalous reads that

        showed up in previous QoRTs runs. Currently reads can be

        extracted based on the following metrics: StrandTestStatus,

        InsertSize and GCcount.

        (String)



    --keepOnlyOnTarget

        Experimental flag. Ignores reads that DO NOT fall within the

        target region (specified by the required bedfile using the

        --targetRegionBed parameter).

        (flag)



    --dropOnTarget

        Experimental flag. Ignores reads that DO fall within the

        target region (specified by the required bedfile using the

        --targetRegionBed parameter).

        (flag)



    --randomSubsample 1.00

        If this option is set, QoRTs will ignore a random fraction

        of the input read pairs. This can drastically reduce

        runtime, though it may reduce the accuracy of the output QC

        metrics.

        (Double)



    --restrictToGeneList geneList.txt

        If this option is set, almost all analyses will be

        restricted to reads that are found on genes named in the

        supplied gene list file. The file should contain a gene ID

        on each line and nothing else. The only functions that will

        be run on the full set of all reads will be the functions

        that calculate the gene mapping itself. NOTE: if you want to

        include ambiguous reads, include a line with the text:

        '_ambiguous'. If you want to include reads that do not map

        to any known feature, include a line with the text:

        '_no_feature'. WARNING: this is not intended for default

        use. It is intended to be used when re-running QoRTs, with

        the intention of examining artifacts that can be caused in

        various plots by a small number of genes with extremely high

        coverage. For example, GC content plots sometimes contain

        visible spikes caused by small mitochondrial genes with

        extremely high expression.ADDITIONAL WARNING: This feature

        is in BETA, and is not yet fully tested.

        (String)



    --dropGeneList geneList.txt

        If this option is set, almost all analyses will be

        restricted to reads that are NOT found on genes named in the

        supplied gene list file. The file should contain a gene ID

        on each line and nothing else. The only functions that will

        be run on the full set of all reads will be the functions

        that calculate the gene mapping itself. NOTE: if you want to

        EXCLUDE ambiguous reads, include a line with the text:

        '_ambiguous'. If you want to EXCLUDE reads that do not map

        to any known feature, include a line with the text:

        '_no_feature'. WARNING: this is not intended for default

        use. It is intended to be used when re-running QoRTs, with

        the intention of examining artifacts that can be caused by

        certain individual 'problem genes'. For example, GC content

        plots sometimes contain visible spikes caused by small

        transcripts / RNA's with extremely high expression

        levels.ADDITIONAL WARNING: This feature is in BETA, and is

        not yet fully tested.

        (String)



    --DNA

        BETA: This flag makes various changes to allow QoRTs to run

        on whole-exome or whole-genome DNA-Seq data.

        (flag)



    --RNA

        Indicates that the data is RNA-Seq (this is the default:

        flag does nothing).

        (flag)



    --genomeFA chr.fa.gz[,chr2.fa,...]

        Reference genome sequence. This can either be a single FASTA

        file with all the chromosomes included, or a comma-delimited

        list of fasta files with 1 chromosome each. Note: IF

        multiple fasta files are specificed, each must contain ONLY

        ONE chromosome. If a single multi-chromosome fasta file is

        specificed, performance will be improved if the chromosomes

        are in the same order as they are found in the BAM file,

        however, this is not required. The genomic sequence is used

        by certain experimental sub-utilities (currently only the

        referenceMatch utility). Comma delimited, no spaces. Fasta

        files can be in plaintext, gzipped or zipped.

        (CommaDelimitedListOfStrings)



    --genomeBufferSize val

        The size of the genome fasta buffer. Tuning this parameter

        may improve performance.

        (Int)



    --outfilePrefix sampID

        Prefix to be prepended to all output files. If this is set,

        all output files will use the format:

        "outfiledir/<prefix>QC.qcfilename.txt.gz"

        (String)



    --nameSorted

        DEPRECATED: Relevant for paired-end reads only.

        This flag is used to run QoRTs in "name-sorted" mode. This

        flag is optional, as under the default mode QoRTs will

        accept BAM files sorted by either name OR position. However,

        The only actual requirement in this mode is that read pairs

        be adjacent.

        Errors may occur if the SAM flags are inconsistent: for

        example, if orphaned reads appear with the "mate mapped" SAM

        flag set.

        (flag)



    --coordSorted

        DEPRECATED: this mode is now subsumed by the default mode

        and as such this parameter is now nonfunctional.

        Note that, in the default mode, for paired-end data QoRTs

        will accept EITHER coordinate-sorted OR name-sorted bam

        files. In "--nameSorted" mode, QoRTs ONLY accepts

        name-sorted bam files.

        If a large fraction of the read-pairs are mapped to

        extremely distant loci (or to different chromosomes), then

        memory issues may arise. However, this should not be a

        problem with most datasets. Technically by default QoRTs can

        run on arbitrarily-ordered bam files, but this is STRONGLY

        not recommended, as memory usage will by greatly increased.

        (flag)



    --fileContainsNoMultiMappedReads

        DEPRECATED. Flag to indicate that the input sam/bam file

        contains only primary alignments (ie, no multi-mapped

        reads). This flag is ALWAYS OPTIONAL, but when applicable

        this utility will run (slightly) faster when using this

        argument. (DEPRECIATED! The performance improvement was

        marginal)

        (flag)



    --parallelFileRead

        DEPRECATED: DO NOT USE. Flag to indicate that bam file

        reading should be run in paralell for increased speed. Note

        that in this mode you CANNOT read from stdin. Also note that

        for this to do anything useful, the numThreads option must

        be set to some number greater than 1. Also note that

        additional threads above 9 will have no appreciable affect

        on speed.

        (flag)



    --numThreads num

        DEPRECIATED, nonfunctional.

        (Int)



    --checkForAlignmentBlocks

        Certain aligners will mark reads 'aligned' even though they

        have no aligned bases. This option will automatically check

        for some reads and ignore them, rather than throwing an

        error.

        (flag)



    --targetRegionBed targetRegion.bed

        For whole exome sequencing, this specifies the exome target

        regions.

        (String)



    --stopAfterNReads n

        Stop after reading in n reads or read-pairs.

        (Int)



    --randomSeed n

        Use specified random seed.

        (Long)



    --parseIlluminaStyleReadIDs

        Specifies that the read-names are in the illumina style.

        CURRENTLY NONFUNCTIONAL!

        (flag)



    --verbose

        Flag to indicate that debugging information and extra

        progress information should be sent to stderr.

        (flag)



    --quiet

        Flag to indicate that only errors and warnings should be

        sent to stderr.

        (flag)



DEFAULT SUB-FUNCTIONS

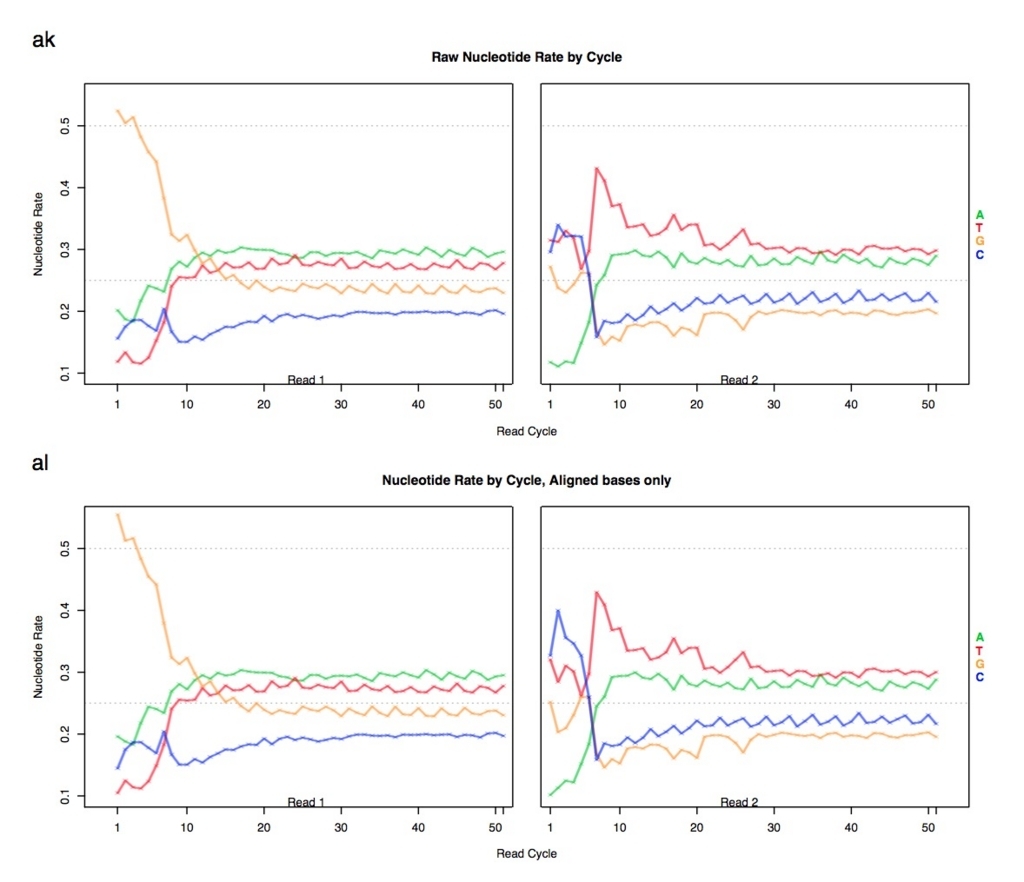

    NVC

        Nucleotide-vs-Cycle counts.

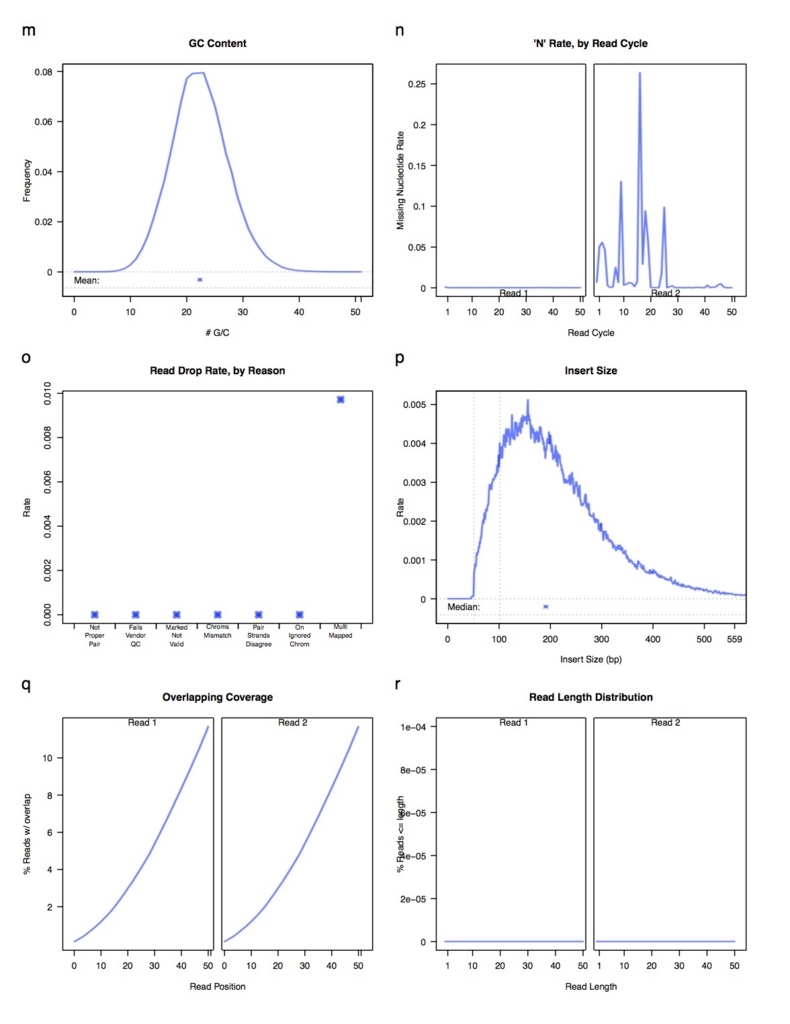

    GCDistribution

        Calculate GC content distribution.

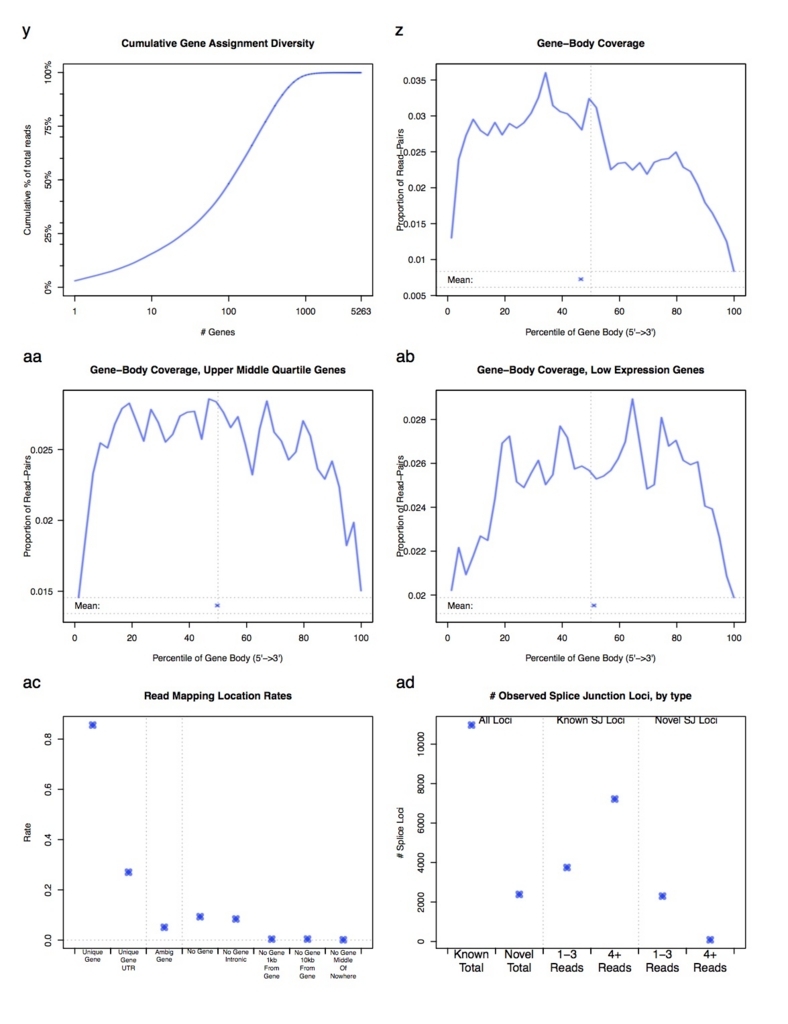

    GeneCalcs

        Find gene assignment and gene body calculations.

    readLengthDistro

        Tabulates the distribution of read lengths.

    QualityScoreDistribution

        Calculate quality scores by cycle.

    writeJunctionSeqCounts

        Write counts file designed for use with JunctionSeq

        (contains known splice junctions, gene counts, and exon

        counts). [Depends: writeSpliceExon]

    writeKnownSplices

        Write known splice junction counts. [Depends: JunctionCalcs]

    writeNovelSplices

        Write novel splice junction counts. [Depends: JunctionCalcs]

    writeClippedNVC

        Write NVC file containing clipped sequences. [Depends: NVC]

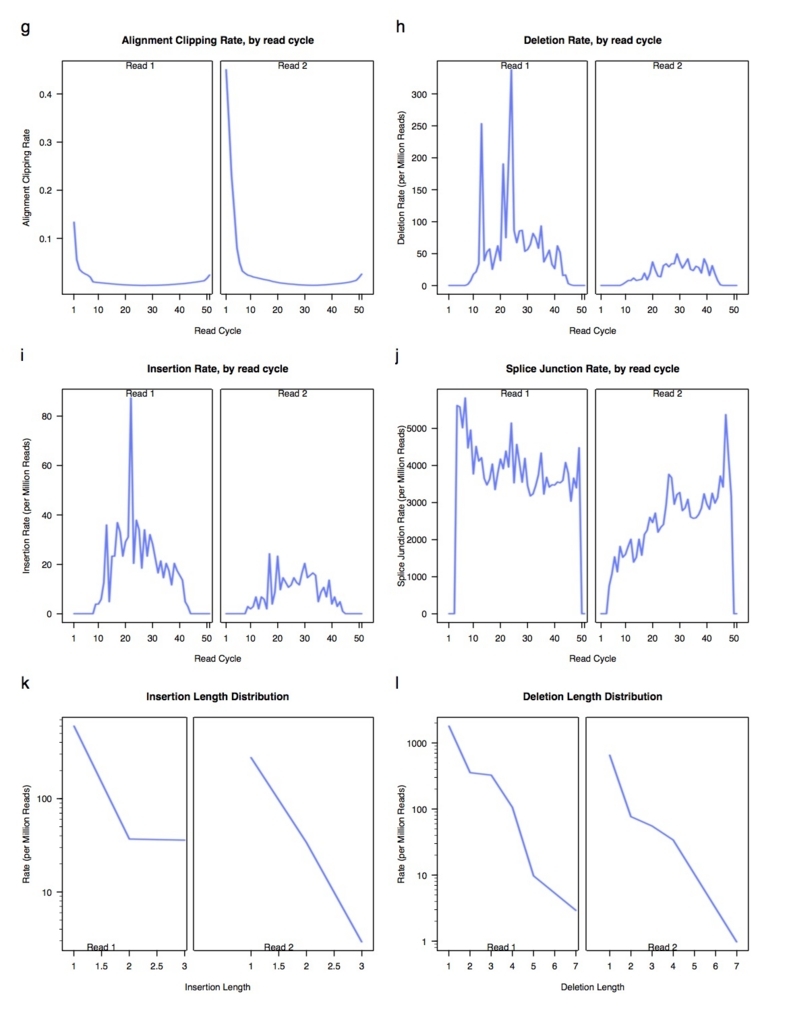

    CigarOpDistribution

        Cigar operation rates by cycle and cigar operation length

        rates (deletions, insertions, splicing, clipping, etc).

    overlapMatch

        BETA: This function calculates the matching of overlapping

        sections of paired reads. [Depends: mismatchEngine]

    cigarLocusCounts

        BETA: This function is still undergoing basic testing. It is

        not intended for production use at this time.

    InsertSize

        Insert size distribution (paired-end data only).

    chromCounts

        Calculate chromosome counts

    writeSpliceExon

        Synonym for function "writeJunctionSeqCounts" (for

        backwards-compatibility) [Depends: JunctionCalcs]

    writeGenewiseGeneBody

        Write file containing gene-body distributions for each

        (non-overlapping) gene. [Depends: writeGeneBody]

    JunctionCalcs

        Find splice junctions (both novel and annotated).

    writeGeneCounts

        Write extended gene-level read/read-pair counts file

        (includes counts for CDS/UTR, ambiguous regions, etc).

        [Depends: GeneCalcs]

    writeBiotypeCounts

        Write a table listing read counts for each gene BioType

        (uses the optional "gene_biotype" GTF attribute). [Depends:

        GeneCalcs]

    writeDESeq

        Write gene-level read/read-pair counts file, suitable for

        use with DESeq, EdgeR, etc. [Depends: GeneCalcs]

    writeDEXSeq

        Write exon-level read/read-pair counts file, designed for

        use with DEXSeq. [Depends: JunctionCalcs]

    writeGeneBody

        Write gene-body distribution file. [Depends: GeneCalcs]

    StrandCheck

        Check the strandedness of the data. Note that if the

        stranded option is set incorrectly, this tool will

        automatically print a warning to that effect.

NON-DEFAULT SUB-FUNCTIONS

    mismatchEngine

        Internal module that runs overlap/reference mismatch

        calculations. Automatically included on any runs that

        include these functions.

    annotatedSpliceExonCounts

        Write counts for exons, known-splice-junctions, and genes,

        with annotation columns indicating chromosome, etc (default:

        OFF) [Depends: JunctionCalcs]

    calcOnTarget

        BETA: requires --targetRegionBed parameter. This function

        calculates the rates at which reads intersect with the

        On-Target area. Intended for whole exome sequencing data.

        Make sure to use the --targetRegionBed parameter or else

        this function will deactivate! (Default: ON iff

        targetRegionBed param is found)

    FPKM

        Write FPKM values. Note: FPKMs are generally NOT the

        recommended normalization method. We recommend using a more

        advanced normalization as provided by DESeq, edgeR,

        CuffLinks, or similar (default: OFF)

    cigarMatch

        Work-In-Progress: this function is a placeholder for future

        functionality, and is not intended for use at this time.

        (default: OFF)

    testDataDump

        EXPERIMENTAL: This function dumps a bunch of information for

        internal testing purposes. NOT FOR GENERAL USE! (default:

        OFF)

    writeGeneBodyIv

        Writes an optional additional file detailing the intervals

        used in the gene-body coverage calculations

        ("QC.geneBodyCoverage.DEBUG.intervals.txt.gz") (default:

        OFF) [Depends: writeGeneBody]

    fastqUtils

        BETA: requires --rawfastq parameter. Adds additional tests

        that use the supplied raw fastq file. Requires that one (or

        two) fastq files be supplied. (Default: ON iff rawfastq

        param is found)

    referenceMatch

        BETA: requires --genomeFA parameter. This function

        calculates the matching against the reference. Requires the

        specification of genome fasta file(s). REQUIRES

        COORDINATE-SORTED BAM FILES! REQUIRES THAT FA AND BAM HAVE

        THE SAME CHROMOSOME ORDERING! (Default: ON iff genomeFA

        param is found) [Depends: mismatchEngine]

    writeDocs

        Writes a QC.documentation.txt file that documents all output

        files.

    makeJunctionBed

        Write splice-junction count "bed" files. (default: OFF)

    makeWiggles

        Write "wiggle" coverage files with 100-bp window size. Note:

        this REQUIRES that the --chromSizes parameter be included!

        (default: OFF)

    makeAllBrowserTracks

        Write both the "wiggle" and the splice-junction bed files

        (default: OFF) [Depends: makeJunctionBed, makeWiggles]

    calcDetailedGeneCounts

        Calculate more detailed read counts for each gene, counting

        the number of reads that cover introns, cross-strand, etc

        (default: OFF)

AUTHORS:

    Stephen W. Hartley, Ph.D. stephen.hartley (at nih dot gov)

LEGAL:

    This software is "United States Government Work" under the terms

    of the United States Copyright Act. It was written as part of

    the authors' official duties for the United States Government

    and thus cannot be copyrighted. This software is freely

    available to the public for use without a copyright notice.

    Restrictions cannot be placed on its present or future use.

    Although all reasonable efforts have been taken to ensure the

    accuracy and reliability of the software and data, the National

    Human Genome Research Institute (NHGRI) and the U.S. Government

    does not and cannot warrant the performance or results that may

    be obtained by using this software or data. NHGRI and the U.S.

    Government disclaims all warranties as to performance,

    merchantability  or fitness for any particular purpose.

    In any work or product derived from this material, proper

    attribution of the authors as the source of the software or data

    should be made, using "NHGRI Genome Technology Branch" as the

    citation.

    NOTE: This package includes (internally) the sam-1.113.jar

    library from picard tools. That package uses the MIT license,

    which can be accessed using the command:

     java -jar thisjarfile.jar help samjdkinfo

Done. (Wed Dec 09 17:02:21 JST 2020)

Rでも動作するが、ここでは説明しない(マニュアル参照)。



ラン

QoRTs.jarのQCコマンドを使う。STARでマッピングしたbamを分析してみる。

java -Xmx4G -jar QoRTs.jar QC --generatePlots input.bam chr1.gtf output

シングルエンドなら--singleEndedをつけ、strand specificシーケンスなら --strandedをつける。詳細は上のマニュアルメッセージを参照。qualityに41以上があったと怒られたら、データがQ+64のfastqと思われる。上のマニュアル通り--adjustPhredScore 31をつけておく。それでもエラーが出るなら、fastaのヘッダー名とgtfのchr名が違わないかなどチェックする。



f:id:kazumaxneo:20180227123552j:plain

f:id:kazumaxneo:20180227123604j:plain

f:id:kazumaxneo:20180227123620j:plain

f:id:kazumaxneo:20180227124228j:plain

f:id:kazumaxneo:20180227123647j:plain

f:id:kazumaxneo:20180227123658j:plain

f:id:kazumaxneo:20180227123704j:plain

分析項目は多岐に渡ります。詳細は本体のダウンロードにあるPDFマニュアルを参照してください。



シーケンスリードも指定して分析。

java -Xmx4G -jar QoRTs.jar QC --generatePlots input.bam --genomeFA genome.fa.gz --rawfastq rawreads.1.fq.gz,rawreads.2.fq.gzArabidopsis_thaliana.TAIR10.chr1.gtf.gz output





複数の結果を統合するにはmergeCountsコマンドかmergeCountsコマンドを使う。







引用

QoRTs: a comprehensive toolset for quality control and data processing of RNA-Seq experiments

Stephen W. HartleyEmail author and James C. Mullikin

BMC Bioinformatics201516:224





RNA-Seq Blog

http://www.rna-seqblog.com/qorts-a-comprehensive-toolset-for-quality-control-and-data-processing-of-rna-seq-experiments/
